198 Rockwell Automation Publication 520-UM001I-EN-E - July 2016
Appendix B Accessories and Dimensions
Optional Accessories and Kits

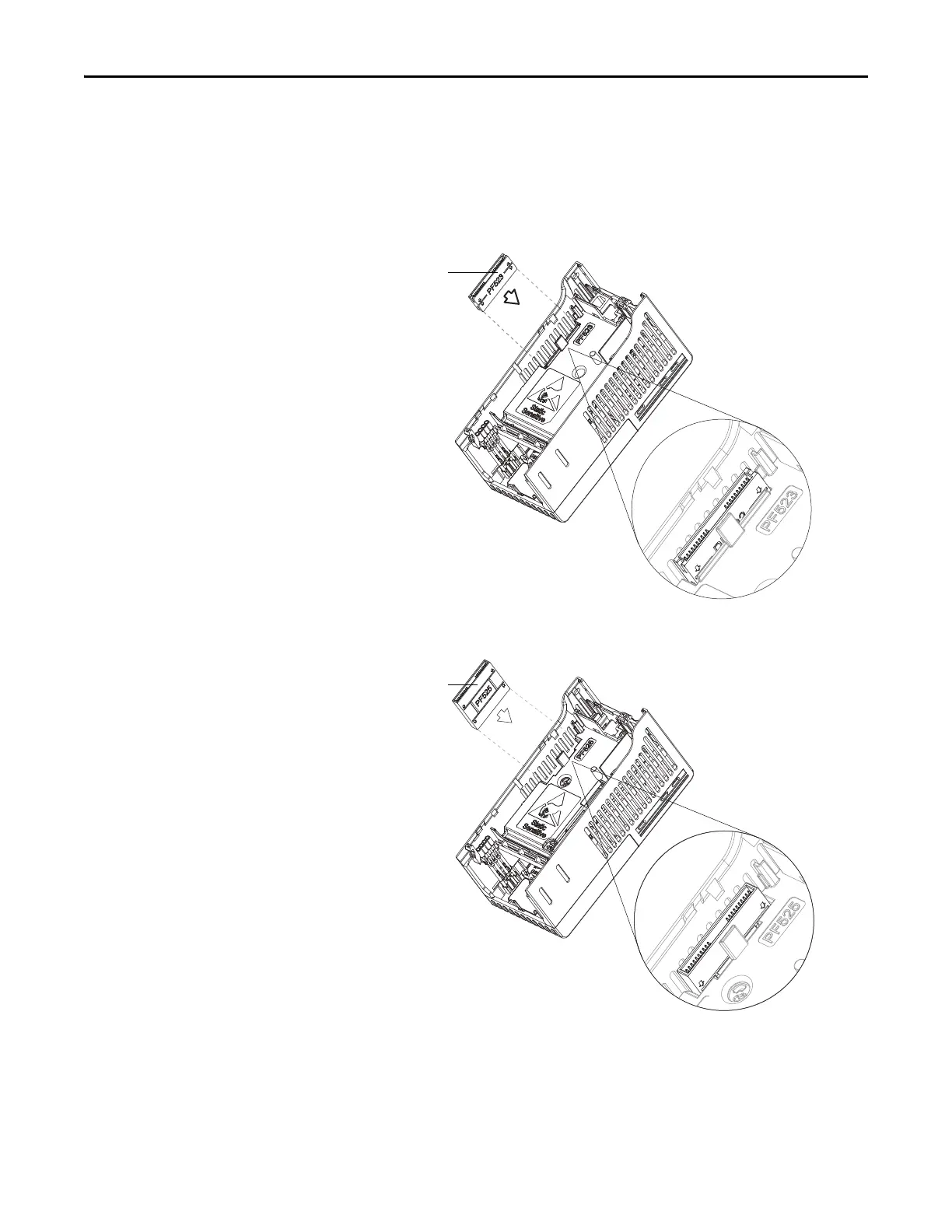

Installing a Communication Adapter
1. Insert the communication adapter interface connector into the Control
Module. Make sure the indicator line on the connector is aligned with the
surface of the Control Module.
2. Align the connectors on the communication adapter to the
communication adapter interface connector, then push the back cover
down.
Communication
adapter interface
connector
For PowerFlex 523
For PowerFlex 525
Communication
adapter interface
connector
