Appendix J PowerFlex 525 PM Motor Configuration
Motor Data

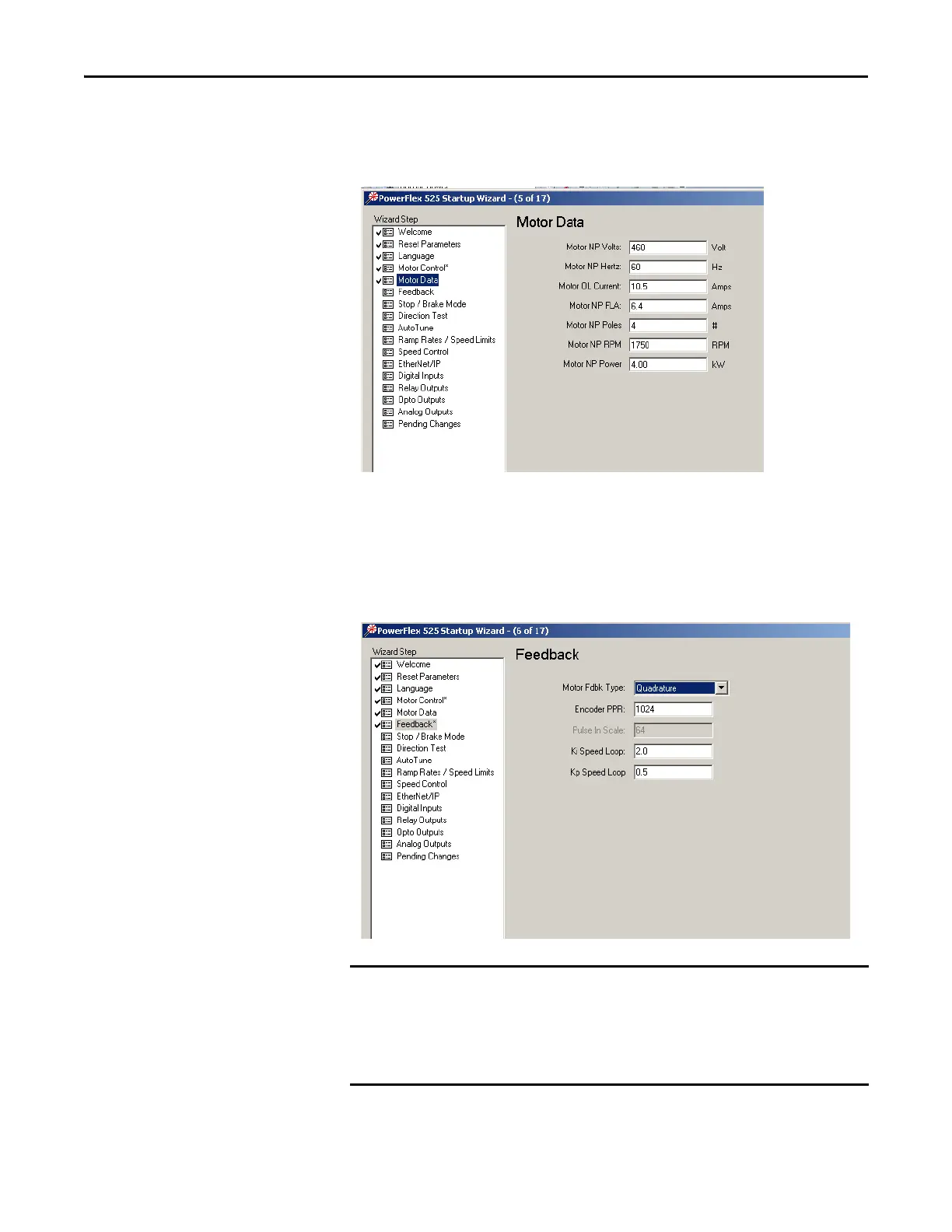

Key in the details of your Motor Nameplate.
Feedback
If you are configuring a closed loop PM motor control, key in the details of your
incremental encoder.
IMPORTANT
Note the following:
• PowerFlex 525 drive only supports incremental AB encoder (25-ENC-1).
• Motor Feedback Type can be “Quadrature” or “Quad Check”.
• Only Interior Permanent magnet motor (iPM) is supported for closed loop
control.
