Rockwell Automation B Series User Manual

30 Rockwell Automation Publication 520-UM001I-EN-E - July 2016
Chapter 1 Installation/Wiring

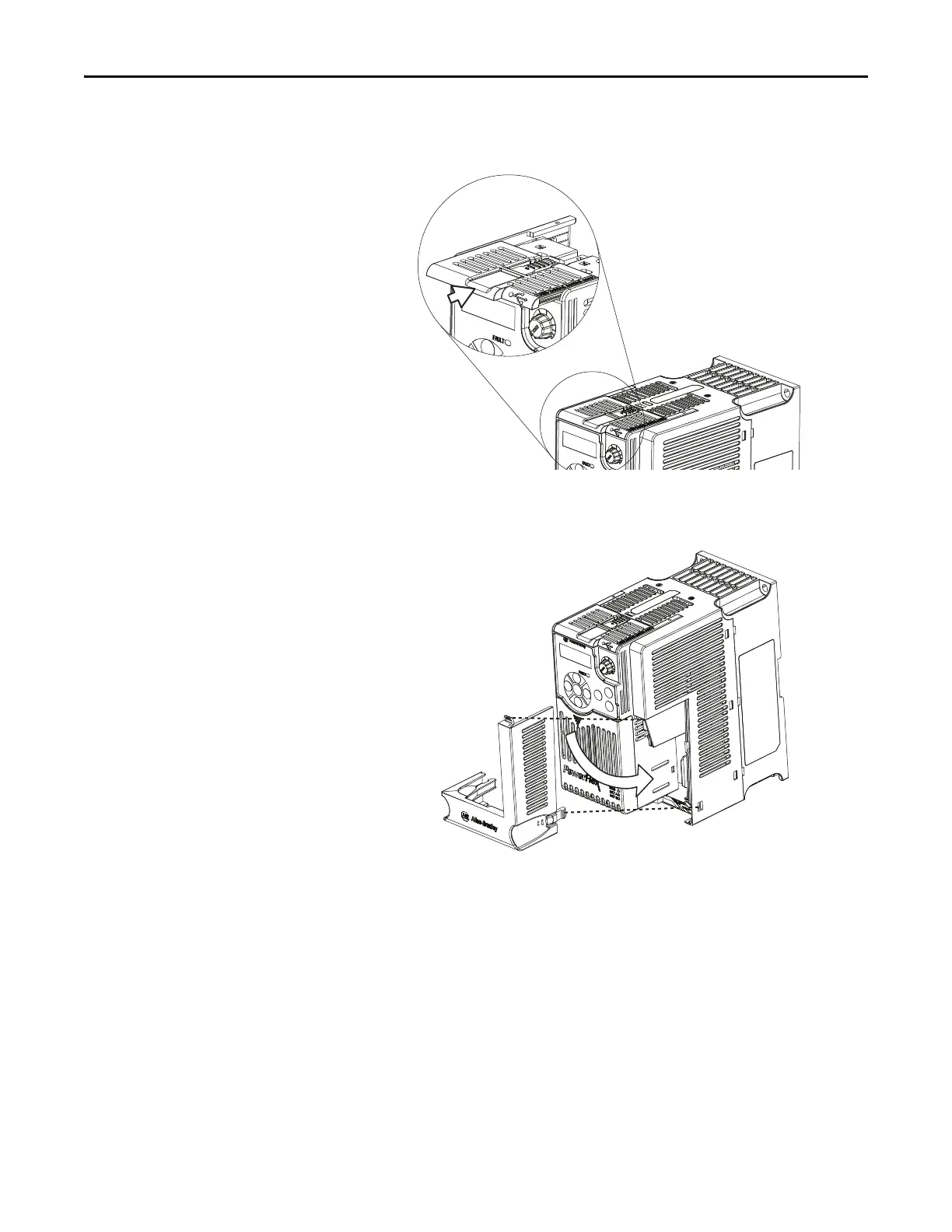

2. Push the top cover of the Control Module towards the Power Module to
lock it.
3. Insert the catch at the top of the frame cover into the Power Module, then
swing the frame cover to snap the side catches onto the Power Module
(Frames B...E only).
