Chapter 4 FactoryTalk Batch Recipe Editor introduction
52
Use the following instructions to open the FactoryTalk Batch Recipe Editor.
To open the FactoryTalk Batch Recipe Editor:
1. Select Start > Rockwell Software > Recipe Editor. A blank FactoryTalk
Batch Recipe Editor window displays. The Recipe Editor Login dialog
box also opens if security is configured.
2. Enter a FactoryTalk Security user name and password and select OK. If
a recipe verification box displays, select Yes to verify all the recipes in
the Area Model’s recipe directory.
3. When this is complete, select Close.
The FactoryTalk Batch Recipe Editor component allows you to construct
recipes by sequencing phases graphically. The actual phase logic resides in the
process control device and is configured separately using controller-specific
programming software. The phases are configured in the FactoryTalk Batch
Equipment Editor.

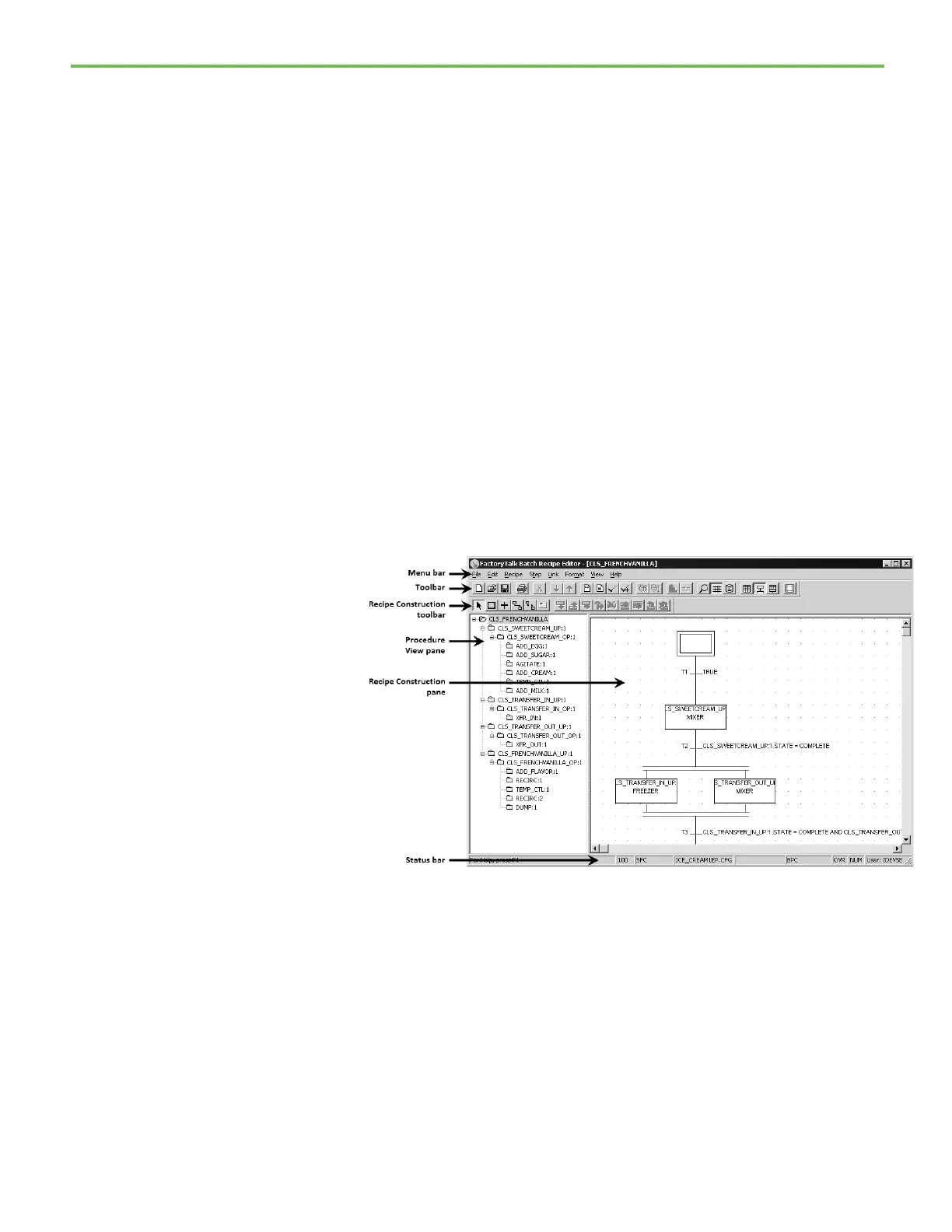

The FactoryTalk Batch Recipe Editor window consists of the following
components:
• The Procedure View pane occupies the left side of the FactoryTalk
Batch Recipe Editor window and contains a hierarchical list of the
current recipe components. Selecting a component from the list
displays the corresponding step(s) in the Recipe Construction pane.
• The Recipe Construction pane occupies the right side of the
FactoryTalk Batch Recipe Editor window and is used to construct
master recipes. The Recipe Construction pane allows you to construct
and view recipe structures using a sequential function chart (SFC) or a
table. Both the SFC View and the Table View can be displayed
Open the FactoryTalk Batch
Recipe Editor
Editor window
