Chapter 7 FactoryTalk Batch ActiveX controls introduction
95

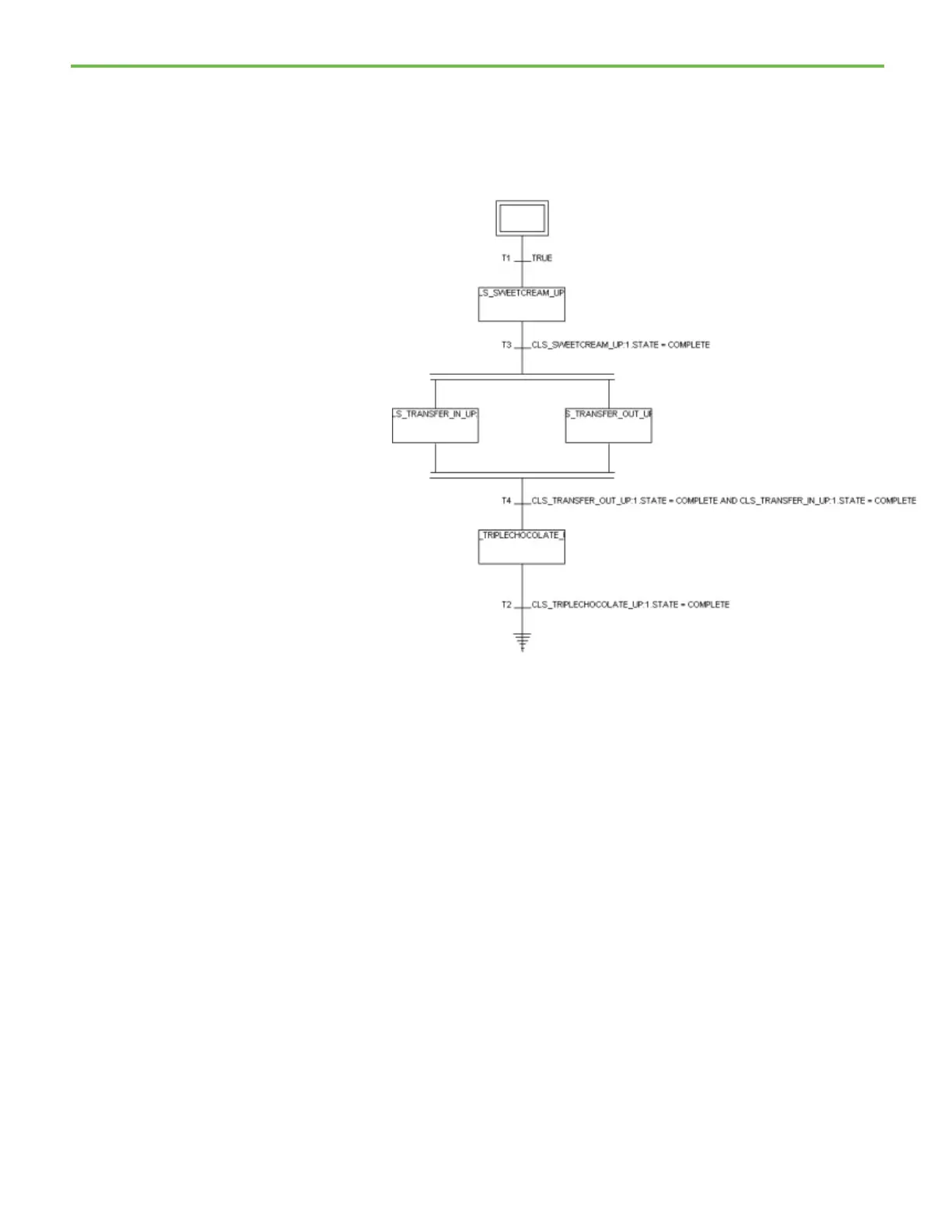

The ProcedureView control’s SFC view provides a graphic representation of
recipe logic flow. Steps are executed in order from top to bottom through the
SFC. The SFC structure is navigated by double-clicking a recipe step to
navigate downward through the recipe hierarchy, or by double-clicking an
initial step to navigate upward through the recipe hierarchy.
The ProcedureView ActiveX Control includes a shortcut menu that can be
accessed by right-clicking anywhere within the control. The shortcut menu
allows you to log in the View Security, and to command and view control
recipes that have been added to the Batch List. The available items on the
shortcut menu are specific to the recipe step or step transition that was right-
clicked, and is disabled if the menu item is not valid for the selected element.
If the right-click does not occur on a recipe step or step transition, the
shortcut menu items are applicable to the recipe level currently being
displayed.
Like the Procedure as Table and Procedure as SFC windows located within the
FactoryTalk Batch View, the operator uses the ProcedureView to command
and view control recipes that have been added to the Batch List.
To use the ProcedureView ActiveX Control:
ProcedureView shortcut
menu
control
