Chapter 4 FactoryTalk Batch Recipe Editor introduction
58
arrange functionality of the FactoryTalk Batch Recipe Editor greatly
simplifies both the recipe creation and modification processes and
also increases the overall readability of the recipe.
Use the following instructions to add a parallel step in the operation level.
To add a parallel step in the sample operation level:
1. While still in the CLS_SWEETCREAM_OP:1 operation, select the
TEMP_CTL:1 step.

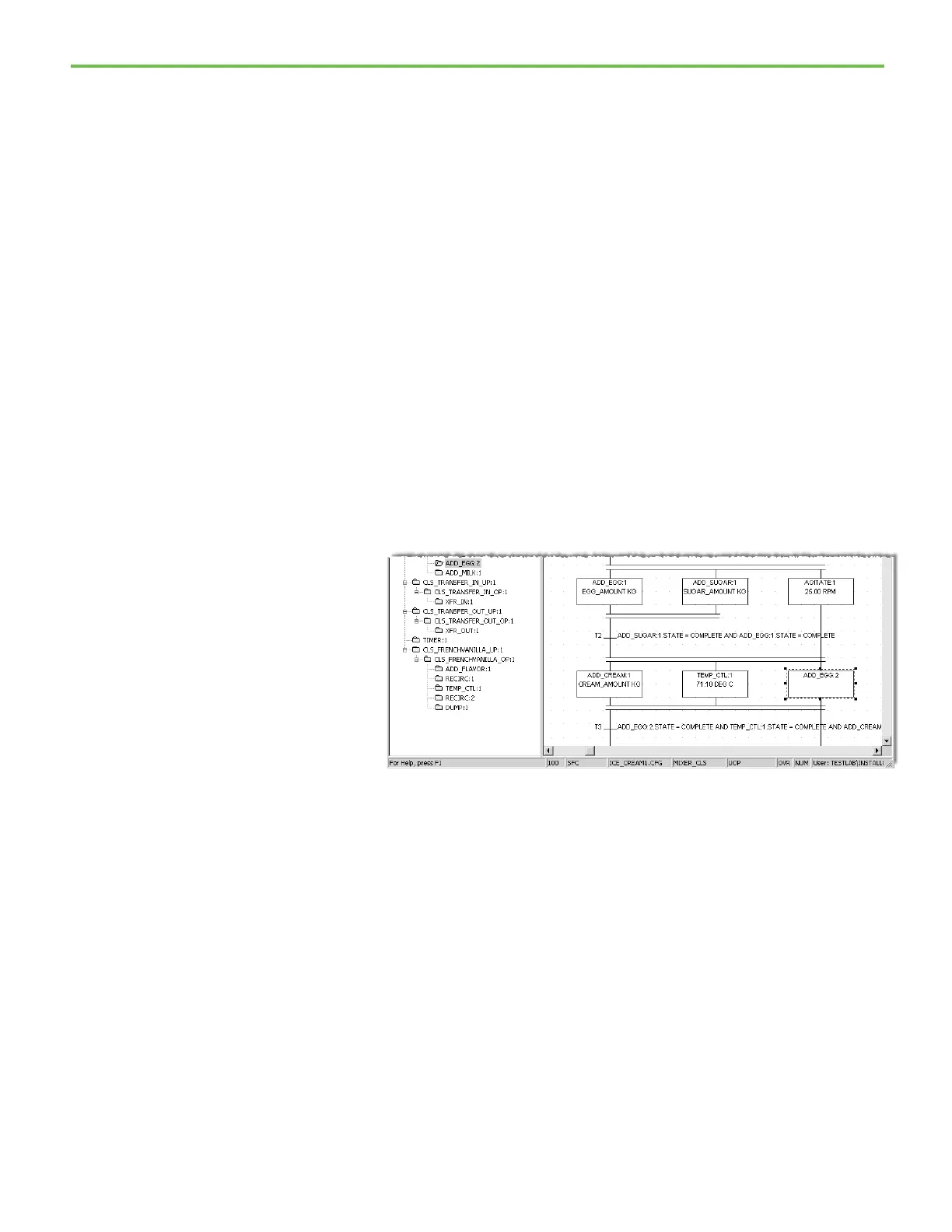

2. Select Add Parallel. A new step is added in parallel to the selected step
and the Select Phase dialog box opens.
3. Select ADD_EGG, and then select OK. The new step is now defined as
ADD_EGG:2 and the transition below the step is automatically re-
defined as ADD_EGG:2.STATE = COMPLETE AND
TEMP_CTL:1.STATE = COMPLETE AND ADD_CREAM:1.STATE =
COMPLETE to reflect the new parallel structure.
Once a step is added to an operation, you can assign formula values, which
involves specifying the values and selecting the parameter to display for the
selected step.
To assign step formula values to the sample operation level:
1. While still in the CLS_SWEETCREAM_OP:1 operation, select the
ADD_EGG:2 step.
2. Select Value Entry. The Parameter Value Entry/Report Limit Entry
dialog box opens listing the parameters associated with the step. The
only parameter is ADD_AMOUNT.
Add a parallel step in the
sample operation level
Assign step formula values
to the sample operation
level
