Chapter 5 FactoryTalk Batch View introduction
75

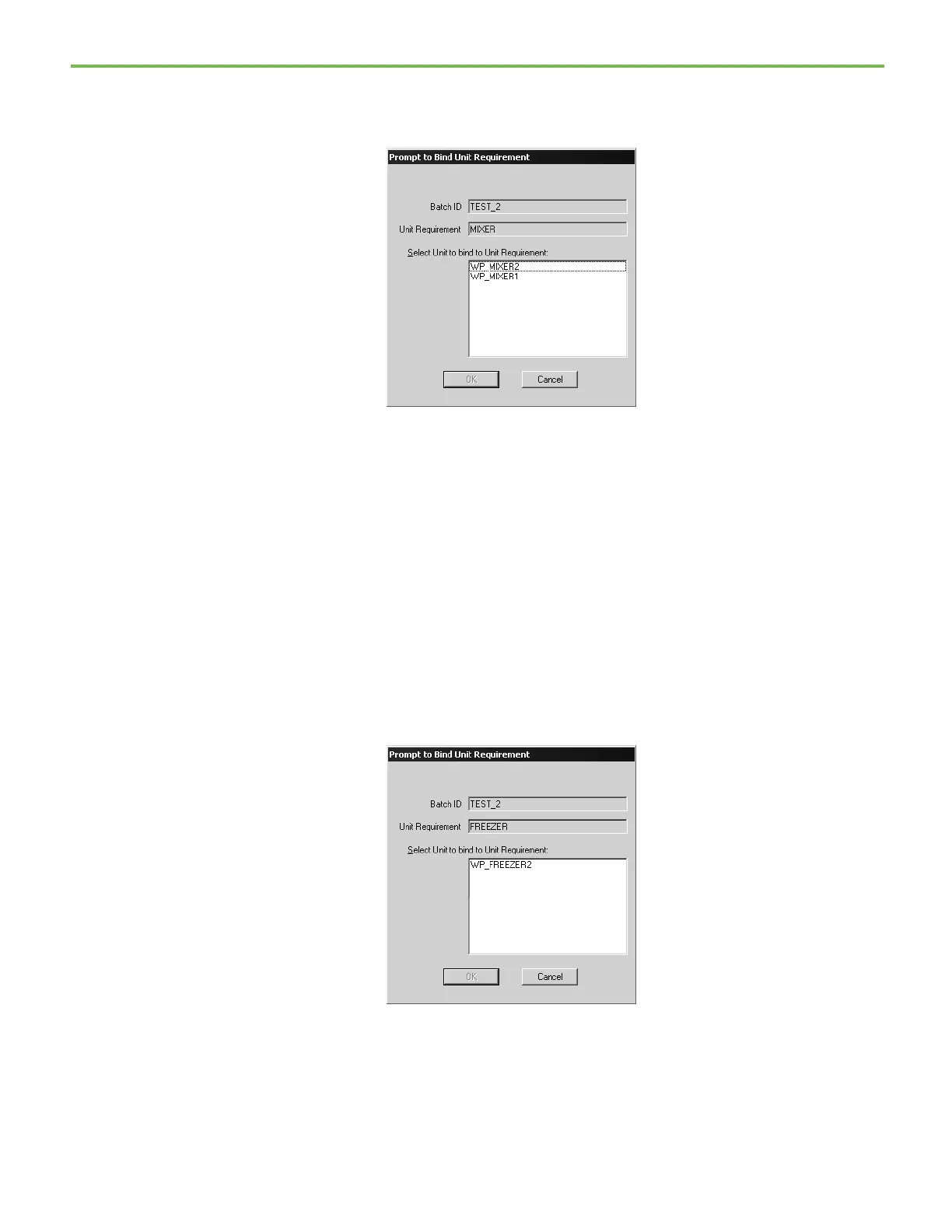

4. Double-click the TEST_2 batch. The Prompt to Bind Unit Requirement
dialog box opens indicating that WP_MIXER1 and WP_MIXER2 are
the mixers available to bind to the recipe.
5. Select WP_MIXER2 from the Select Unit to bind to Unit Requirement
list, and then select OK.
6. Select the Procedure as SFC button and notice that the batch
continues to run using WP_MIXER2. When the batch reaches the
transition following the CLS_SWEETCREAM unit procedure, the
Unacknowledged Prompts button starts to flash again.
7. Select the flashing Unacknowledged Prompts button. The Batch List
opens indicating that the operator must select the unit to use as the
FREEZER.
8. Double-click the TEST_2 batch. The Prompt to Bind Unit Requirement
dialog box opens indicating that WP_FREEZER2 is the only freezer
available to bind to the recipe. Because you selected WP_MIXER2,
which is linked to WP_FREEZER2, that is the only option available to
you.
9. Select WP_FREEZER2 from the Select Unit to bind to Unit
Requirement list, and then select OK. The batch should run to
completion.
