Rockwell Automation PowerFlex 755TR - Install the Main Control Circuit Board

Rockwell Automation Publication 750-TG100B-EN-P - June 2019 103
Frame 7 Components Chapter 6
10. Loosen the three captive thumbscrews that secure the main control board
to the control pod chassis and remove the board.
Install the Main Control Circuit Board
Install the main control circuit board in the reverse order of removal.
10
10
–
T15 or F - 5 mm (0.19 in.)
0.45 N
•m (4 lb•in)
=
10

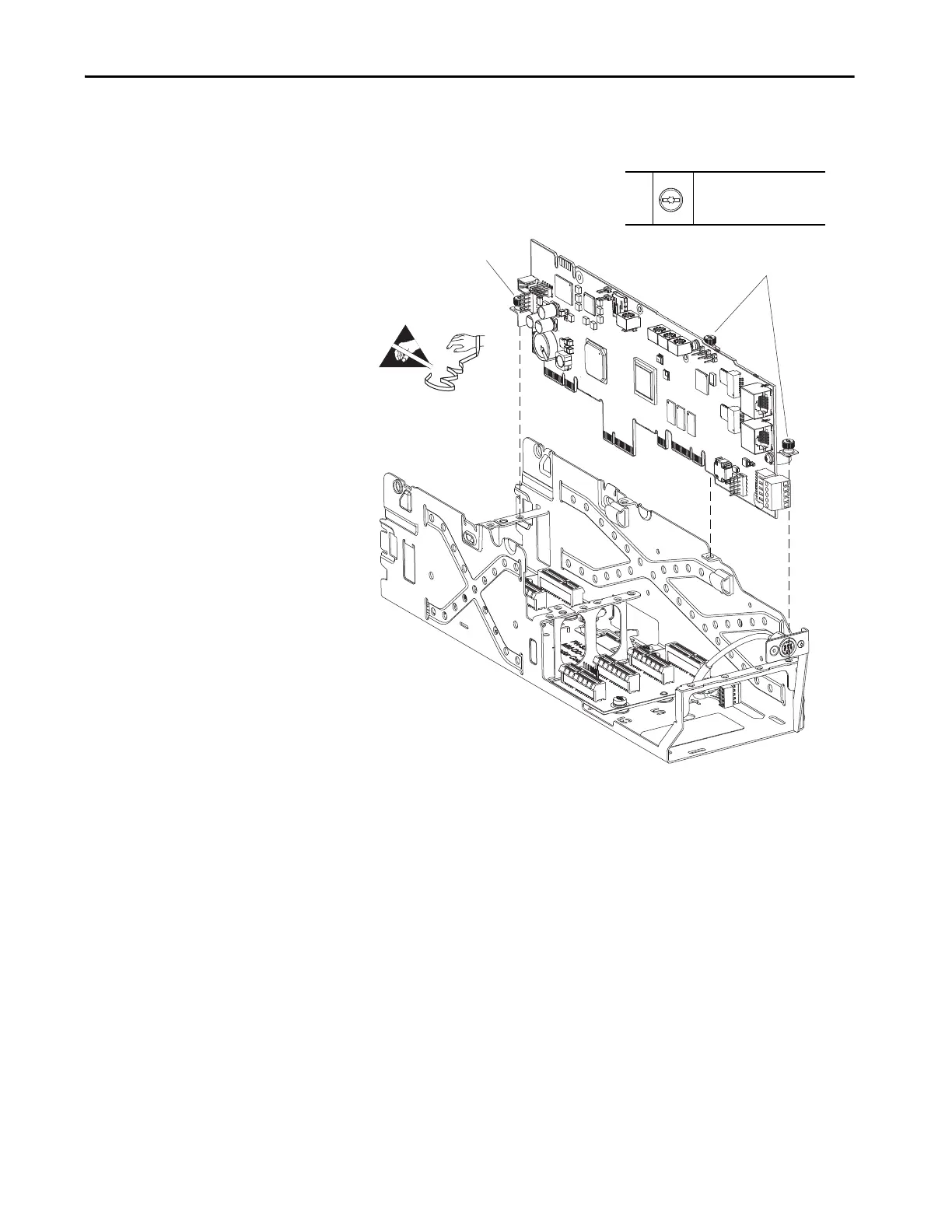

Control Pod Shown Removed from Drive and
Outer Control Pod Chassis for Clarity Only.
