Rockwell Automation PowerFlex 755TR - Power;Filter Module Heatsink Fan Assembly Replacement; Remove the Power;Filter Module Fan Assembly

Rockwell Automation Publication 750-TG100B-EN-P - June 2019 109
Frame 7 Components Chapter 6
Power/Filter Module
Heatsink Fan Assembly
Replacement
Replace a power/filter module heatsink fan assembly with kit catalog number
SK-RM-MFAN-F7.
Remove the Power/Filter Module Fan Assembly
Follow these steps to remove the power/filter module heatsink fan assembly.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.
3. Open the enclosure door.

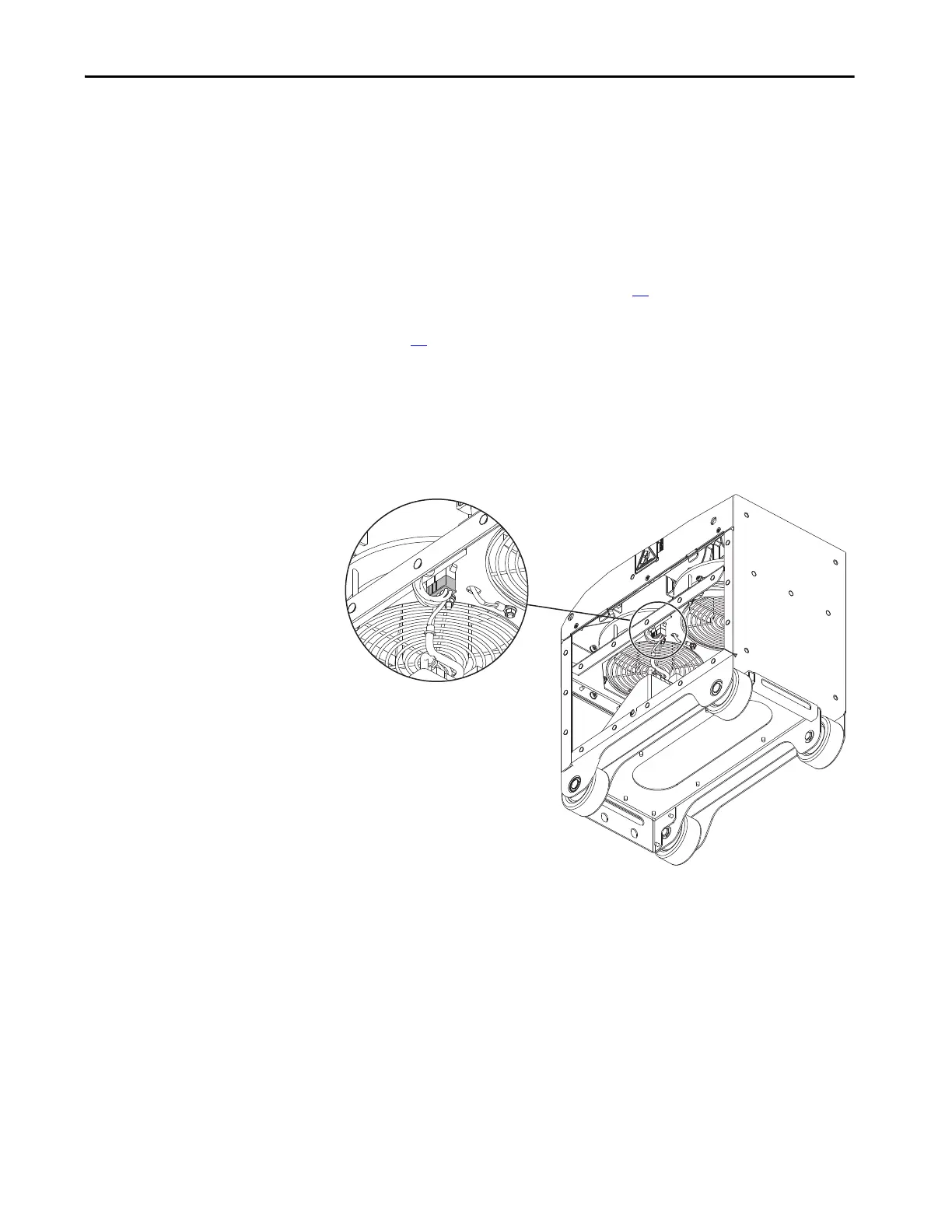

4. Below the fan assembly, reach through the opening in the front of the
power or LCL filter module chassis, and disconnect the fan power supply
connector P4 from J4 on the fan assembly.
