Rockwell Automation Publication 750-TG100B-EN-P - June 2019 213

Power Bay Components Chapter 9

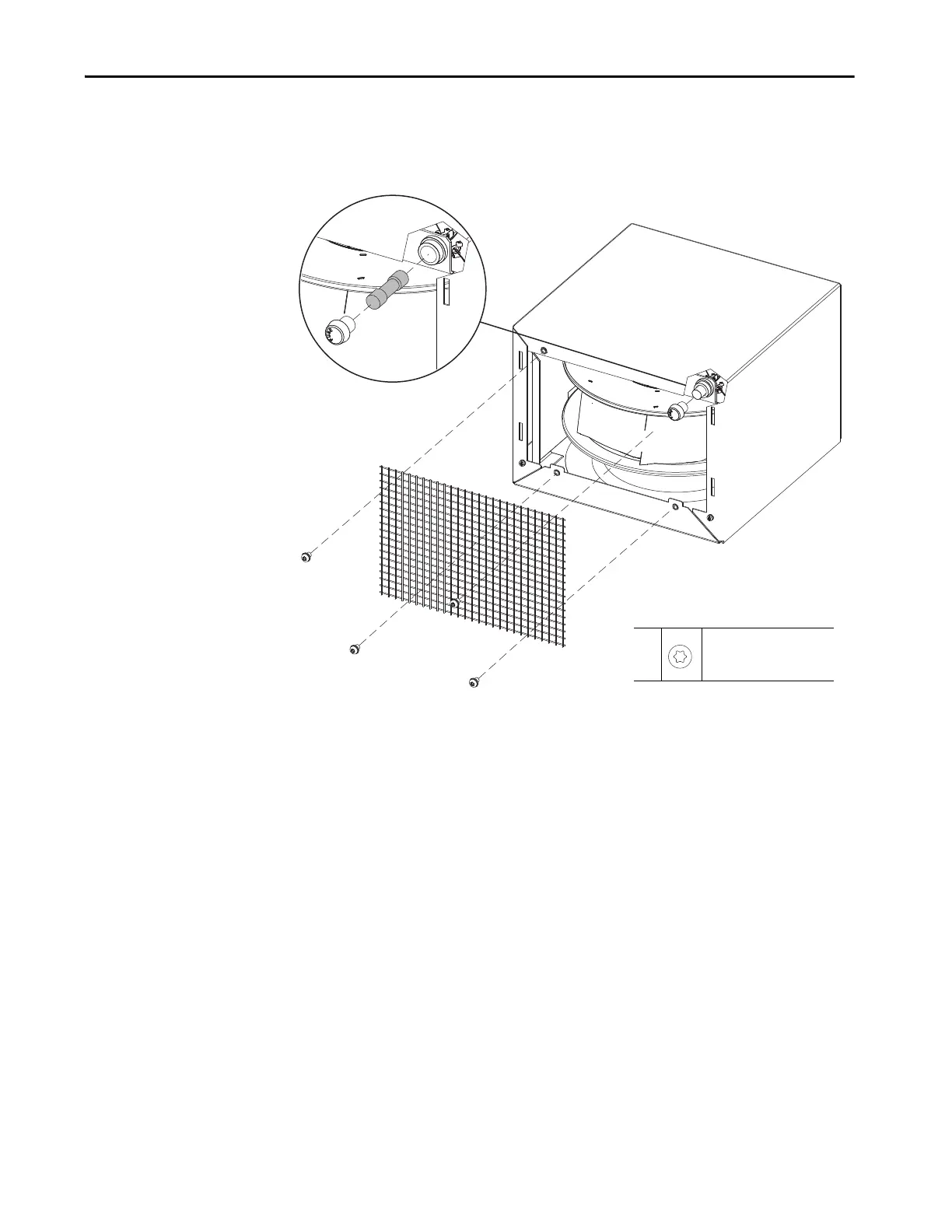

4. Remove the four M8 x 12 mm torx screws that secure the screen to the

front of the fan housing and remove the screen.

5. Unscrew the fuse holder and fuse and remove the fuse.

Install the IP54 Exhaust Fan Fuse

Install the IP54 exhaust fan fuse on a power bay in the reverse order of removal.

Tightening torque for the fuse holder is 3.4 N•m (30 lb•in).

M8 x 12 mm

T30

19.8 N•m (175 lb•in)
