Rockwell Automation PowerFlex 755TR - Install the Roof Fan 240 V Control Power Fuse

196 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 8 Input Bay Components
2. Remove power from the system. See Remove Power from the System on
page 15
.
3. Open the input bay enclosure door.
4. Remove the guard from the enclosure. See Guard Removal on page 183
.

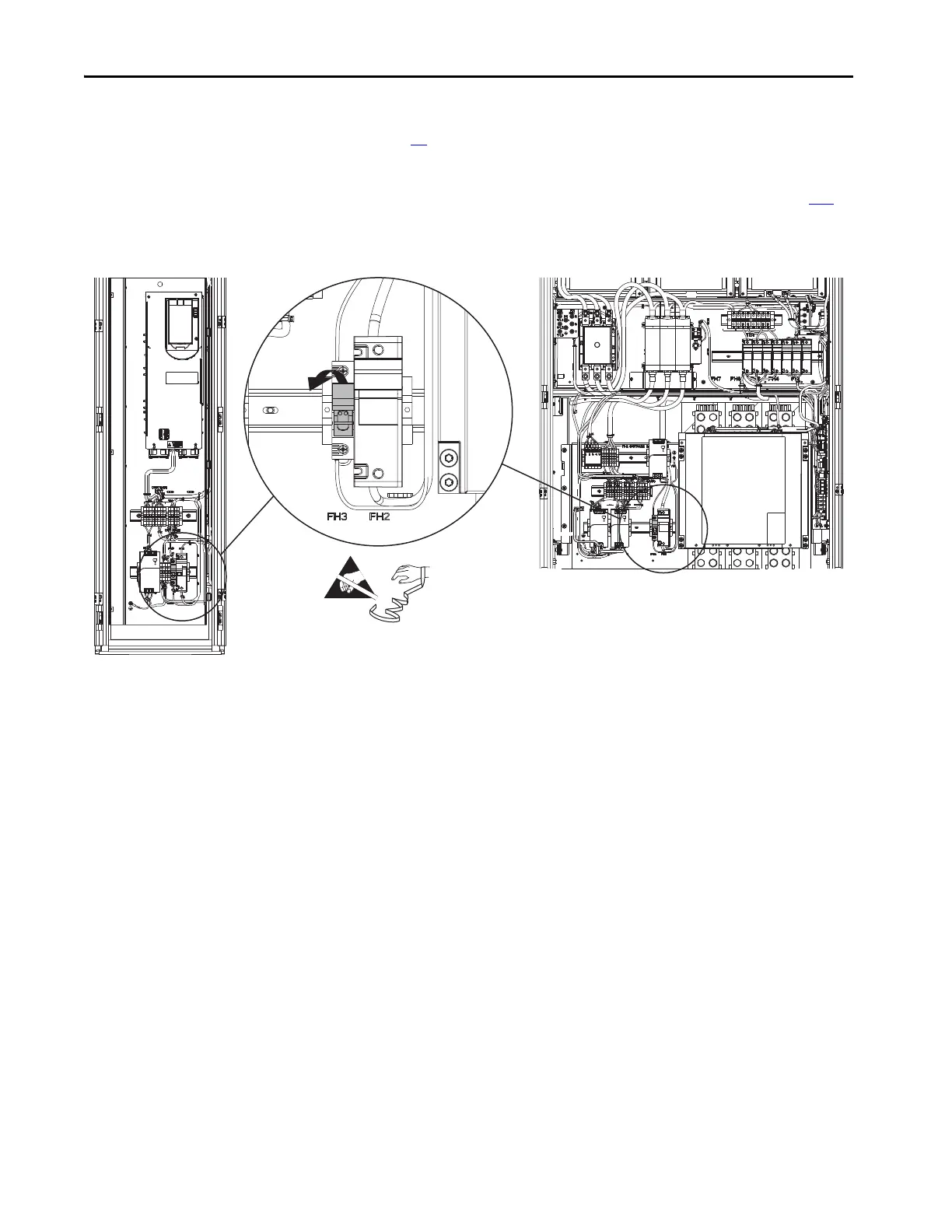

5. Pull out on the tab on the fuse holder and remove the fuse.
Install the Roof Fan 240V Control Power Fuse
Install the roof fan 240V control power fuse in the reverse order of removal.
Control Bay Frame 10 Input Bay
=
