234 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 9 Power Bay Components

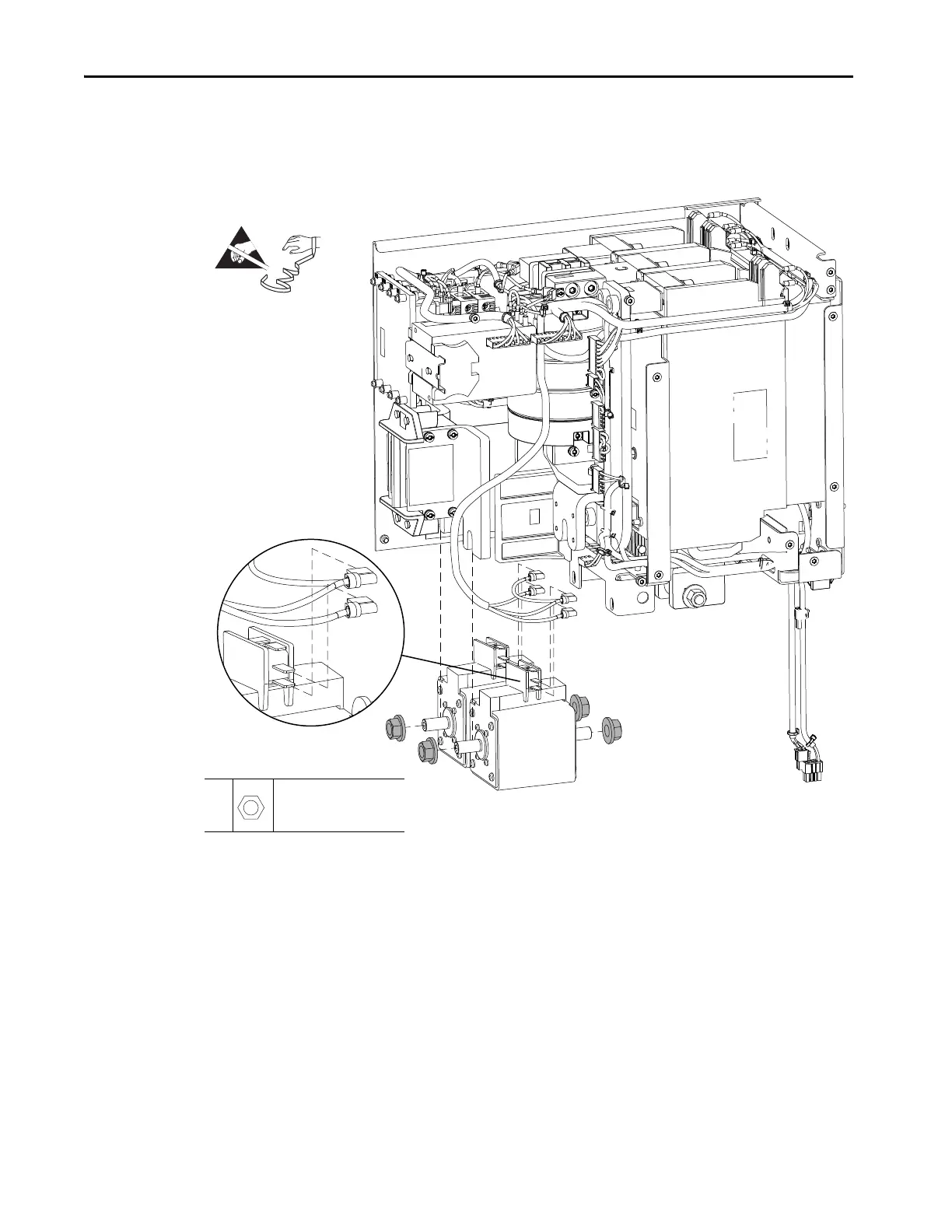

5. Remove the four M12 hex nuts that secure the fuses to the bus bars.
6. Pull the fuses out of the chassis and disconnect the signal cables from the
indicator switches.
Install the DC Precharge Fuses
Install the DC precharge fuses in the reverse order of removal.
5
M12
19 mm
45.0 N•m (398 lb•in)
Side and Back Panels Not Shown for Clarity Only.
=
