142 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 7 Control Bay and Control Pod Components
IP21/IP54 Roof Vent Filter
Replacement
Replace an IP21/IP54 roof vent filter on a control or input bay with kit catalog
number SK-RM-IBFAN-54FLTR1.
Remove the IP21/IP54 Roof Vent Filter
Follow these steps to remove the IP21/IP54 roof vent filter.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.

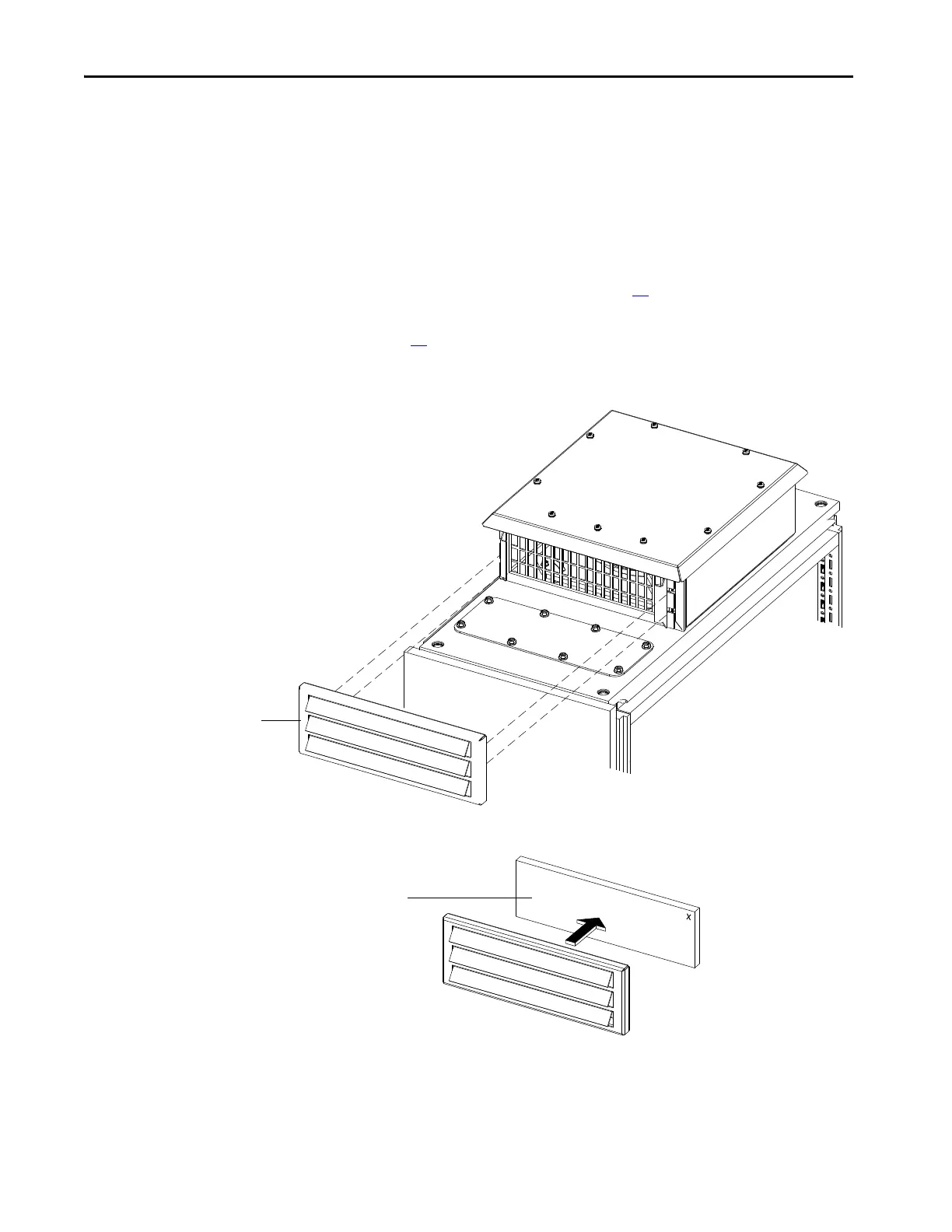

3. Slide the vent up to release the tabs from the slots in the vent assembly and
remove the vent.
4. Remove the filter from the vent cover.
