Rockwell Automation Publication 750-TG100B-EN-P - June 2019 107

Frame 7 Components Chapter 6

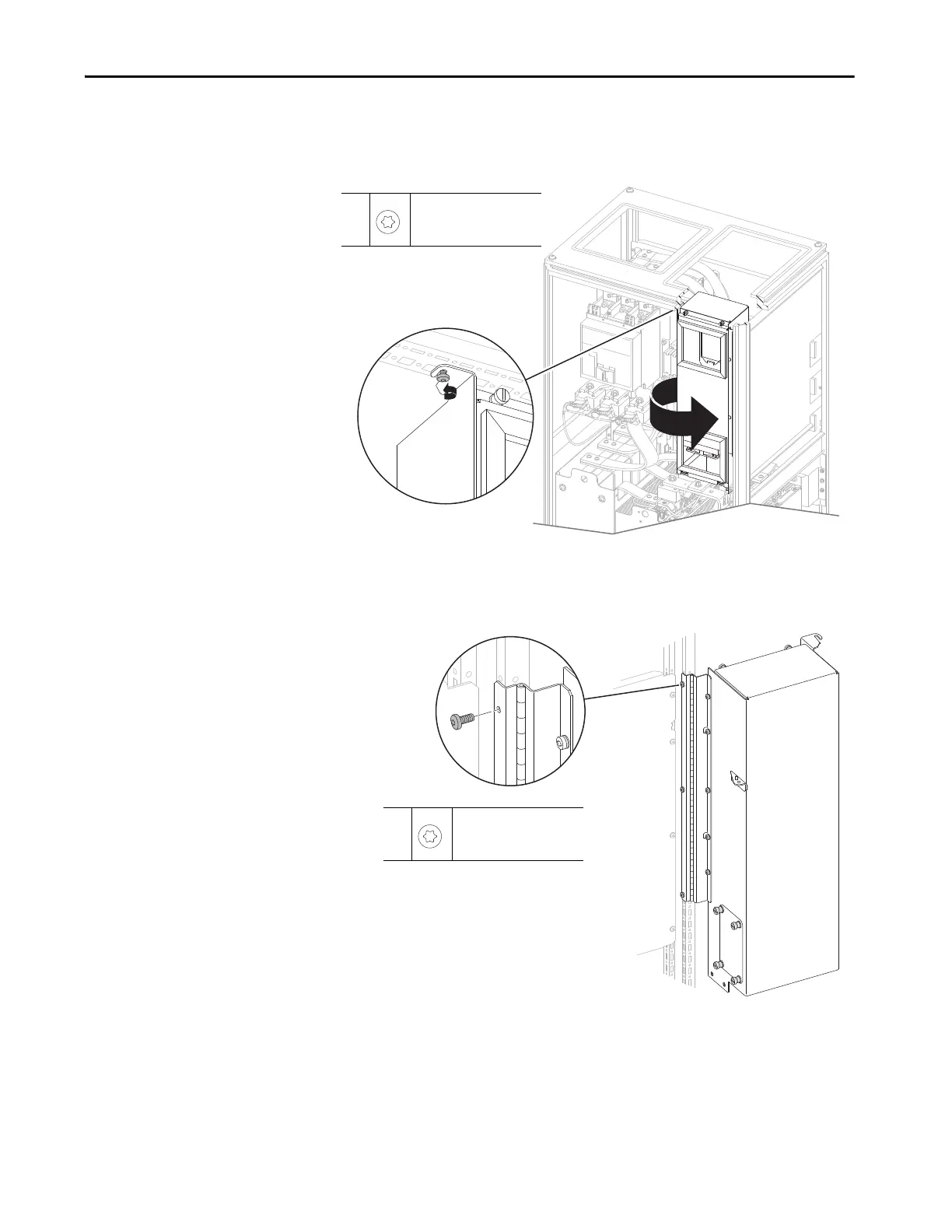

17. Loosen the M5.5 x 13 mm torx screw that secures the control pod

assembly to the chassis and rotate the control pod assembly out from the

enclosure.

18. While supporting the control pod assembly, remove the three M5.5 x

13 mm torx screws that secure the hinged mounting bracket to the inside

edge of the enclosure and remove the control pod assembly.

M5.5 x 13 mm

T25

4.8 N•m (42 lb•in)

M5.5 x 13 mm

T25

4.8 N

•m (42 lb•in)
