Chapter 6 Frame 7 Components

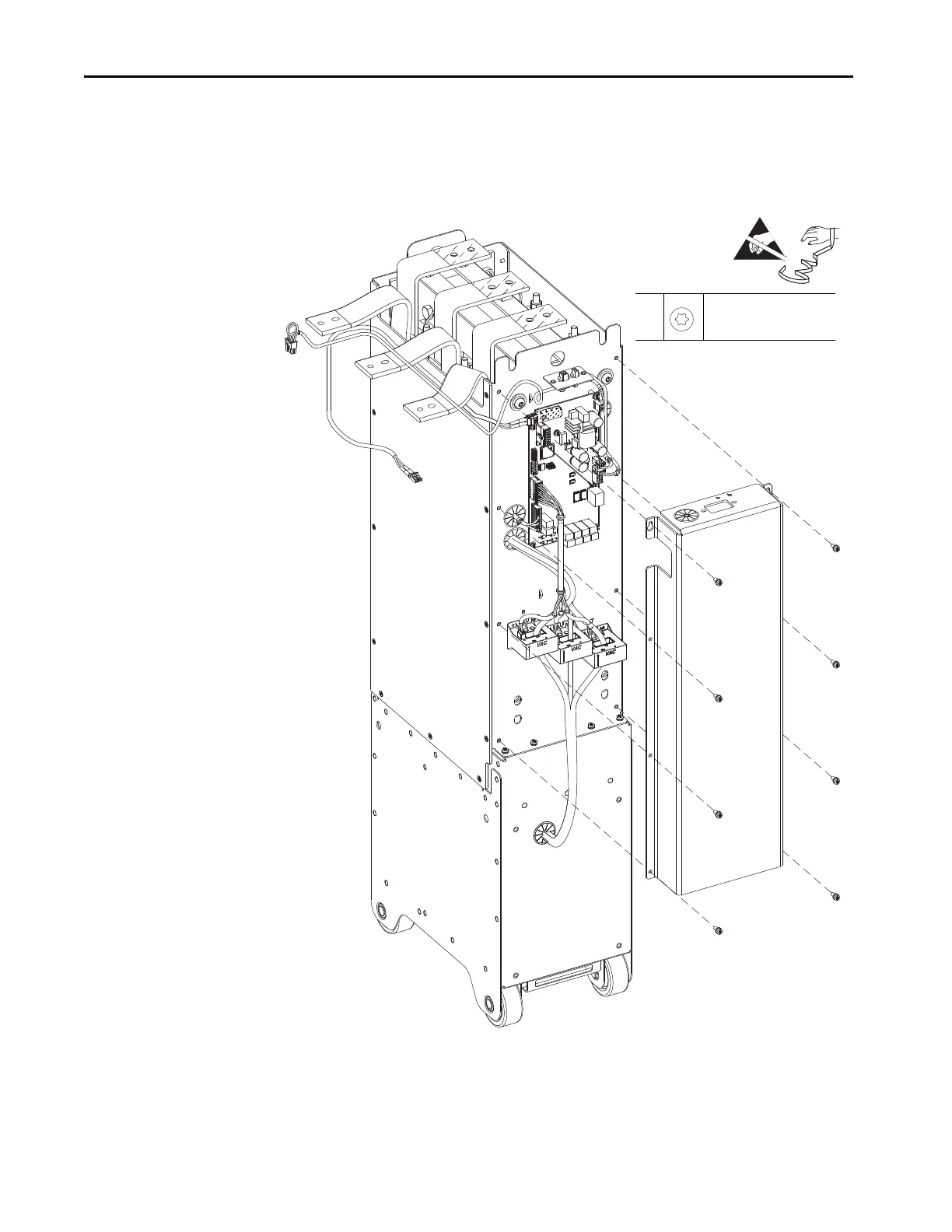

7. Remove the eight M5 x 12 mm torx screws that secure the protective cover
to the LCL filter module chassis and remove the cover.
8. Route the 24V DC control power supply wire harness and connector P3
through the grommet on the cover.
7
M5 x 12 mm
T25
2.6 N•m (23 lb•in)
