Control Bay and Control Pod Components Chapter 7

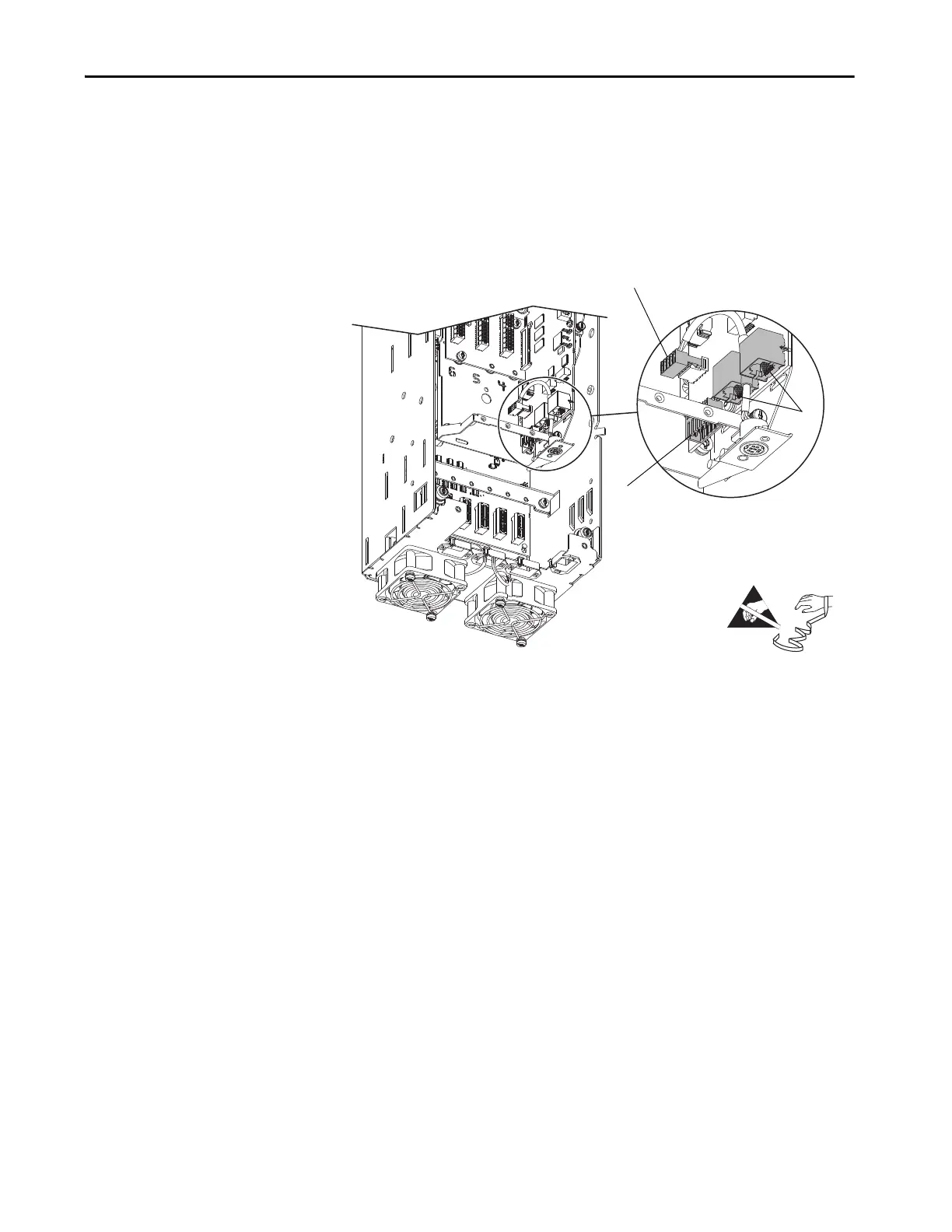

7. Disconnect the HIM plug-in terminal block for the mini-DIN connector
on the control board.
8. Disconnect any Ethernet cables from the ports on the bottom of the main
control board.
9. Disconnect the plug-in terminal block (TB1) on the bottom of the main
control board.
7
8
9
=
