188 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 8 Input Bay Components

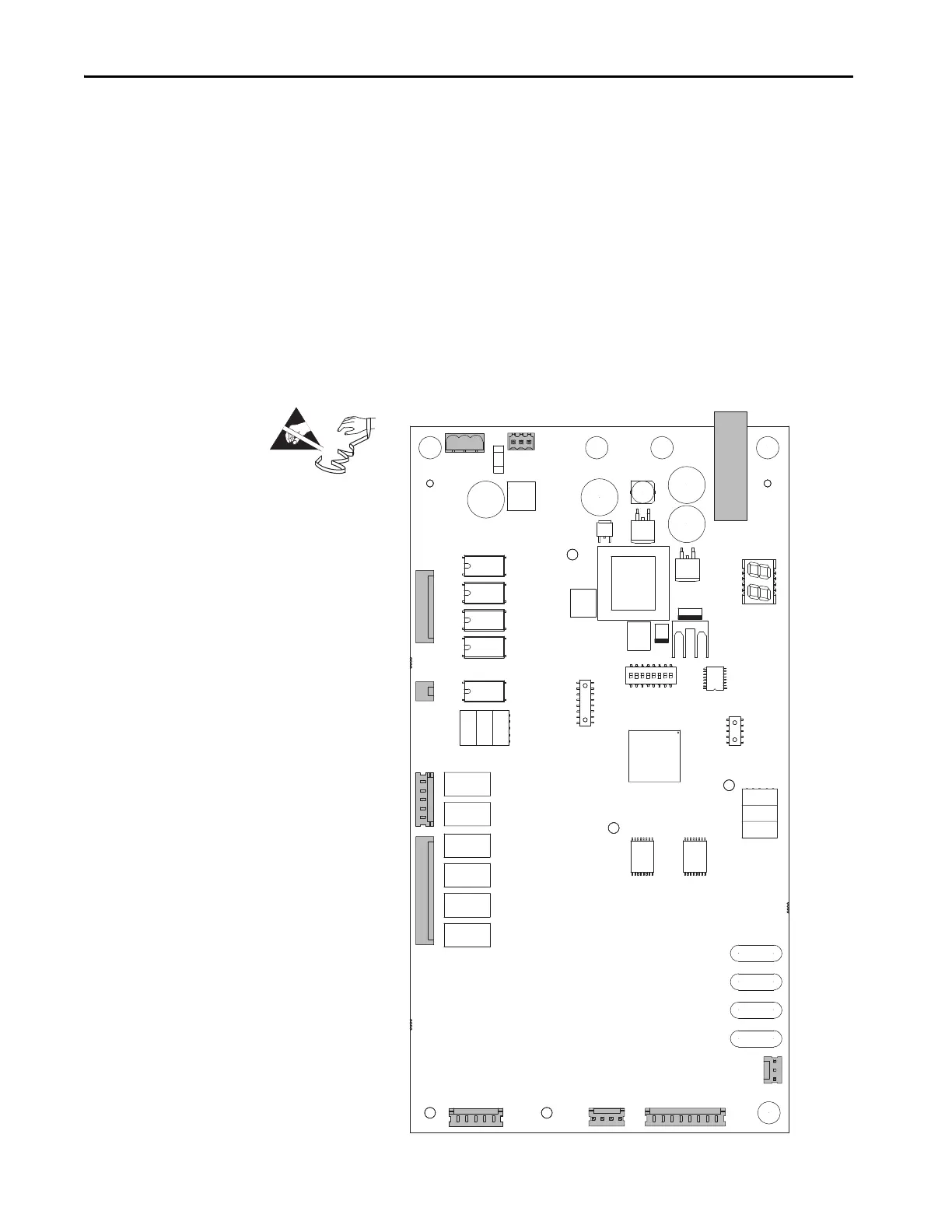

9. Disconnect these wire harness connectors from the connectors on the AC

precharge circuit board and remove the board and mounting panel from

the drive:

•P1 from J1

•P2 from J2

•P3 from J3

•P4 from J4

•P5 from J5

•P6 from J6

•P7 from J7

• P11 from J11

• P12 from J12, if present

57 132468

J11

J12

ACP

810
