260 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 9 Power Bay Components

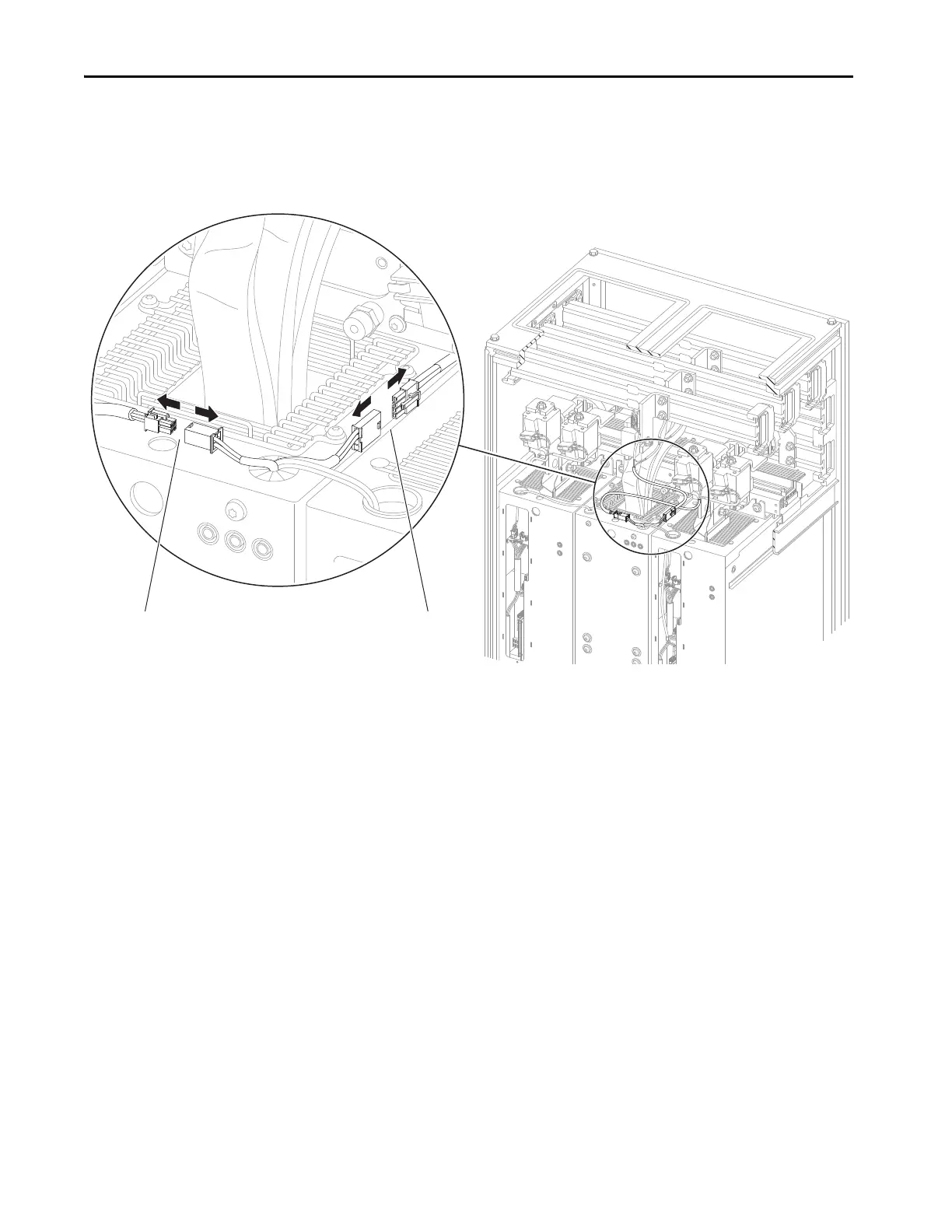

9. Disconnect the 240V AC control power wire harness connector P4 from

P2 on the LCL filter module.

10. Disconnect the AC input fuse wire harness connector P5 from P1 on the

LCL filter module.
