Rockwell Automation Publication 750-TG100B-EN-P - June 2019 307

System Schematics Appendix A

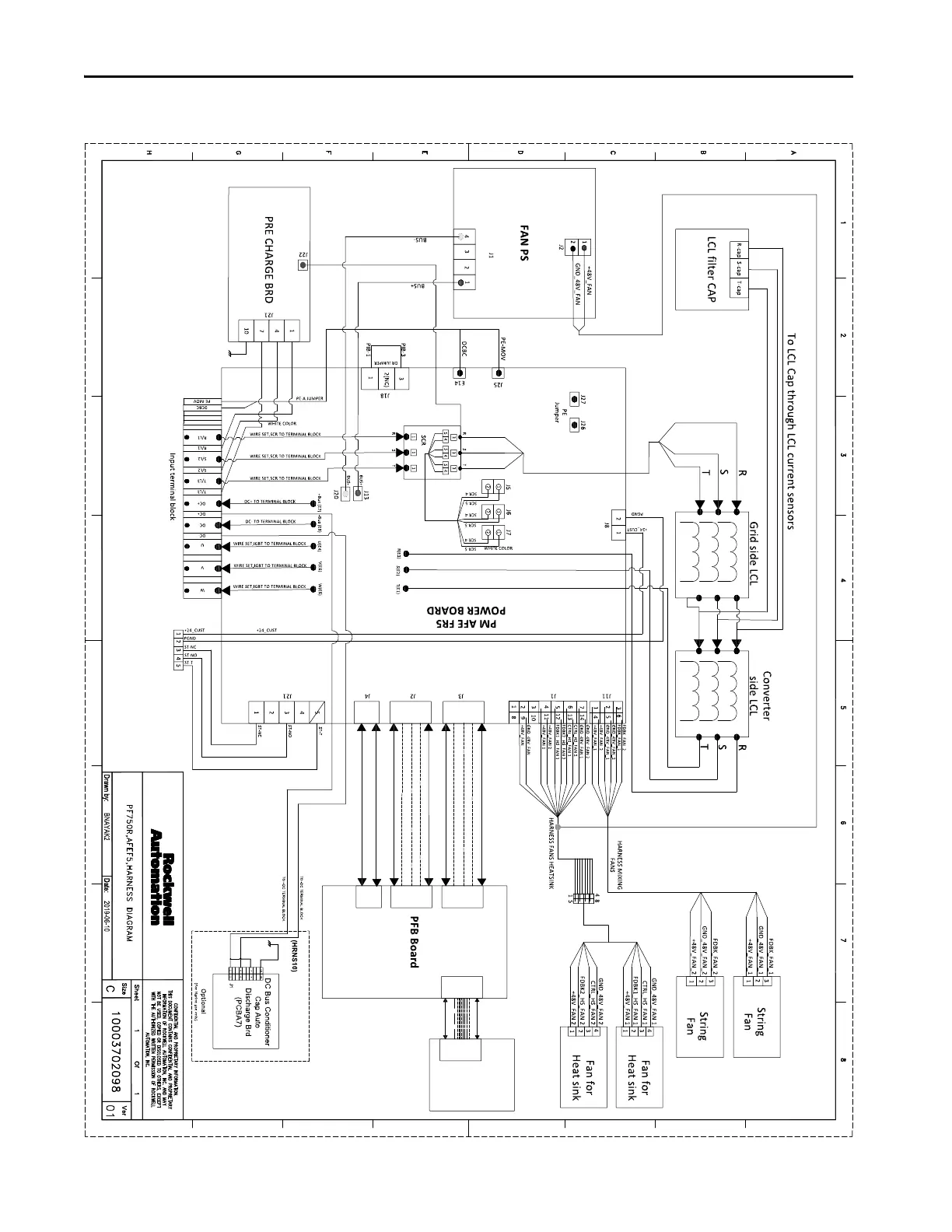

Figure 30 - PowerFlex 755TL/TR Frame 5 Drive
