Rockwell Automation Publication 750-TG100B-EN-P - June 2019 315

System Schematics Appendix A

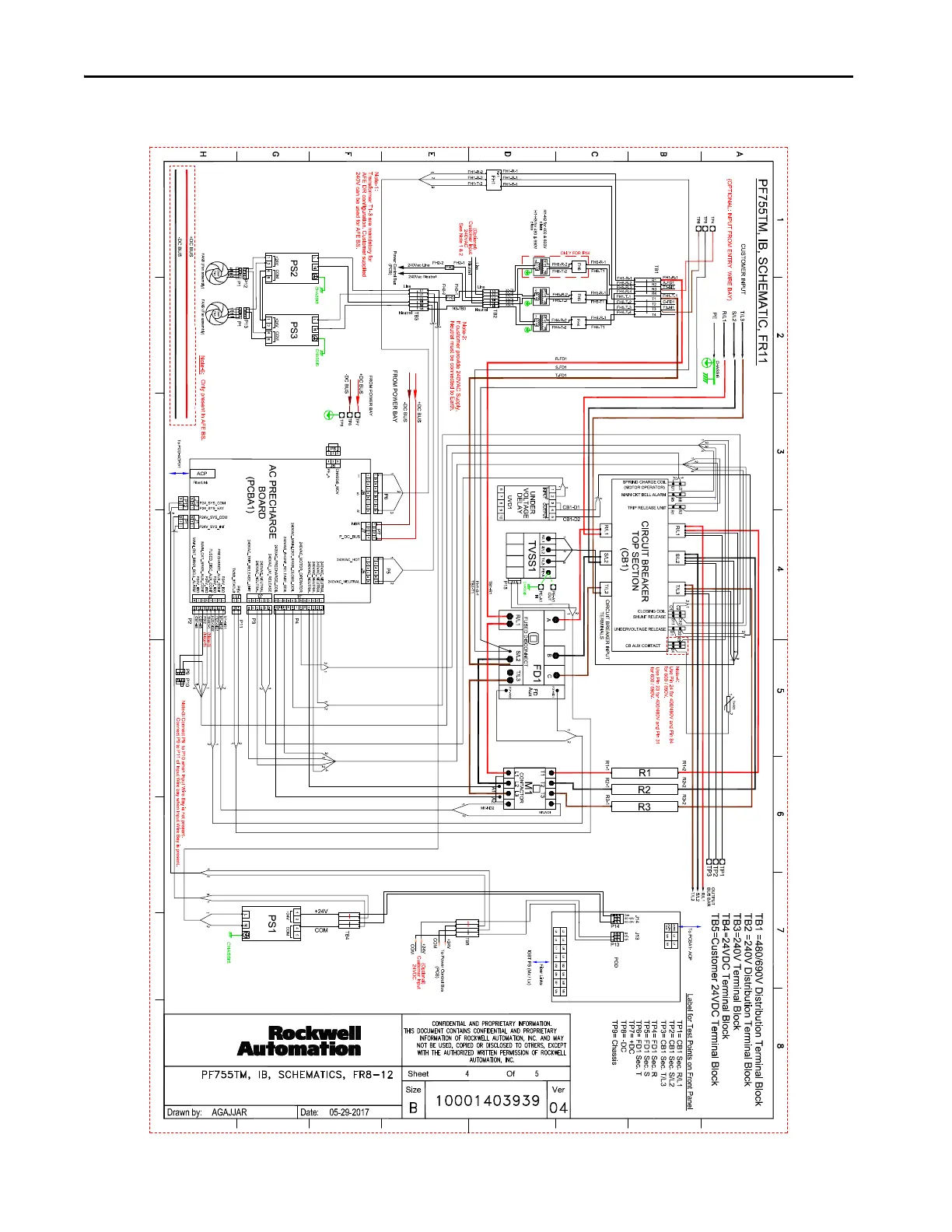

Figure 38 - PowerFlex 755TM Frame 11 AC Input Bay
