Rockwell Automation Publication 750-TG100B-EN-P - June 2019 327

System Schematics Appendix A

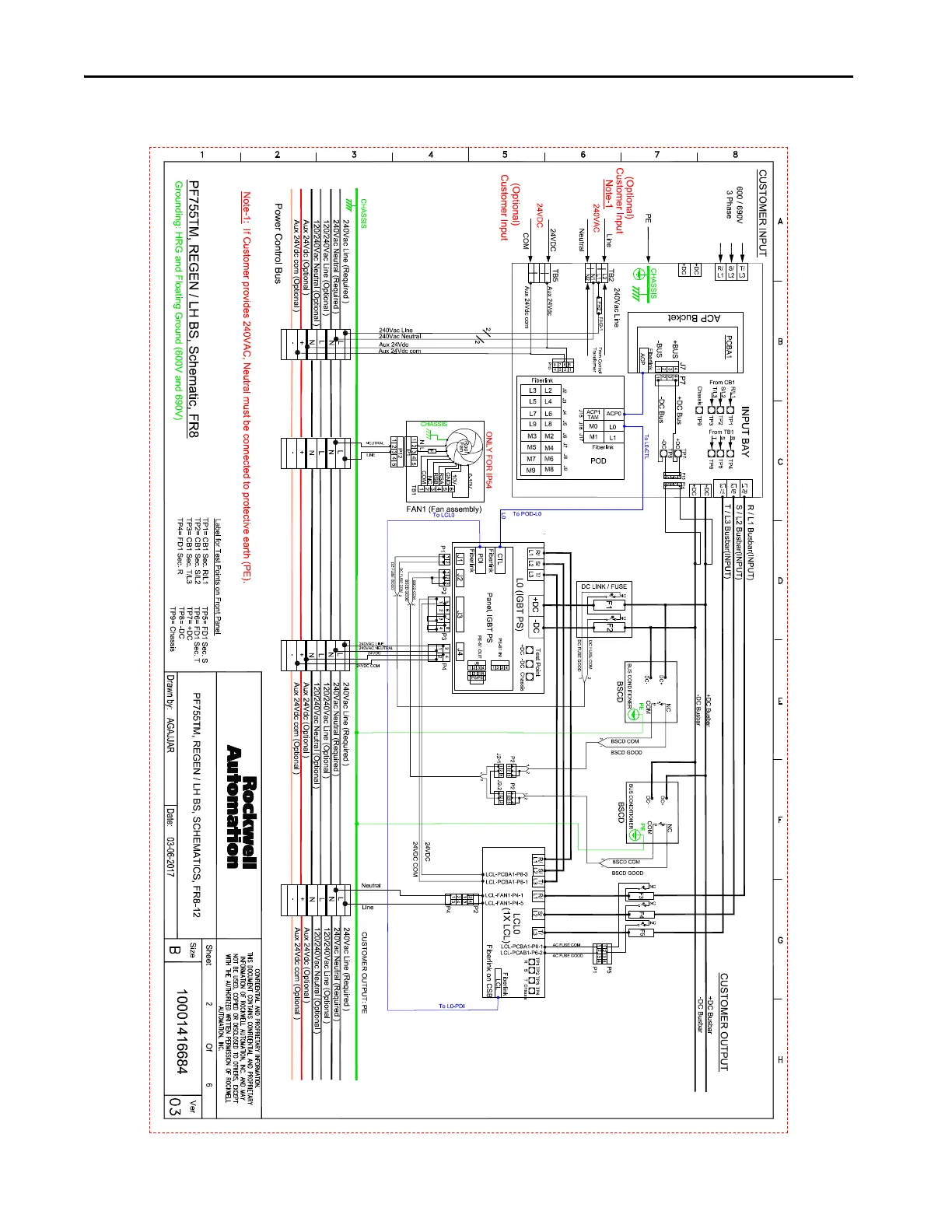

Figure 50 - PowerFlex 755TM Frame 8 Regenerative Bus Supply with no DC Bus Conditioner
