340 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Appendix A System Schematics

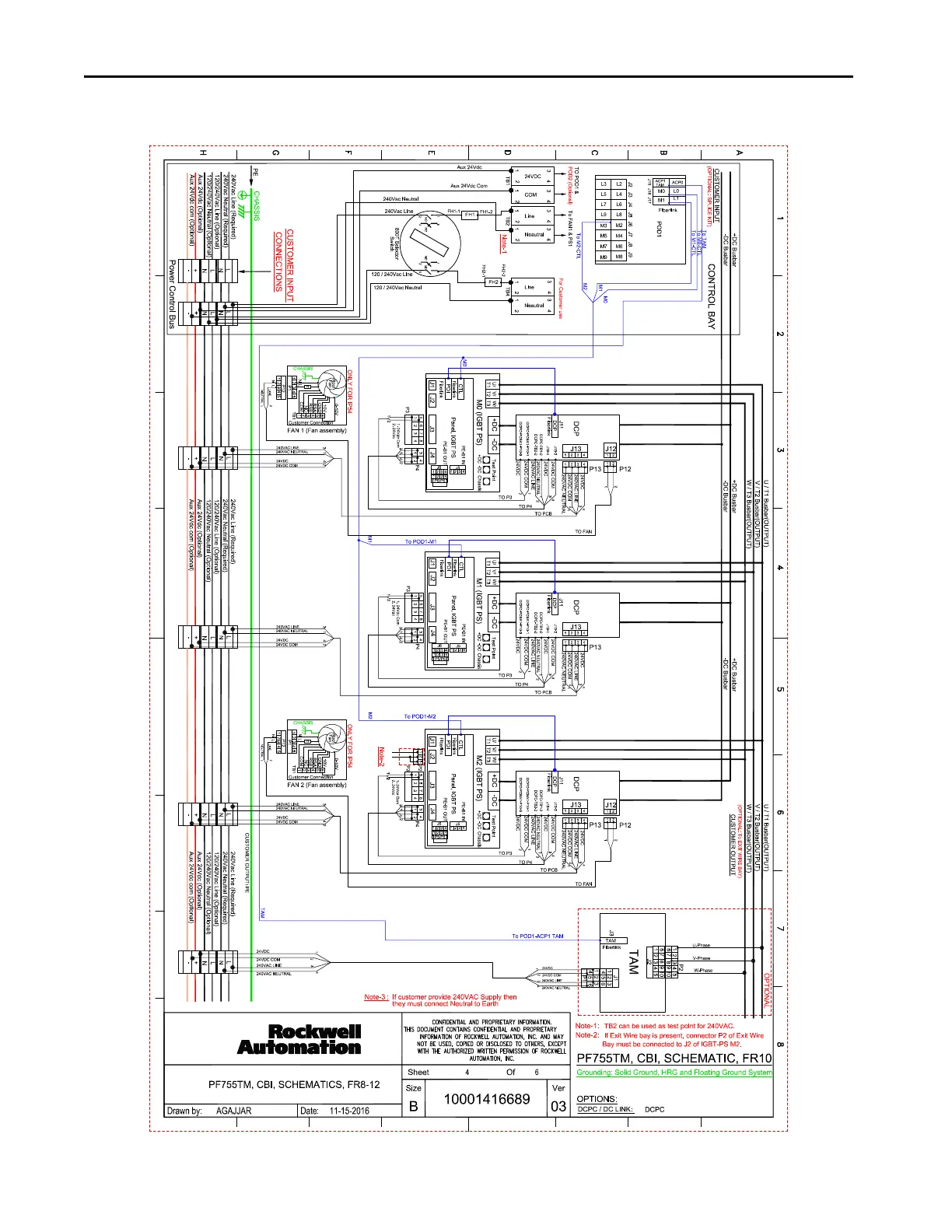

Figure 63 - PowerFlex 755TM Frame 10 Common Bus Inverter with DC Precharge Module
