Rockwell Automation Publication 750-TG100B-EN-P - June 2019 93

Frame 6 Components Chapter 5

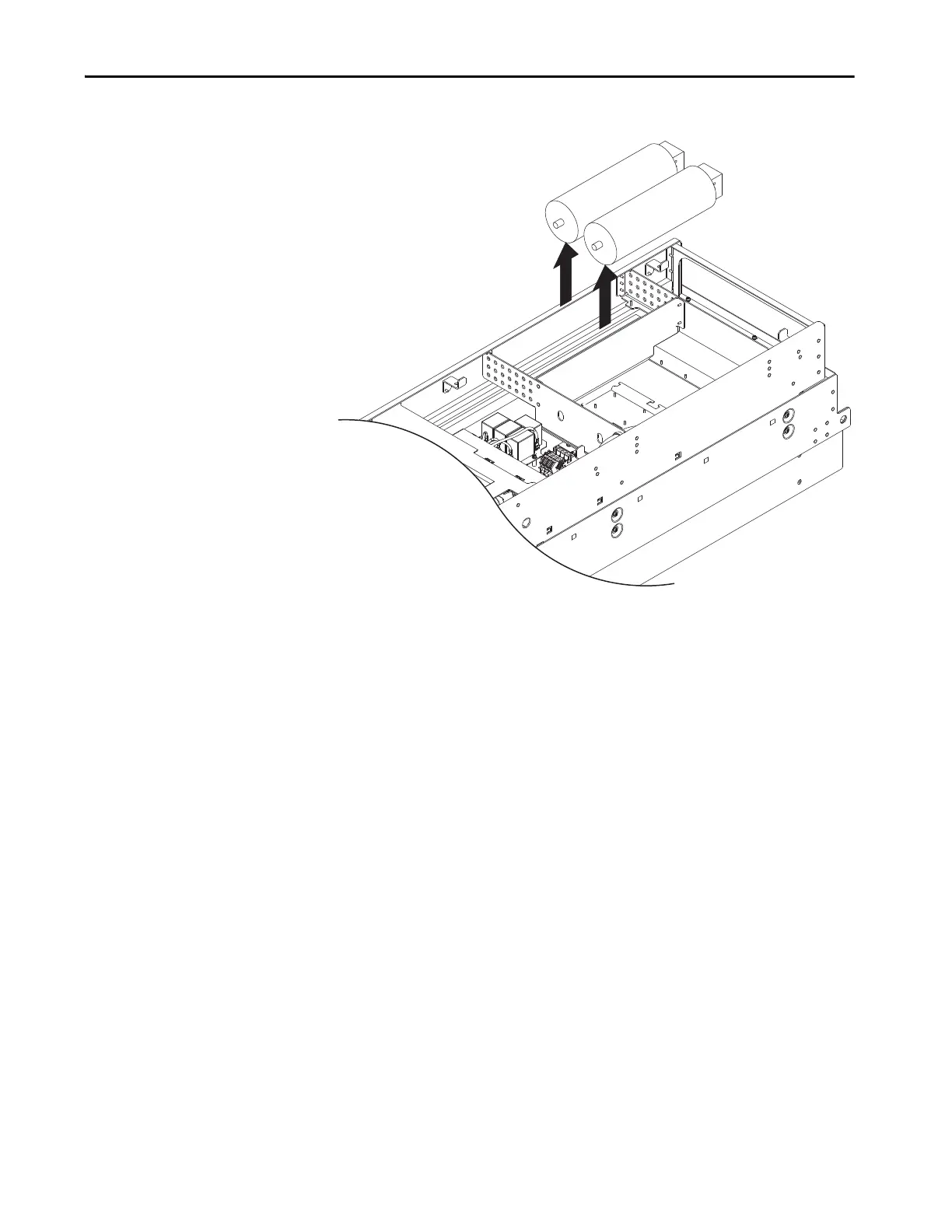

7. Remove the capacitor from the drive.
