Roger Technology CTRL Instruction And Warnings For The Installer

EN
85

Directional mode 2.
When entering, the barrier is opened with an AP open command, and closes after the automatic closing
time set with parameter .
NOTEMRSVHIVXSLEZIXLIEYXSQEXMGGPSWMRKWIXTEVEQIXIV different to .
When leaving the parking area, the barrier is opened by a PED command received from the magnetic loop.
Once the vehicle has crossed the barrier and released contact FT (NC), the barrier closes.
NOTEMXMWTSWWMFPIXSEHHJYVXLIVWHIPE]FIJSVIGPSWMRKWIXXMRK$.

Enable close command after activation of photocell (FT)
N.B.XLMWTEVEQIXIVMWRSXZMWMFPIMJ.

Disabled.

Enabled. The barrier stops if the photocell is activated during closing manoeuvre. The barrier resumes
closing when the photocell is cleared.

Selection of the battery operation management
Setting a value different than  a battery voltage level check is activated. The desired operation type can
be selected via parameter  and an error alert can be activated through the SC output via parameter .

The control unit always accepts commands until the battery is completely exhausted.

The command becomes active when the battery voltage drops to the minimum threshold (22Vdc for
battery 2x12Vdc)

The command becomes active when the battery voltage drops to the medium threshold (23Vdc for
battery 2x12Vdc)

The command becomes active when the battery voltage drops to the maximum threshold (24Vdc for
battery 2x12Vdc)

Selecting the battery operation limitations
N.B.: the parameter is visible only if par.  is different than 

There is no limitation for the commands when the battery voltage drops under the selected threshold. An
error alert may be activated via the SC output (if parameters  and  are adequately set).

When the battery voltage drops under the threshold selected with par. , the control unit accepts only
opening commands and does not perform closing.

When the battery voltage drops under the threshold selected with par. , after a 5 s pre-flashing, the
control unit automatically opens the barrier's boom and accepts only a closing command.

It accepts only closing commands even if the ORO input is active and if the parameter is  .

When the battery voltage drops to the threshold selected with par.  the control unit, after a prelamping
of 5s, automatically closes the gate and accepts only one opening command.

Selection of the battery type and consumption reduction
NOTE%R-2'366)'8WIXXMRKSJXLMWTEVEQIXIV[LIRXLIVIMWRSQEMRWZSPXEKIFPSGOWXLIJYRGXMSRWERH
the display shows the message EW/2 (if set to  or  and the battery is 2x12Vdc) or an error alert E
RG.

Battery 24Vdc (2x12V) with B71/BCHP. Acceleration/deceleration/speed reduction enabled, to increase
the battery life.

Battery 24Vdc (2x12V) with B71/BCHP. No performance reduction, maximum battery consumption.

Battery 36Vdc (3x12V) with external charger. Acceleration/deceleration/speed reduction enabled, to
increase the battery life. - DO NOT SELECT. FUTURE USE -

Battery 36Vdc (3x12V) with external charger. No performance reduction, maximum battery consumption.
- DO NOT SELECT. FUTURE USE -


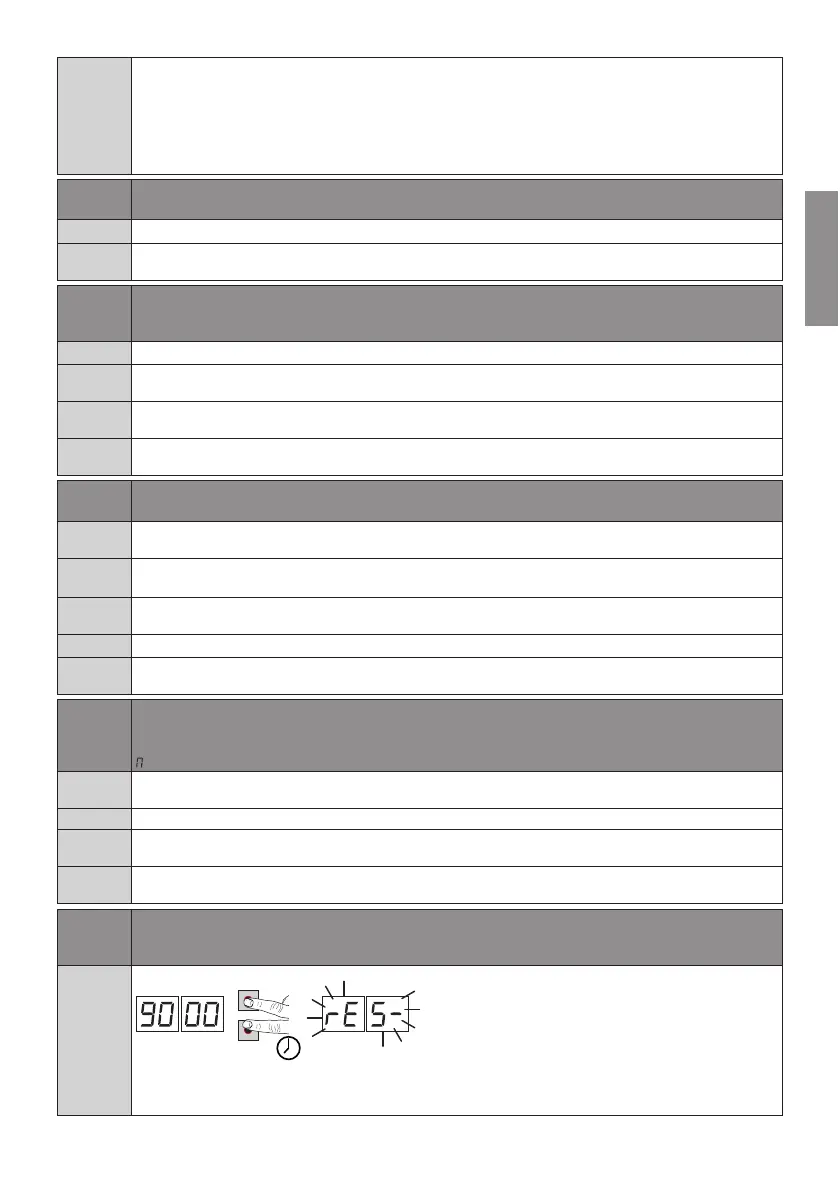

Restoring factory default values
NOTE This procedure is only possible is NO data protection password is set.
N.B.: This parameter is not visible for the SLAVE barrier.
P1
P2
x4 s
+
-
Warning! Restoring default settings cancels all settings
made previously except for parameters EJXIVVIWXSVI
check that all parameters are suitable for the installation.
The default factory settings may also be restored using
the + (PLUS) and/or -1-297FYXXSRWEWJSPPS[W
• Turn off the power.
• Press and hold the + (PLUS) and - (MINUS) buttons until the unit switches on.
• The message U(V flashes on the display after 4 s.
• The default factory settings have now been restored.
