Trying Out the Instrument
R&S
®
RTE
66Getting Started 1326.1026.02 ─ 08

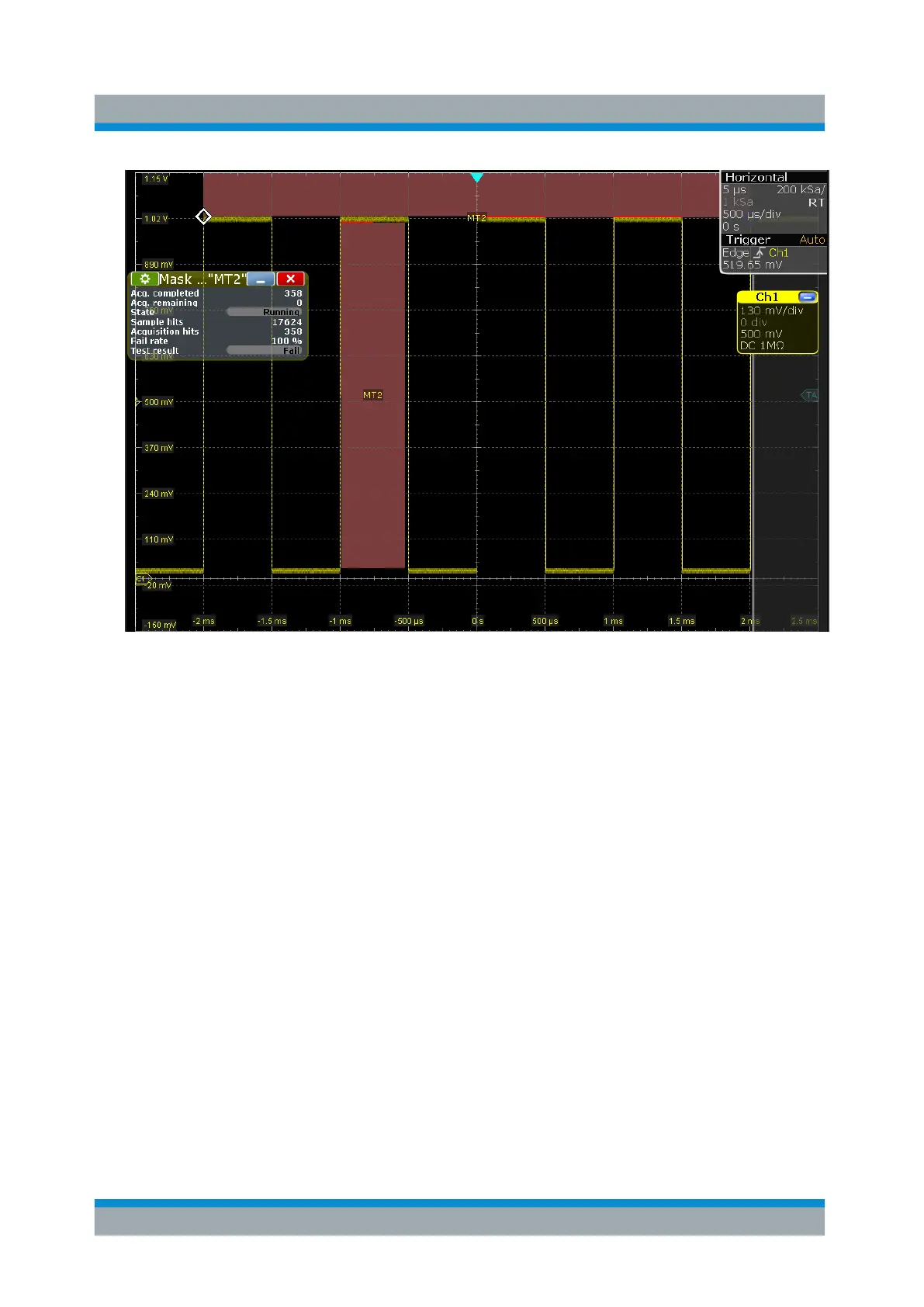

12. Press [RUN CONT] to start the next acquisition and watch the screen.
13.
Close the "MaskTest" results box by tapping the red cross in the label.
5.11 Printing and Saving Screenshots
You can print and save screenshots of the current display to document your
results. In the following examples, you print the current display as a black and
white graphic with inverted colors, i.e. a black waveform is printed on a white
background. Then you save some screenshots using the PRINT key.
To print a screenshot
You need a printer that is connected to the instrument. If the instrument is con-
nected to the network, you can also use a network printer.
1. Open the "File" menu and tap "Print Setup".
2. Tap "Color" and select "Black and white".
3. Enable "Inverse color".
Printing and Saving Screenshots
