Rohde AB100 - Fitting the trap to the sedimentation tank

24 / 112 - EN -

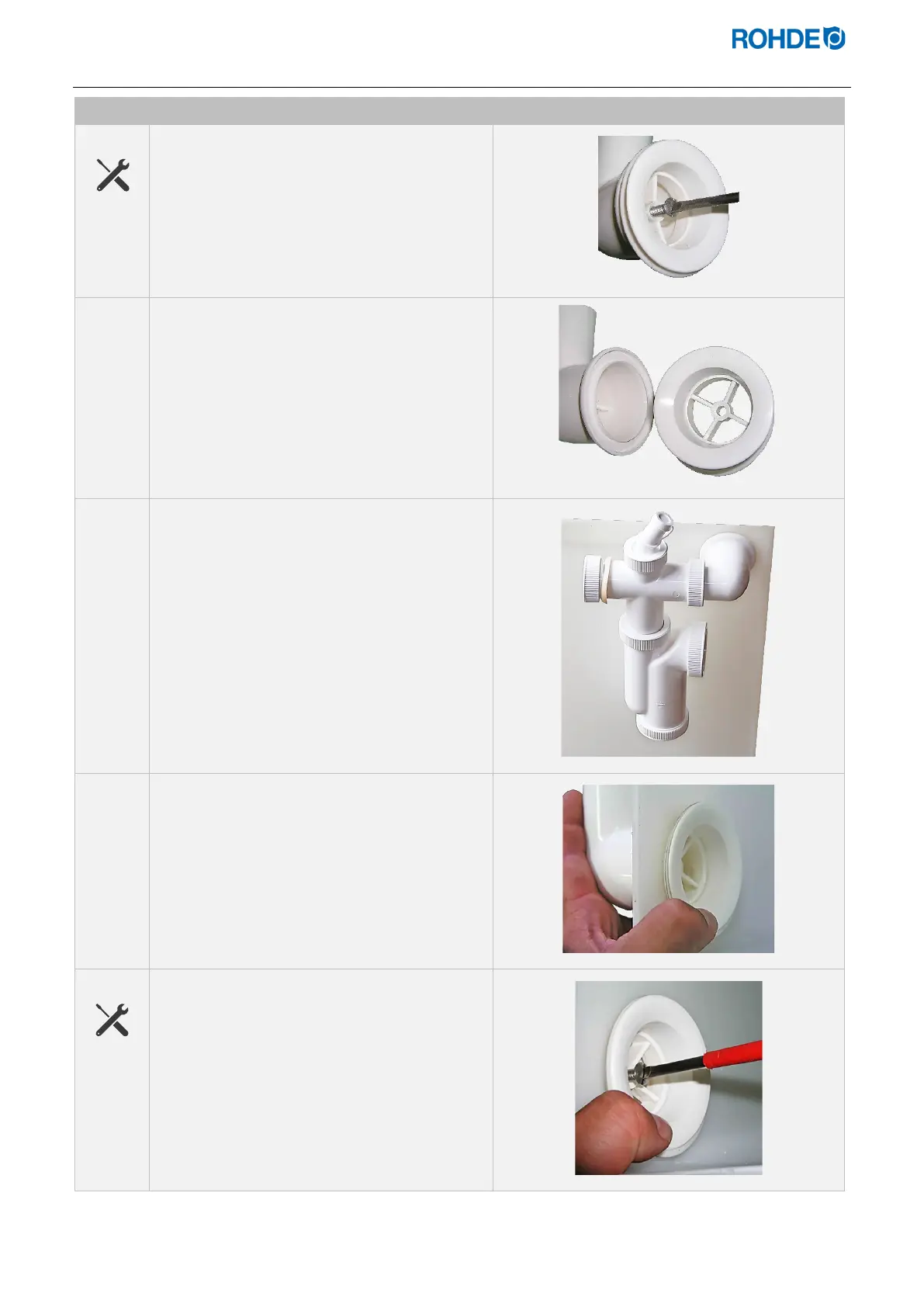

5.5. Fitting the trap to the sedimentation tank
Step Description Illustration
1
Remove the trap (Item 4) from the accessories
supplied and unscrew the inlet strainer with a
slotted screwdriver.
2
Remove the inlet strainer and seal from the trap.
3
Position the trap (Item 4) at the hole (Ø = 50 mm)
on the outside of the three-compartment tank
(Item 1).
4
Place the inlet strainer together with the seal on
the hole in the three-compartment tank.
5
Screw the inlet strainer to the seal and the trap.
