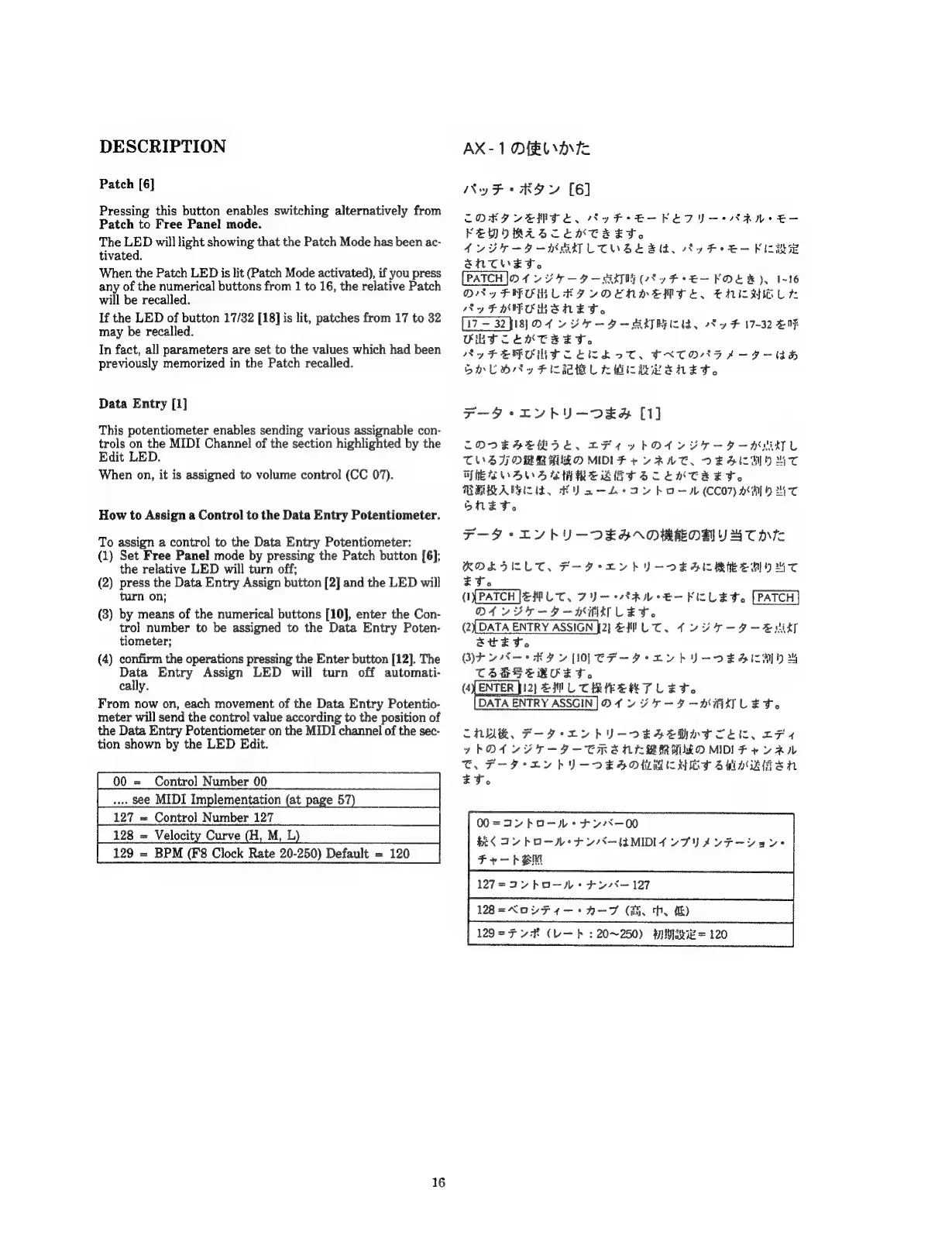

DESCRIPTION
Patch
[6]
Pressing
this
button
enables
switching
alternatively
from
Patch
to
Free
Panel
mode.
The
LED
will
light
showing
that
the
Patch
Mode
has
been
ac-
tivated.
When
the
Patch
LED
is
lit
(Patch
Mode
activated),
if
you
press
any
of
the
numerical
buttons
from
1
to
16,
the
relative
Patch
will
be
recalled.
If
the
LED
of
button
17/32
[18]
is
lit,
patches
from
17
to
32
may
be
recalled.
In
fact,
all
parameters
are
set
to
the
values
which
had
been
previously
memorized
in
the
Patch
recalled.
Data
Entry
[1]
This
potentiometer
enables
sending
various
assignable
con-
trols
on
the
MIDI
Channel
of
the
section
highlighted
by
the
Edit
LED.
When
on,
it
is
assigned
to
volume
control
(CC
07).
How
to
Assign
a
Control
to
the
Data
Entry
Potentiometer.
To
assign
a
control
to
the
Data
Entry
Potentiometer:
(1)
Set
Free
Panel
mode
by
pressing
the
Patch
button
[6];
the
relative
LED
will
turn
off;
(2)
press
the
Data
Entry
Assign
button
[2]
and
the
LED
will
turn
on;
(3)
by
means
of
the
numerical
buttons
[10],
enter
the
Con-
trol
number
to
be
assigned
to
the
Data
Entry
Poten-
tiometer;
(4)
confirm
the
operations
pressing
the
Enter
button
[12].
The
Di
Entry
Assign
LED
will
turn
off
automati-
cally.
From
now
on,
each
movement
of
the
Data
Entry
Potentio-
meter
will
send
the
control
value
according
to
the
position
of
the
Data
Entry
Potentiometer
on
the
MIDI
channel
of
the
sec-
tion
shown
by
the
LED
Edit.
129
=
BPM
(F8
Clock
Rate
20-250)
Default
=
120
16
