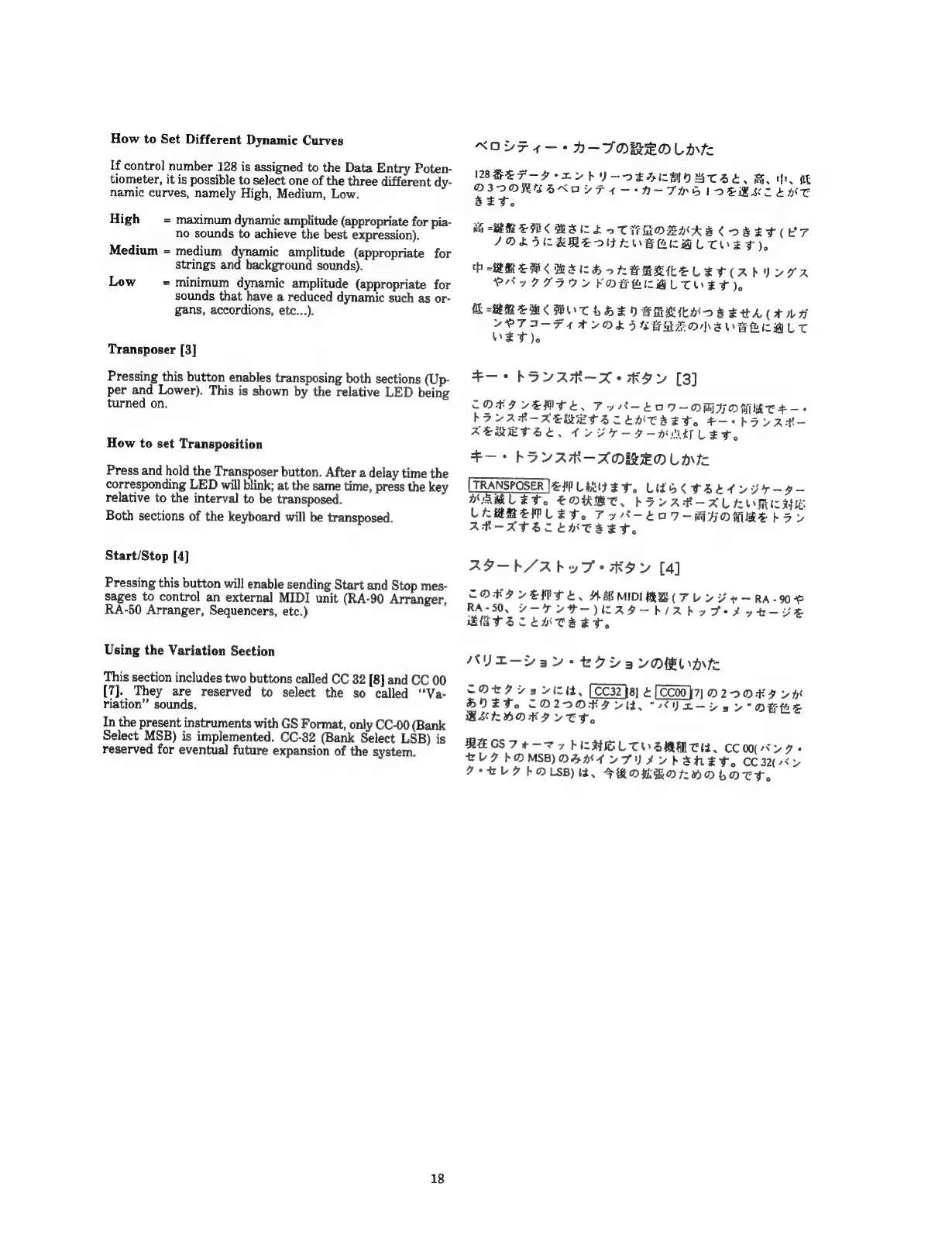

How to Set Different Dynamic Curves
If
control
number
128
is
assigned
to
the
Data
Entry
Poten-
tiometer,
it
is
possible
to
select
one
of
the
three
different
dy-
namic curves, namely High, Medium, Low.
High
=
maximum
dynamic
amplitude
(appropriate
for
pia-
no
sounds
to
achieve
the
best
expression).
Medium
=
medium
dynamic
amplitude
(appropriate
for
strings
and
background
sounds).
= minimum dynamic amplitude (appropriate for
sounds that have a reduced dynamic such as or-
gans, accordions, etc...).
Low
Transposer [3]
Pressing
this
button
enables
transposing
both
sections
(Up-
per
and
Lower).
This
is
shown
by
the
relative
LED
being
turned
on.
How to set Transposition
Press
and
hold
the
Transposer
button.
After
a
delay
time
the
corresponding
LED
will
blink;
at
the
same
time,
press
the
key
relative
to
the
interval
to
be
transposed.
Both sections of the keyboard will be transposed.
Start/Stop [4]
Pressing
this
button
will
enable
sending
Start
and
Stop
mes-
sages
to
contro]
an
external
MIDI
unit
(RA-90
Arranger,
RA-50
Arranger,
Sequencers,
etc.)
Using the Variation Section
This
section
includes
two
buttons
called
CC
32
[8]
and
CC
00
[7].
They
are
reserved
to
select
the
so
called
"Va.
riation”
sounds.
In
the
present
instruments
with
GS
Format,
only
CC-00
(Bank
Select
MSB)
is
implemented.
CC-32
(Bank
Select
LSB)
is
reserved
for
eventual
future
expansion
of
the
system.
