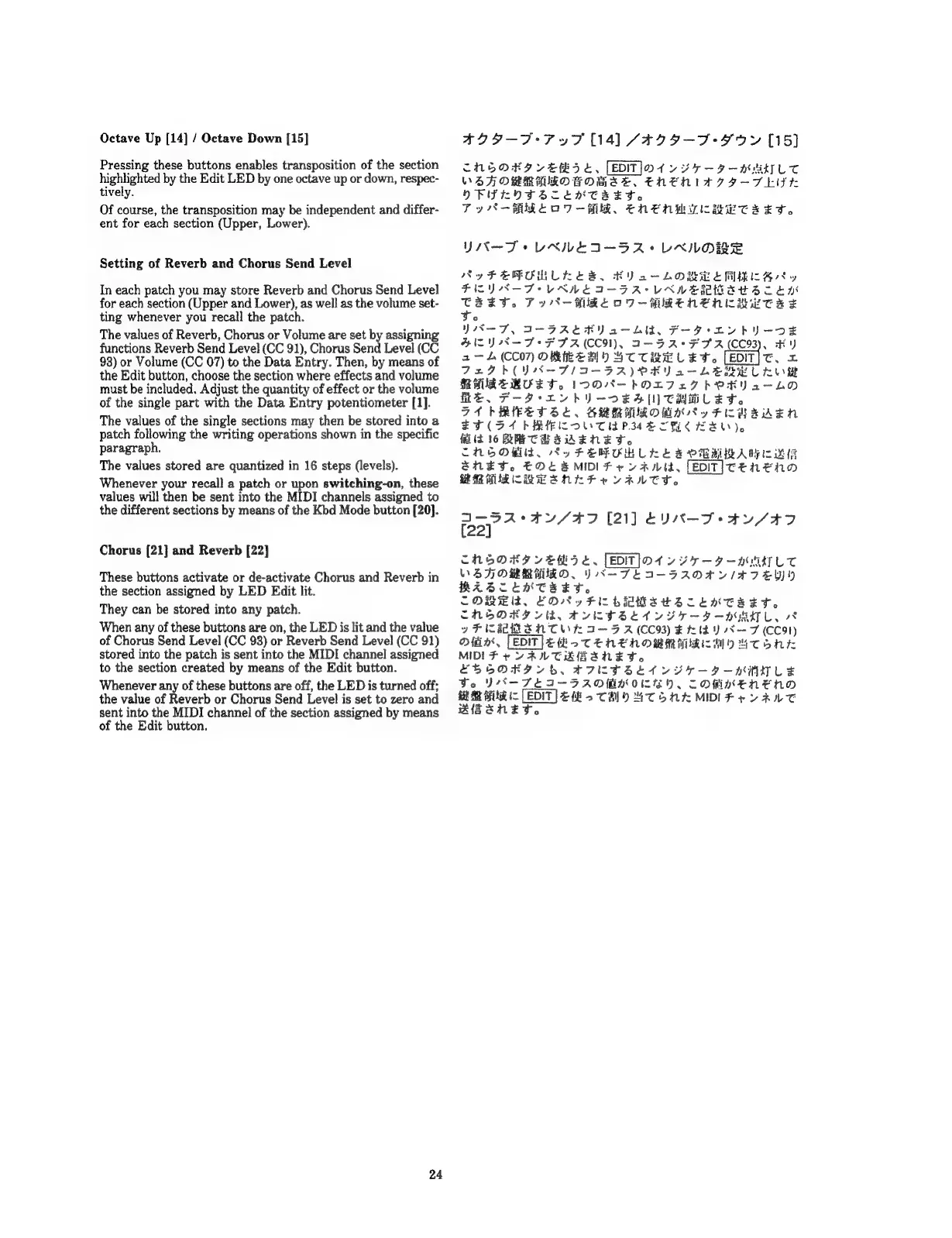

Octave Up [14] / Octave Down [15]
Pressing these buttons enables transposition of the section
highlighted by the Edit LED by one octave up or down, respec-
tively.
Of course, the transposition may be independent and differ-
ent for each section (Upper, Lower).
Setting of Reverb and Chorus Send Level
In each patch you may store Reverb and Chorus Send Level
for each section (Upper and Lower), as well as the volume set-
ting whenever you recall the patch.
The values of Reverb, Chorus or Volume are set by assigning
functions Reverb Send Level (CC 91), Chorus Send Level (CC
93) or Volume (CC 07) to the Data Entry. Then, by means of
the Edit button, choose the section where effects and volume
must be included. Adjust the quantity of effect or the volume
of the single part with the Data Entry potentiometer [1].
The values of the single sections may then be stored into a
patch following the writing operations shown in the specific
paragraph.
The values stored are quantized in 16 steps (levels).
Whenever your recall a patch or upon switching-on, these
values will then be sent into the MIDI channels assigned to
the different sections by means of the Kbd Mode button [20].
Chorus [21] and Reverb [22]
These buttons activate or de-activate Chorus and Reverb in
the section assigned by LED Edit lit.
They can be stored into any patch.
When any of these buttons are on, the LED is lit and the value
of Chorus Send Level (CC 93) or Reverb Send Level (CC 91)
stored into the patch is sent into the MIDI channel assigned
to the section created by means of the Edit button.
Whenever any of these buttons are off, the LED is turned off;
the value of Reverb or Chorus Send Level is set to zero and
sent into the MIDI channel of the section assigned by means
of the Edit button.
