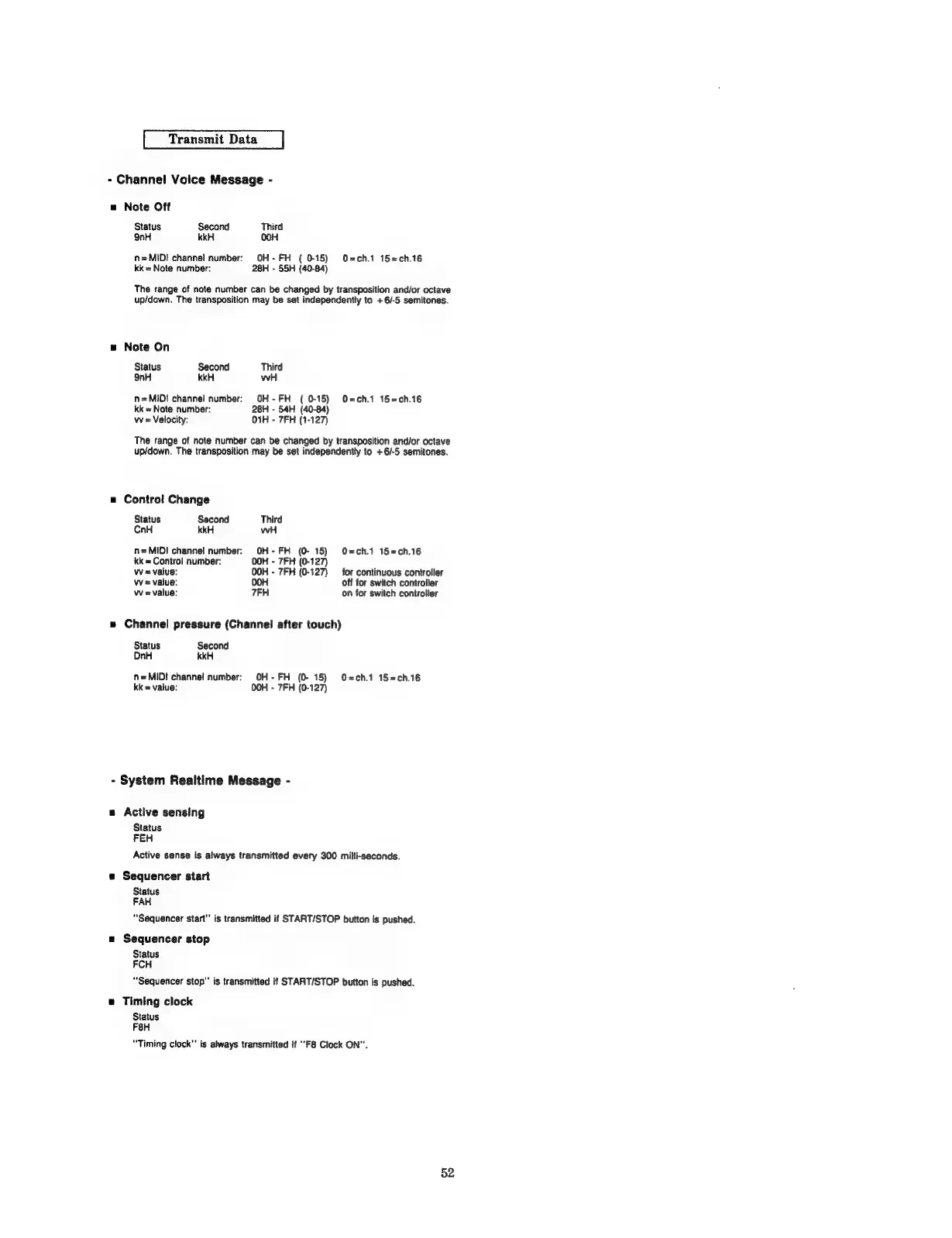

Transmit Data
- Channel Voice Message -
m Note Off
Status Second Third
9nH kkH 00H
n= MIDI channel number: OH-FH ( 0-15) O=ch.1 15=ch.16
kk= Note number: 28H - 55H (40-84)
The range of note number can be changed by transposition and/or octave
up/down, The transposition may be set independently ta + 6/-5 semitones.
w Note On
Status Second Third
9nH kkH wH
n=MIDi channel number: OH-FH (0-15) O=ch.1 15=ch.16
kk = Note number: 28H - 54H (40-84)
we Velocity: O1H - 7FH (1-127)
The range of note number can be changed by transposition and/or octave
up/down. The transposition may be set independently to +6/-5 semitones.
m Control Change
Status Second Third
CnH kkH wH
nz MIDI channel number: OH-FH (0- 15) O=ch.1 15=ch.16
kk = Control number: 00H - 7FH (0-127)
vy = value: OOH - 7FH (0-127) for continuous controller
vy = value: 00H off for switch controller
VV = value: 7FH on for switch controller
Channel pressure (Channel after touch)
Status Second
DnH kkH
n= MIDI channel number: OH-FH (0- 15) O=ch.1 15=ch.16
kk = value: OOH - 7FH (0-127)
- System Realtime Message -
Active sensing
Status
FEH
Active sense is always transmitted every 300 milli-seconds.
Sequencer start
Status
FAH
“Sequencer start” is transmitted if START/STOP button is pushed.
Sequencer stop
Status
FCH
“Sequencer stop" is transmitted if START/STOP button is pushed.
Timing clock
Status
F8H
"Timing clock” is always transmitted if "F8 Clock ON”.
