Roland MDX-40A Step-By-Step Guide

26
5

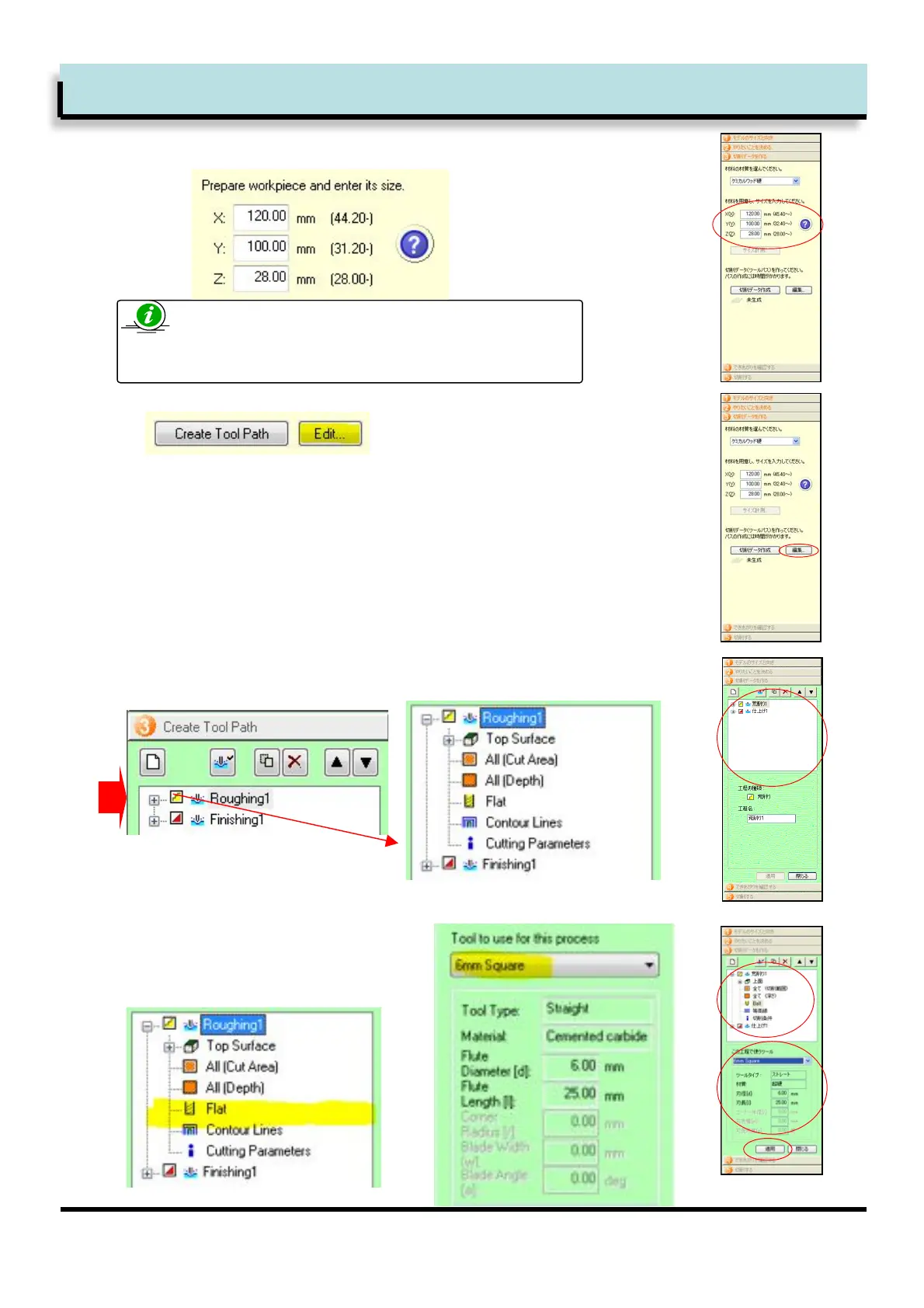

Input the size of workpiece for model.
6
7
8
Create cutting data (tool path)
++++++++
Click [Edit] button.
Set up the rough cutting values.
Click on the ‘+’ position shown below. The pallet menu will expand.
Select the tool
K1Select tool pallet.
L Select [6mm square]
M1Click [Apply]
Step 4.+Create tool path
The values in brackets ( ) represent the maximum
model size in each axis. Your workpiece needs to
exceed these measurements.
K
L
K L
M
