FIRMWARE UPDATE
UPDATE PROCEDURE:
1. Connect the computer to the SH-01A's USB port by a USB cable.
2. Hold down [8] and switch on the power.
3. Open the "SH-01A" drive folder in your personal computer.
4. Copy BQ3_UPD.BIN file into the "SH-01A" drive by dragging and dropping it.
NOTE - Don’t copy the whole folder, only copy the .BIN file. Also the name of the file might be different
because it could be a new update since writing this user’s guide. But you get the idea, right?
5. After copying the file is completed, remove the USB drive from the personal computer.
With Windows
Right-click on the "SH-01A" icon in My Computer and execute "Eject."
With Mac
Drag the "SH-01A" icon to the Trash icon in the Dock.
6. Press the [8] button to start updating the file.
The progress (%) is shown on the display.
When "OK" appears on the display, the update is complete.
7. Turn the SH-01A power off.
* At the initial startup after the update, all indicators might remain unlighted for about 10 seconds.
Continue waiting until the unit starts normally.
MAIN SPECIFICATIONS
Maximum Polyphony 4 voices
Power Supply Rechargeable Ni-MH battery (AA, HR6), Alkaline battery (AA, LR6), USB bus power
Current Draw 500 mA (USB bus power)
Dimensions 300 (W) x 128 (D) x 46 (H) mm"
11-13/16 (W) x 5-1/16 (D) x 1-13/16 (H) inches
Weight 965 g (including batteries) 2 lbs 3 oz
Accessories Owner’s Manual, Leaflet “USING THE UNIT SAFELY,” Alkaline battery (AA, LR6) x 4
Options (sold separately) Keyboard unit: K-25m Boutique Dock: DK-01

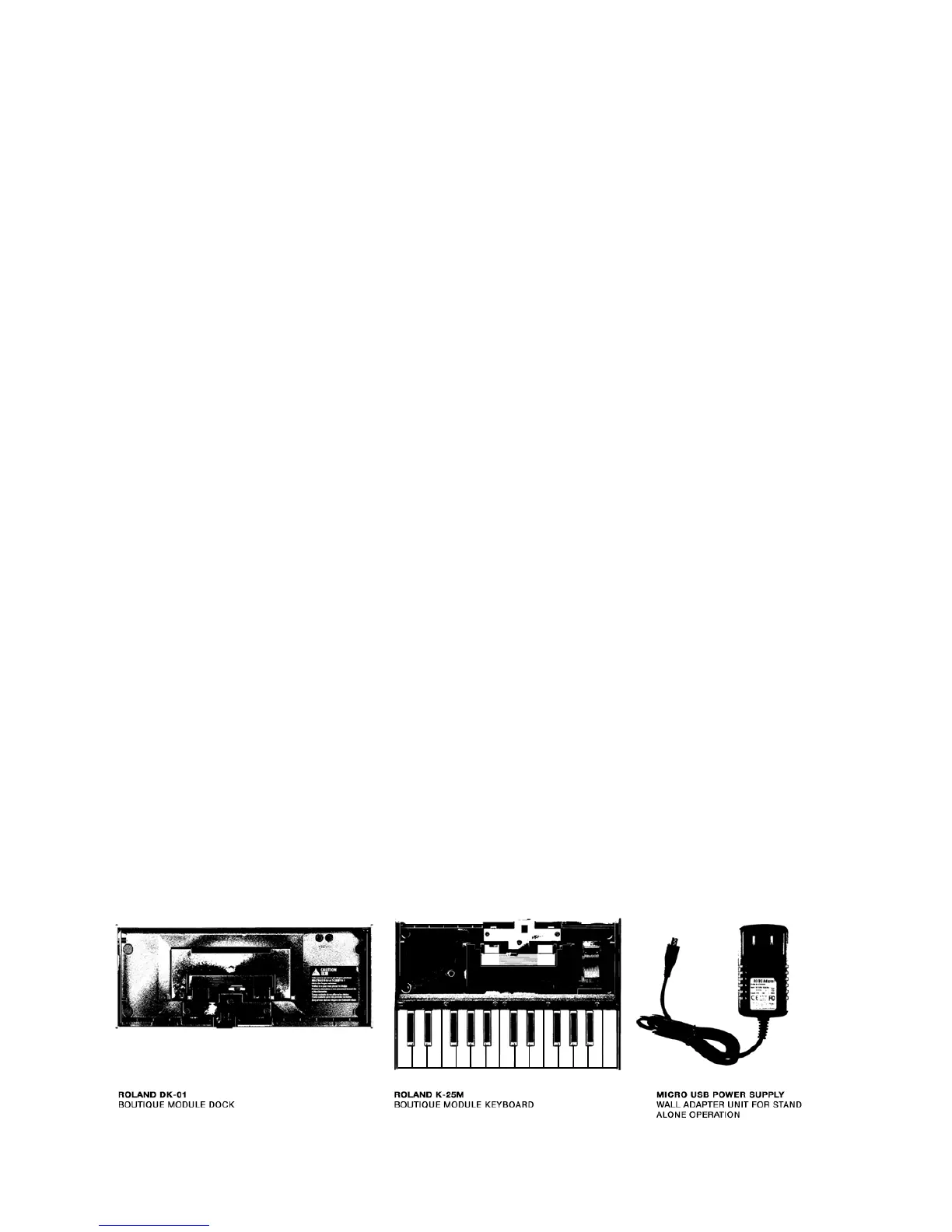

OPTIONAL ACCESSORIES
