Pad Configuration Possibilities
TD-3Kit with two CY-8s (+ 2 MDY-10Us)
fig.Expand-2.e
This setup shows a TD-3Kit with two CY-8s (+ 2 MDY-10Us) for a total of four cymbals.
Connecting the cymbal pads to the TOM 1–3 trigger input jacks allows four or more cymbals to be used.
You can use four toms by connecting a pad to the TOM 1–3 and/or CRASH 2/CRASH 1
trigger input jack.
Set the trigger type for each trigger input to match the pad or cymbal used (p. 50).

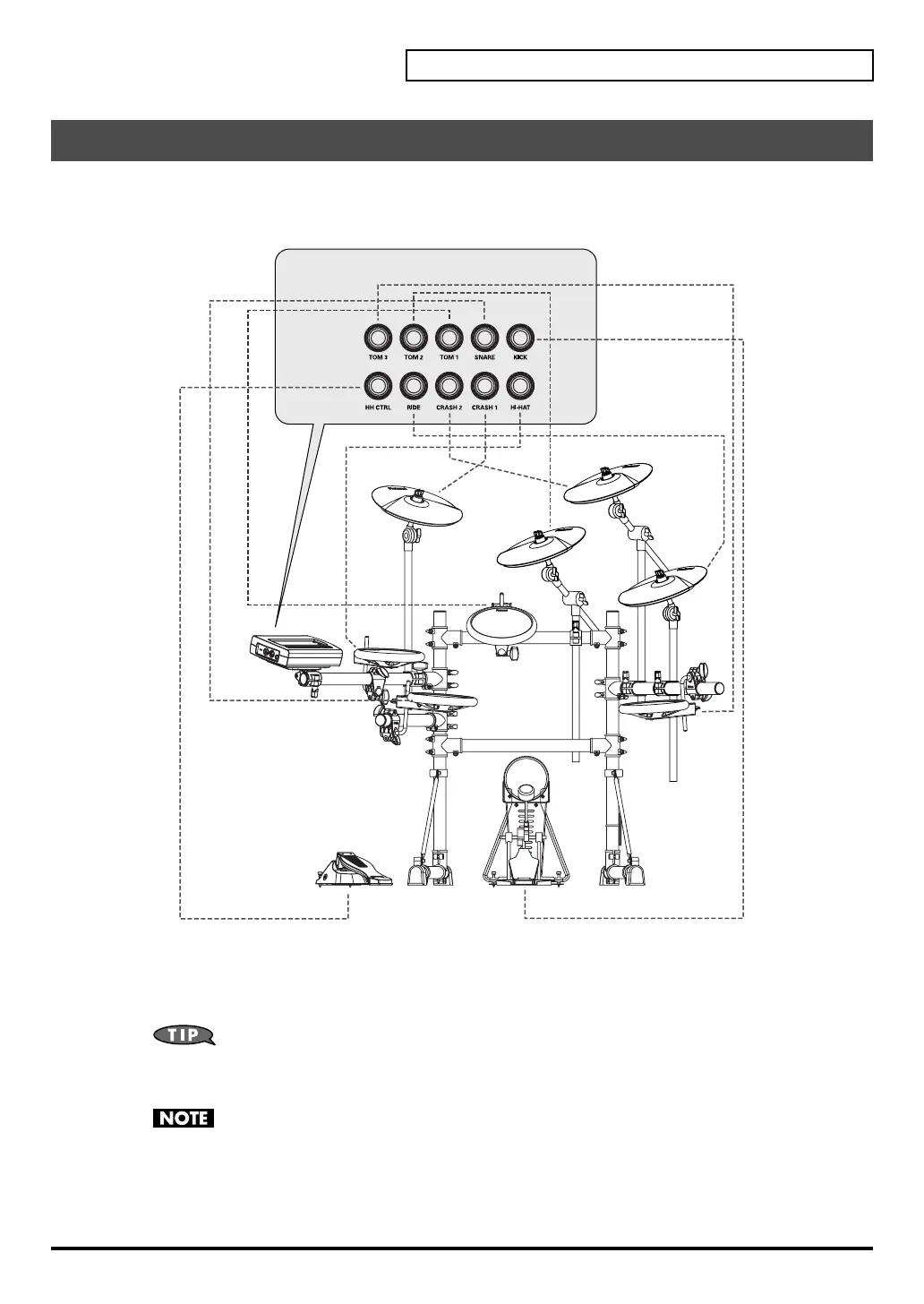

Two Toms and Four Cymbals
TRIGGER INPUT jacks
CRASH2
CY-8
CY-8
CRASH1
TOM 3
PD-8
PD-8
TOM 1
PD-8
HI-HAT
PD-8
SNARE
KICK
KD-8
FD-8
HH CTRL
TD-3
RIDE
CY-8
CY-8
(CRASH3)
