Product Specification
BasicCharge Intelligent EV Charging Pedestal EVBM-V01-R1 Installation and Operation Manual
Page 11 of 36 December 2022

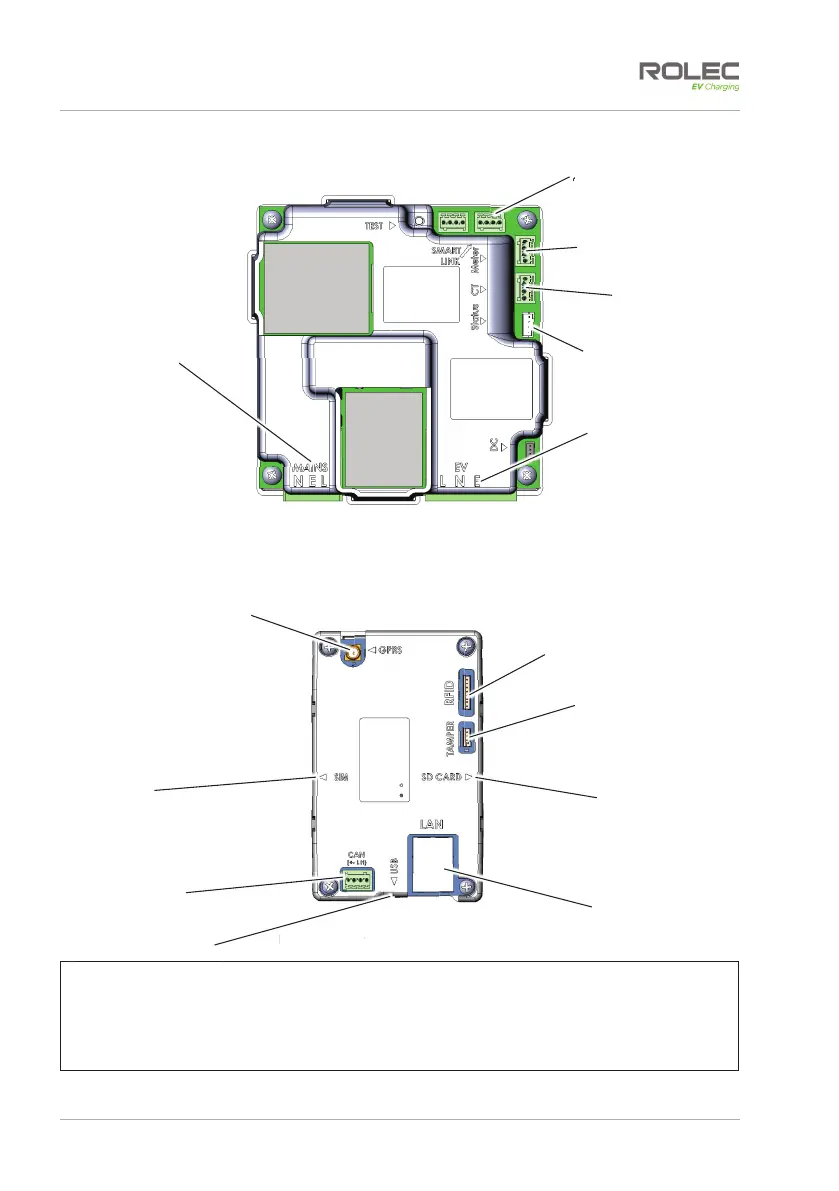

Figure 4 EV Charge Controller
Figure 5 Smart Communications Module
NOTE:
x The EV Charge Controllers are located within the enclosure on the same side as the
sockets.
x The Smart Communications Module is located within the other side of the enclosure.
x The RFID sensor is located within the enclosure on the same side as the RFID plate.
CANBUS
Connector
Connection to
Anti-Tamper Devices
SD Card Location
RJ45 LAN
Connector
Connection to RFID
Board
USB Connector
Fig
ure
5
S
mart
Com
GPRS Antenna
Connection
SIM Card
Location
Meter Connector
2x CT
Connectors
Status Indicator
‘Halo’ Connector
Smart Link
Connection
C
C
C
C
Power ‘OUT’ and
Signal Connector
to Socket
L, N, E.
Power ‘IN’
Connector to
PCB
N, E, L.
