Programming Instructions | AX30/AX50 External Shade Motor ROLLEASE ACMEDA
5 CASSETTE MODE
For Non-Cassette Open Mode refer to section 4 and for Vertical Drop Mode refer to section 6.

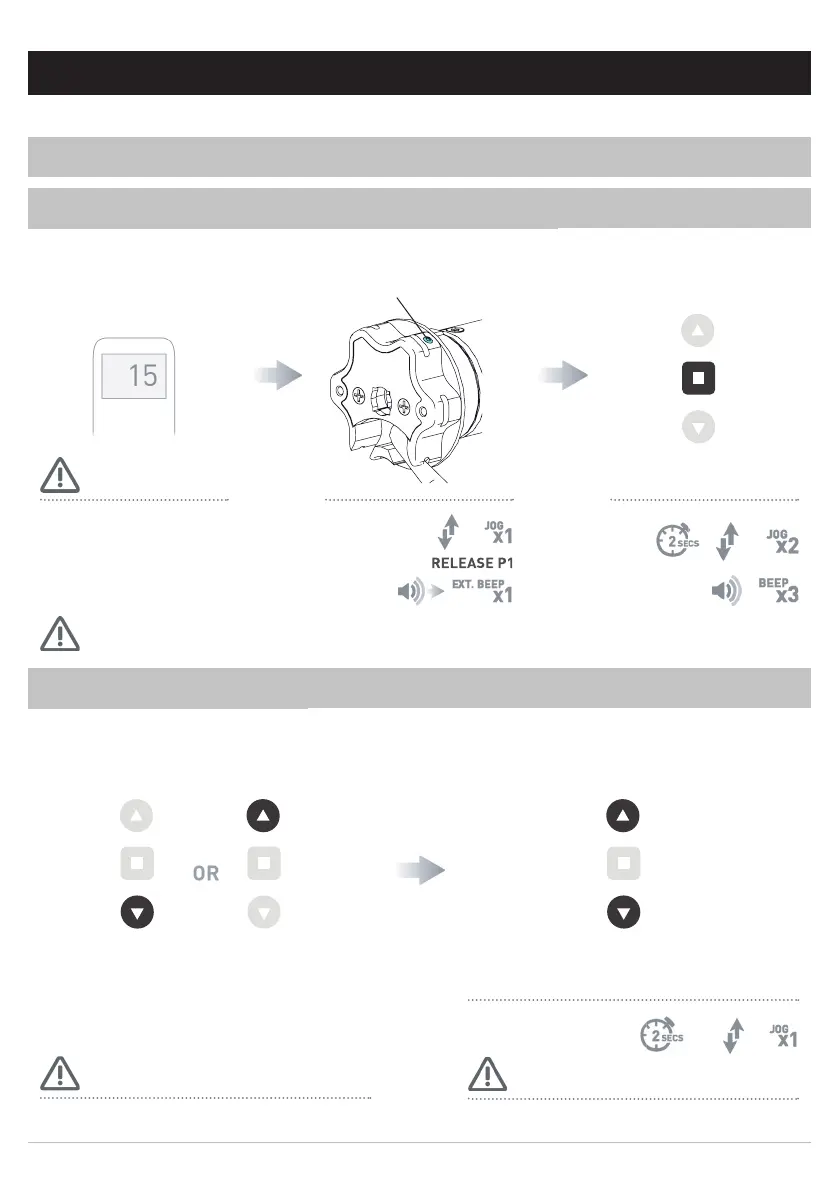

5.1 Initial Setup
.
5.1.1 Pair motor with controller
5.1.2 Check motor direction
Consult user manual for your
controller for information on
selecting channel.
Damage to shade may occur when operating motor prior to
setting limits. Attention should be given.
Reversing motor direction using this method is only possible
during initial set-up
Hold P1 button on
motor head.
To check travel direction of shade, press UP or
DOWN on controller.
Quick Press = Step
Long Press = Continuous Travel
To reverse shade direction, hold both UP and
DOWN.
Until the motor responds.
Select channel on
controller.
Hold STOP on
controller.
Approx.
Approx.
Motor Response
Motor Response
Motor Response
Motor is now in step mode and ready for setting limits
IMPORTANT IMPORTANT
IMPORTANT
Note: Ensure Motor is in factory default setting.
