23 | Automate
™
Programming Instructions | AX30/AX50 External Shade Motor ROLLEASE ACMEDA
6.5
Impact Detection (Only available with Zipscreen)
Impact detection may be activated only in Vertical Drop mode. If an obstacle is detected twice in the shade path
during downwards movement, the motor lifts the shade up ~ 7.87in. (20cm).
Top limit
Bottom limit
300 degrees x TUBE DIAMETER
300 degrees x TUBE DIAMETER
Inactive zone of impact detection
Active zone of impact detection
Inactive zone of impact detection
Impact detection does not require a 2
piece drive set. The use of a standard 1
part drive adapter is compatible.
The Impact Detection feature only works in the active zone during downward movement.
This impact detection feature is deactivated by default.
Repeat sequence to turn on or off as required.

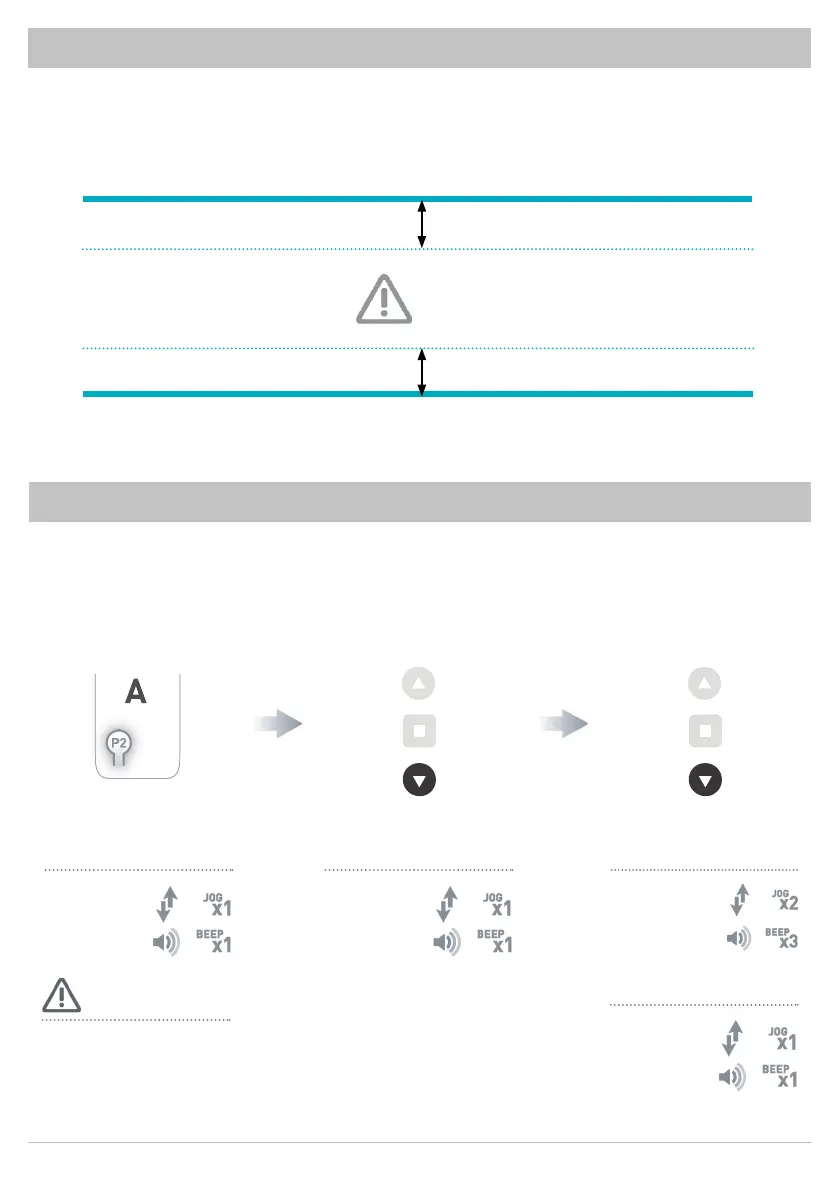

Press P2 on controller. Press DOWN on controller. Press DOWN on controller.
Impact Detection ON
Impact Detection OFF
Motor Response Motor Response
Motor Response
Motor Response
Impact detection does not require a 2 piece drive set. The use of a standard 1 part drive adapter is compatible.
The top tube must be able to freely rotate ~ 5 degrees after installation. Zipscreen is needed to let the impact
transmit to the top during downward movement.
IMPORTANT
6.5.1
Active/Deactivate Impact Detection Mode
