rollease acmeda AUTOMATE AX30 User Manual

7 | Automate
™
Programming Instructions | AX30/AX50 External Shade Motor ROLLEASE ACMEDA
1
2
3
Disconnect the mains power supply.
Connect the motor according to the information in the table below.
Ensure cable is kept clear of fabric.
Ensure antenna is kept straight and away from metal objects.
Ensure cable is kept clear of fabric.
Ensure antenna is kept straight and away from metal objects.
Power OFF
Water proof connector
Power Cord

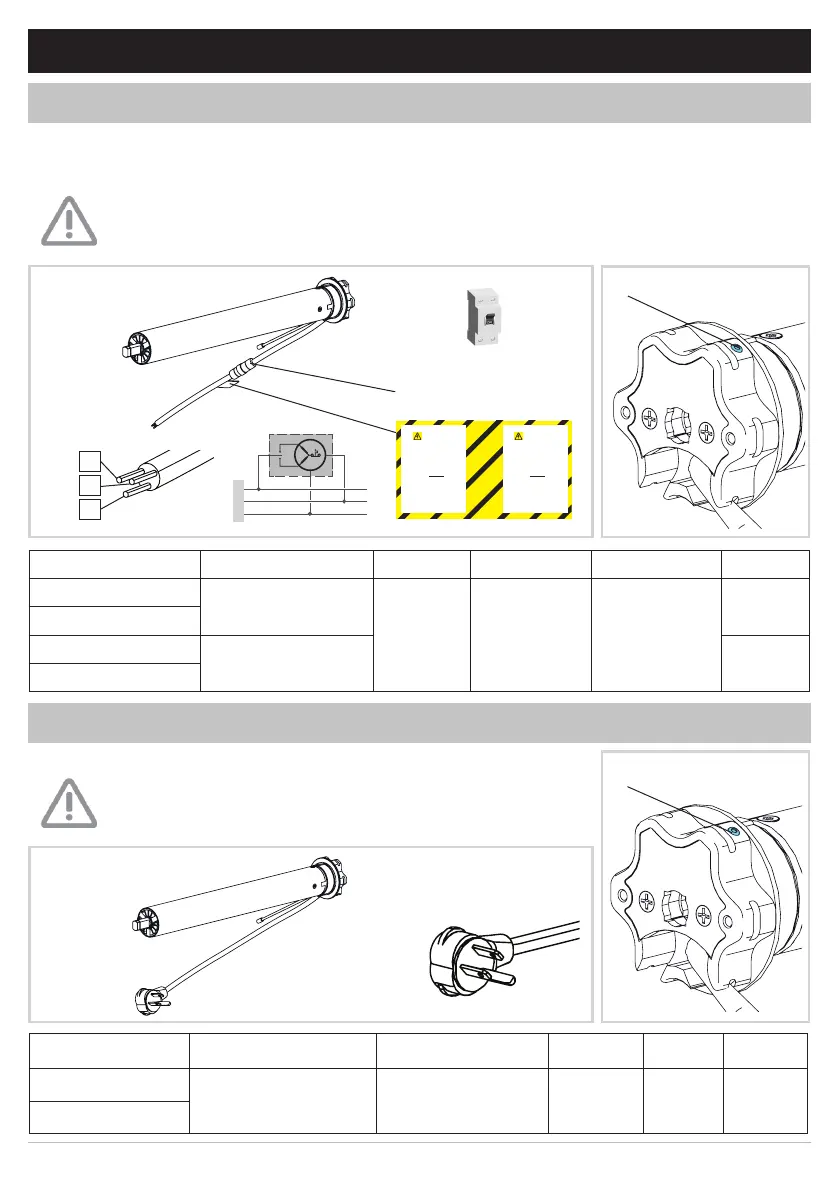

2 WIRING
MOTOR POWER NEUTRAL LIVE EARTH REGION
MT01-1145-069014
230V AC 50Hz
Blue Brown Yellow/Green
EU
MT01-1145-069016
MT01-1145-069013
240V AC 50Hz AU
MT01-1145-069015
DO N OT REM OV E THIS LABEL
WARNING
E L E C TRIC AL H AZARD !
Power shall only be supplied to this
cable once male & female
connectors are correctly coupled.
Isolate power prior to connecting or
disconnecting this motor.
This connector must not be acces-
sible to the end user. It shall be
placed within a pelmet box or within
a housing in accordance to
AS/NZS 60335.1:2011 or
(BS) EN 60335-1:2012
Failure to do so could compromise
personal safety.
DO N OT REMOVE THIS LABEL
WARNING
ELE C TRIC A L H AZARD !
Power shall only be supplied to this
cable once male & female
connectors are correctly coupled.
Isolate power prior to connecting or
disconnecting this motor.
This connector must not be acces-
sible to the end user. It shall be
placed within a pelmet box or within
a housing in accordance to
AS/NZS 60335.1:2011 or
(BS) EN 60335-1:2012
Failure to do so could compromise
personal safety.
MOTOR POWER CORD LENGTH POWER NEUTRAL LIVE EARTH
MT01-1145-069017
240in. (6096mm) 120V AC 60Hz White Black Green
MT01-1145-069018
P1 button on motor head
P1 button on motor head
3
2
1
2.2
US Motor
2.1
EU/AU Motor
