RollSeal RS-600 Series User Manual

Part No 4801-5154 Rev 01-2017 RS-500/600 Series Doors Page 15
RS-600
Door
Height
B C
In. cm In. cm
7' (H)
84
213
108 274
7’ 6” (H)
90
229
114 290
8' (H)
96
244
120 305
9' (H)
108
274
132 335
10' (H)
120
305
144 366
11' (H)
132 335 156 396
12' (H)
144 366 168 427
10 RS-600 Series Door (Brother Motor)
See Section 7 for Ratings and Specifications.
Motor must be connected through Controller.

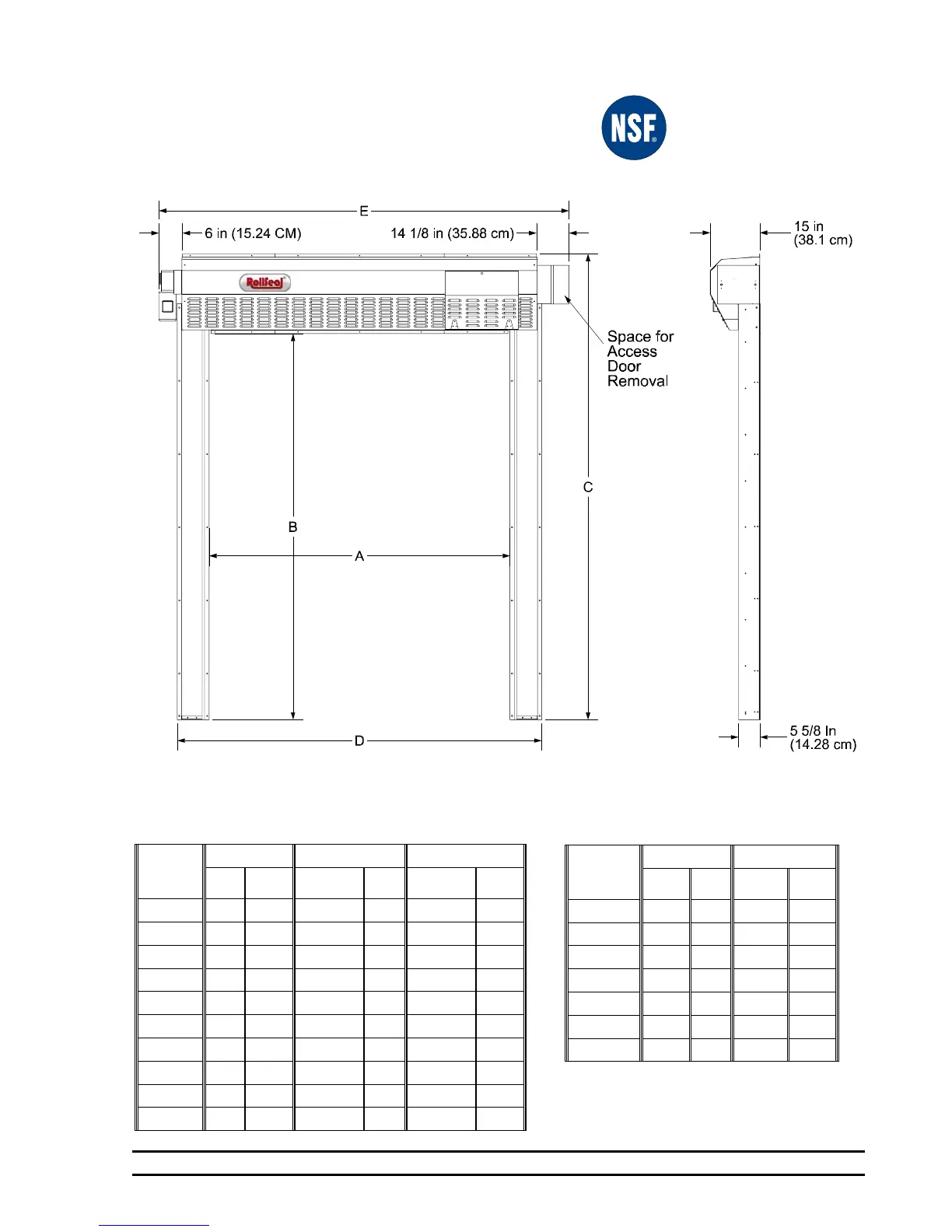

TABLE 2 RS-600 Door Standard Dimensions:
WIDTH Related Dimensions HEIGHT Related Dimensions
RS-600
Door
Width
A D E
In. cm In. cm In. cm
4' (W)
48
122
64 3/8
164
82 5/16
209
5' (W)
60
152
76 3/8
194
94 5/16
240
6' (W)
72
183
88 3/8
225
106 5/16
270
6’ 6” (W)
78
198
94 3/8
240
112 5/16
286
7' (W)
84
213
100 3/8
255
118 5/16
301
8' (W)
96
244
112 3/8
285
130 5/16
331
9' (W)
108
274
124 3/8
316
142 5/16
362
10' (W)
120
305
136 3/8
346
154 5/16
392
11' (W)
132
335
148 3/8
377
166 5/16 423
12' (W)
144
366
160 3/8
407
178 5/16
453
NSF Certified Doors are equipped
with Left mount Brother operators,
Smart Controller, and Magnetic
Track Sealing System
