Part No 4801-5154 Rev 01-2017 RS-500/600 Series Doors Page 41
24.2 Operation of RS-500/600 Series Door with
Optional Freezer Kit
1. Depress “Open” switch button mounted on the wall.
Door curtain will roll up to 'open' position and find “HOME”
position and drop some to the set upper limit. If door was wired for “timer” it will count down from set
delay and close on its own. If not on wired on “timed” function proceed to step 2 to close.
2. Depress “Close” switch button. Door curtain will roll down to 'closed' position of lower limit and stay
3. Depress button to open or close door as desired.
4. Open and close the door a few times to test door operation and remove any wrinkles in the door curtain.
*Refer to the 4801-5156 SC-325 and SC-650 product manual for additional smart controller information.
PROGRAM PARAMETERS
P1 - Close Time Delay (Seconds)
P2 - Acceleration Range
P3 - Deceleration Range
P4 - Door Interlock
0 – Off or Optional Door Motion
Light(s)/Buzzer(s)
1 - Sequential Interlock
2 - Passive Interlock
3 – Freezer Mode - No Interlock
P7 - Refresh Door Limits
P10 - Service Cycle Reset
0 - No
1 - Yes
P11 - Service Reminder (Cycles x 100)
P12 - Input Status
PS1 - Set Limits?
PS2 - Set Open Limit
PS3 - Set Close Limit
25 Limit Switches

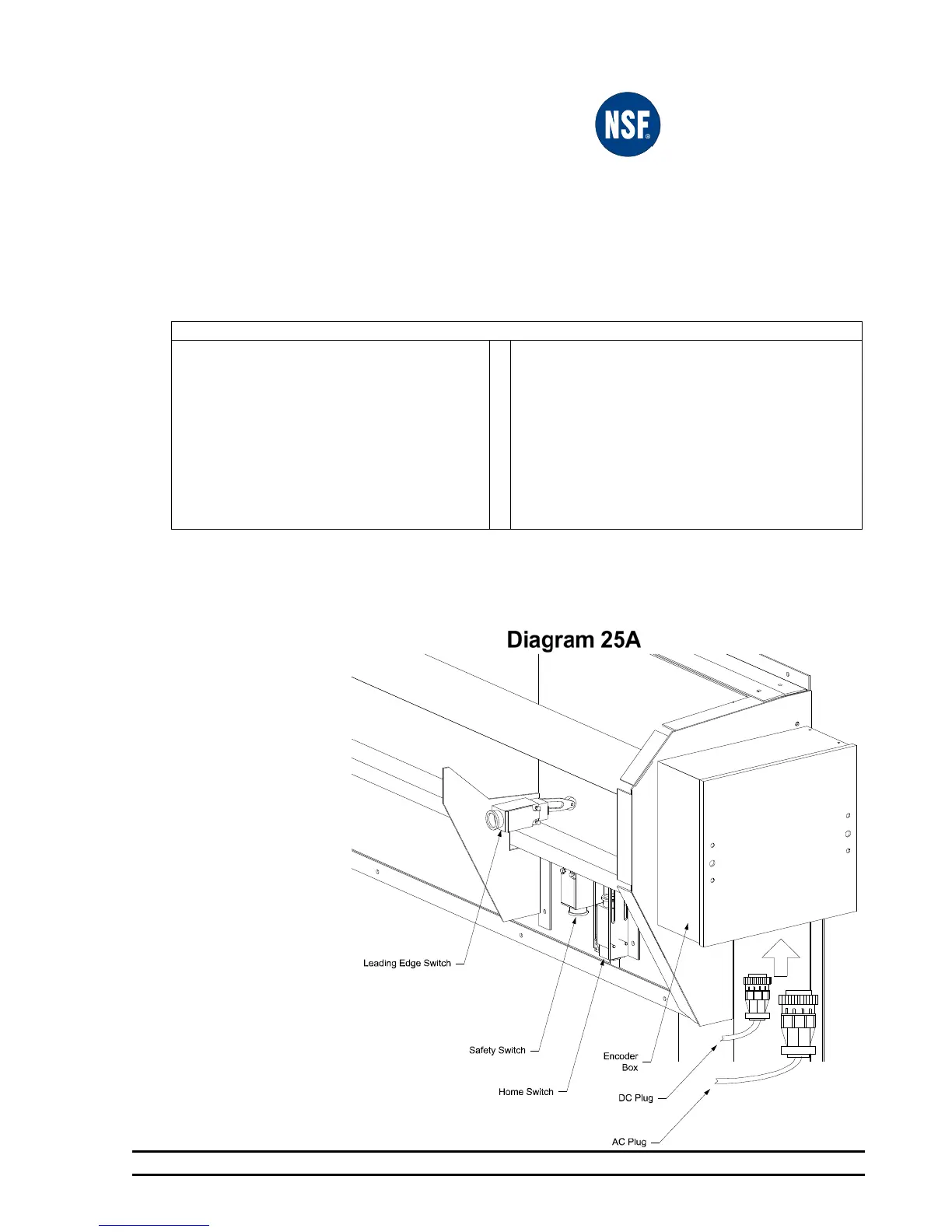

There are three limit switches located within the horizontal member mechanism. See Diagram 25A. These
switches are attached to levers that contact the curtain.
The Home Switch
establishes the 'open'
reference position of the
door curtain. This creates
the zero reference
position, from which the
encoder counts the
position of the door.
The Safety Switch is a fail-
safe switch that stops the
curtain in the unlikely
event of malfunction of
the home switch.
The Leading Edge Switch is
a switch that stops the
curtain in the event of a
doorway obstruction.
NSF Certified Doors are equipped
with Left mount Brother operators,
Smart Controller, and Magnetic
Track Sealing System
