Page 16 RS-500/600 Series Doors Part No 4801-5154 Rev 01-2017
RS-600
Door
Height
B C
In. cm In. cm
7' (H)
84
213
104 11/16 266
7’ 6” (H)
90
229
110 11/16 281
8' (H)
96
244
116 11/16 296
9' (H)
108
274
128 11/16 327
10' (H)
120
305
140 11/16 357
11’ (H)
132
335
152 11/16 388
12’ (H)
144
366
164 11/16 418
11 RS-500 Series Door with Optional
Condensation Management System
See Section 7 for Ratings and Specifications.
Motor must be connected through Controller.
WIDTH Related Dimensions HEIGHT Related Dimensions
RS-600
Door
Width
A D E
In. cm In. Cm In. cm
4' (W)
48
122
77 1/2
197
82 7/16
209
5' (W)
60
152
89 1/2
227
94 7/16
240
6' (W)
72
183
101 1/2
258
106 7/16
270
6’ 6” (W)
78
198
107 1/2
273
112 7/16
286
7' (W)
84
213
113 1/2
288
118 7/16
301
8' (W)
96
244
125 1/2
319
130 7/16
331
9' (W)
108
274
137 1/2
349
142 7/16
362
10' (W)
120
305
149 1/2
380
154 7/16
392
11' (W)
132
335
161 1/2
410
166 7/16 423
12' (W)
144
366
173 1/2
441
178 7/16
453

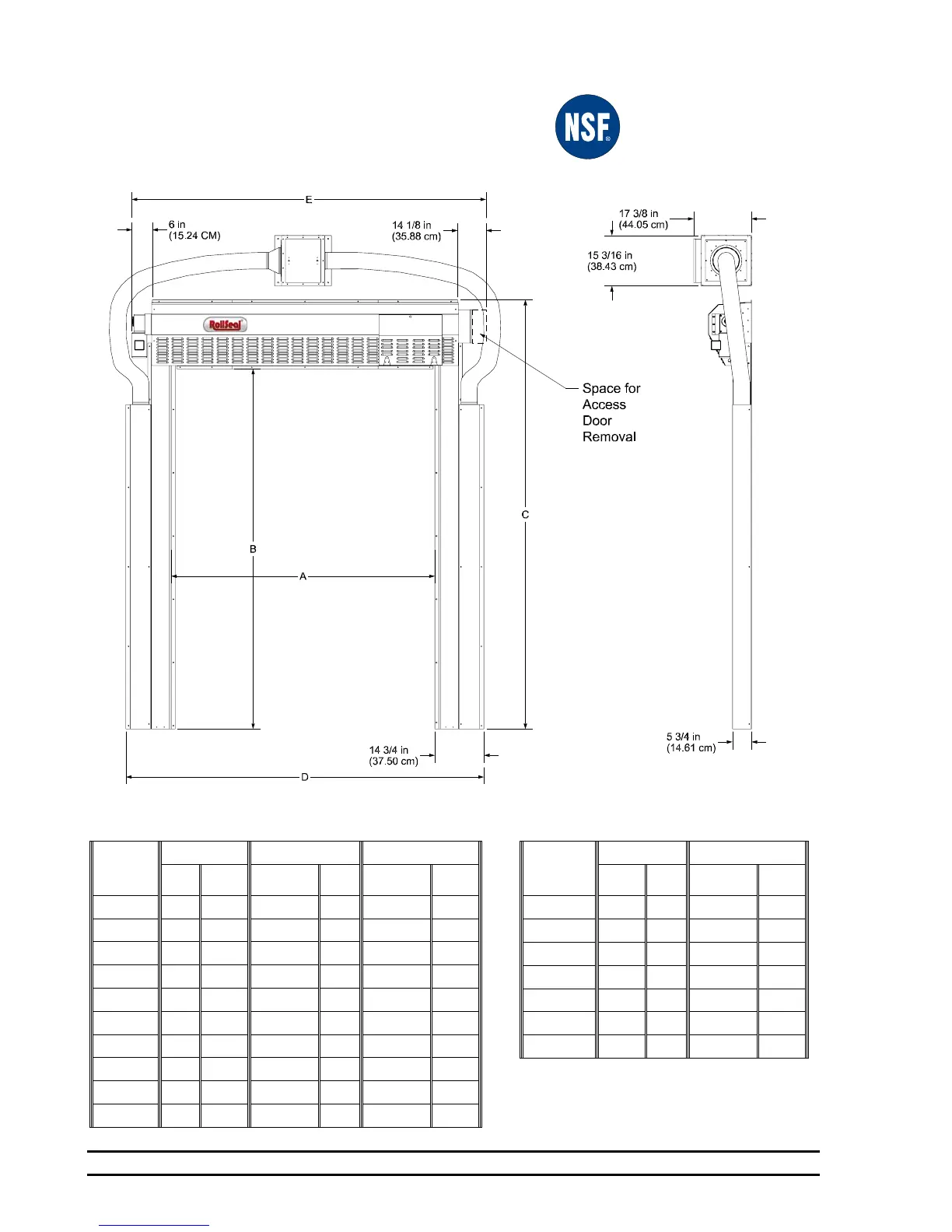

TABLE 3 RS-500 Door with Freezer Kit
NSF Certified Doors are equipped
with Left mount Brother operators,
Smart Controller, and Magnetic
Track Sealing System
To Next Page
