RollSeal RS-600 Series User Manual

Part No 4801-5154 Rev 01-2017 RS-500/600 Series Doors Page 17
RS-600
Door
Height
B C
In. cm In. cm
7' (H)
84
213
108 274
7’ 6” (H)
90
229
114 290
8' (H)
96
244
120 305
9' (H)
108
274
132 335
10' (H)
120
305
144 366
11’ (H)
132
335
156 396
12’ (H)
144
366
168 427

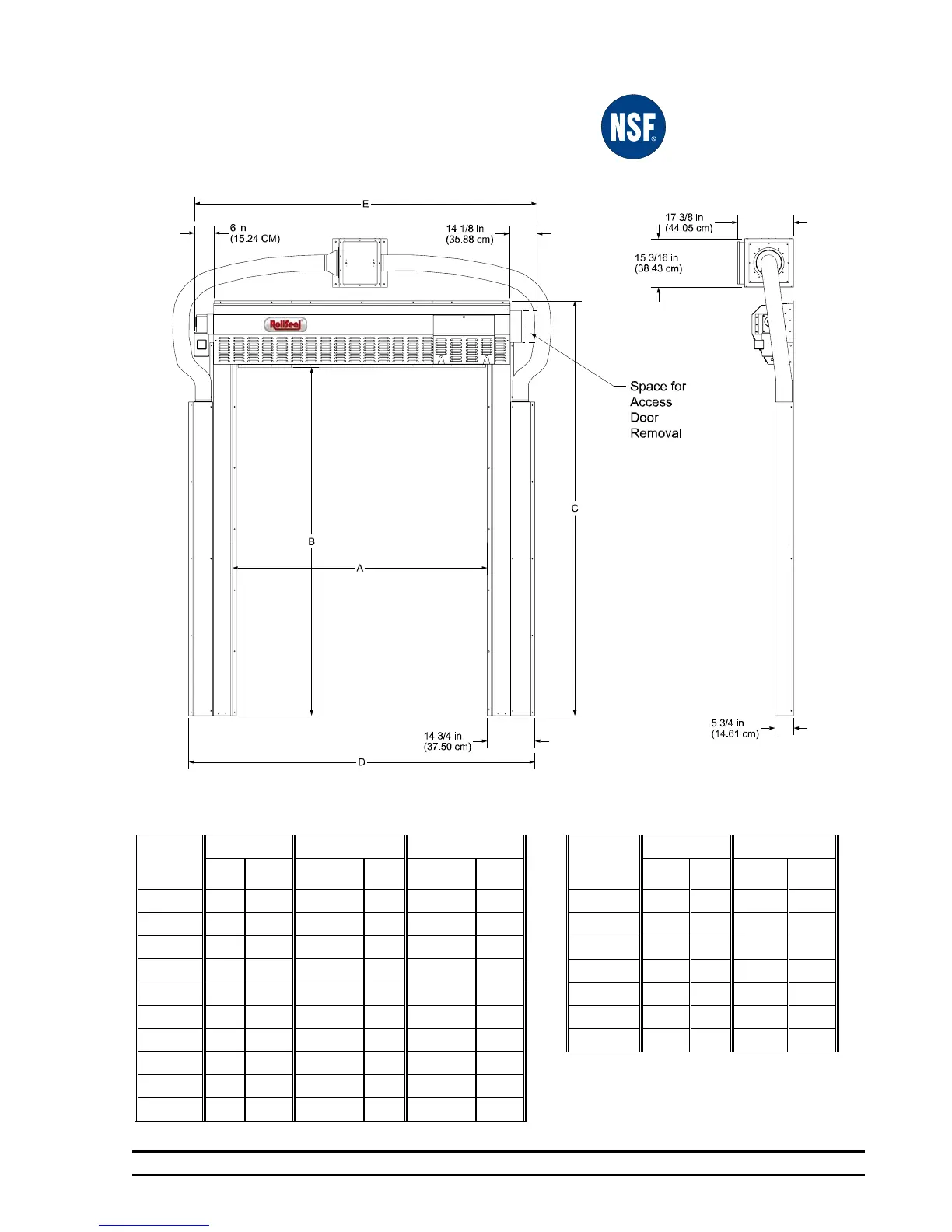

12 RS-600 Series Door with Optional
Condensation Management System
See Section 7 for Ratings and Specifications.
Motor must be connected through Controller.
TABLE 4 RS-600 Door with Freezer Kit Dimensions:
WIDTH Related Dimensions HEIGHT Related Dimensions
RS-600
Door
Width
A D E
In. cm In. Cm In. cm
4' (W)
48
122
77 1/2
197
82 7/16
209
5' (W)
60
152
89 1/2
227
94 7/16
240
6' (W)
72
183
101 1/2
258
106 7/16
270
6’ 6” (W)
78
198
107 1/2
273
112 7/16
286
7' (W)
84
213
113 1/2
288
118 7/16
301
8' (W)
96
244
125 1/2
319
130 7/16
331
9' (W)
108
274
137 1/2
349
142 7/16
362
10' (W)
120
305
149 1/2
380
154 7/16
392
11' (W)
132
335
161 1/2
410
166 7/16 423
12' (W)
144
366
173 1/2
441
178 7/16
453
NSF Certified Doors are equipped
with Left mount Brother operators,
Smart Controller, and Magnetic
Track Sealing System

RollSeal RS-600 Series Specifications

General

Brand	RollSeal
Model	RS-600 Series
Category	Garage Door Opener
Language	English
