Part No 4801-5154 Rev 01-2017 RS-500/600 Series Doors Page 21
13.6 Assembly of Tracks to the Head Unit

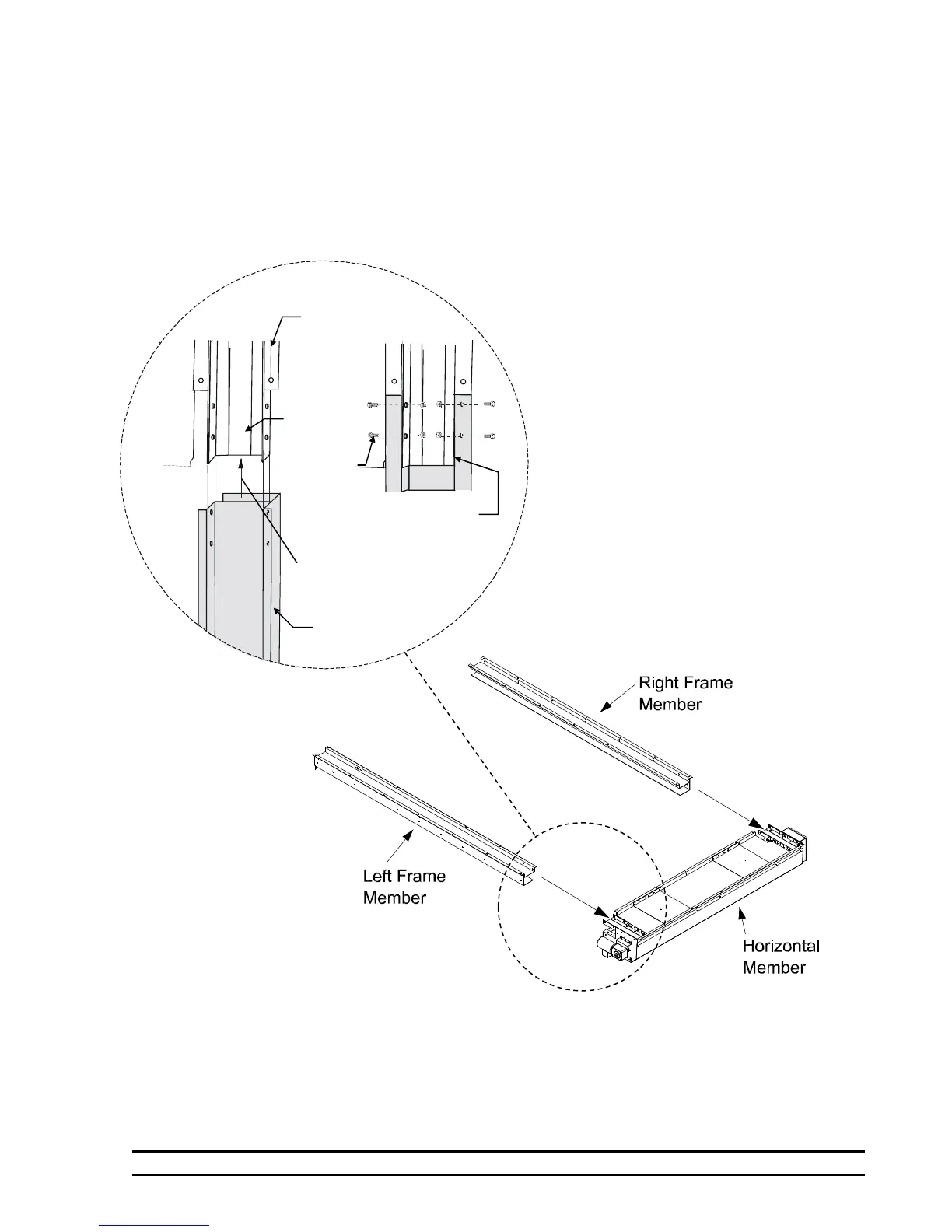

Arrange the horizontal member, left vertical member (left track), and right vertical member (right track) on
the floor in front of the clear opening as shown in Diagram 13D. The curtain side of the horizontal member
and each vertical member faces down.
Diagram 13D
A
B
Placement of Parts for Assembly
Lay left track, right track, and horizontal member
face down in front of the clear opening as shown.
End of
horizontal
Member
U-shaped
plate
Plate fits inside
vertical membe
Slide vertical member
over U-shaped plate.
Vertical
Member
Clear Opening
At this end of members
3/8" x 1"
Bolts & nuts
On each end of the horizontal member is a
U-shaped plate that fits inside each
vertical member. The U-shaped plate has
four bolt holes, two on the inside and two
on the outside flanges that match bolt
holes in the vertical member. See diagram
at left.
1. Align the vertical member with the
U-shaped metal plate at end of
horizontal member.
2. Slide the vertical member onto the
outside of the U-shaped metal plate of
the horizontal member as shown in A.
3. Insert bolts through bolt holes as shown
in B. Install nuts. Tighten bolts & nuts
securely.
