Part No 4801-5154 Rev 01-2017 RS-500/600 Series Doors Page 51
35 Removing and Replacing Floating Magnets or Velcro
NOTE: The door shown in the following illustrations may have different options and accessories than your
door. Removing and replacing the floating is the same for all RollSeal units.

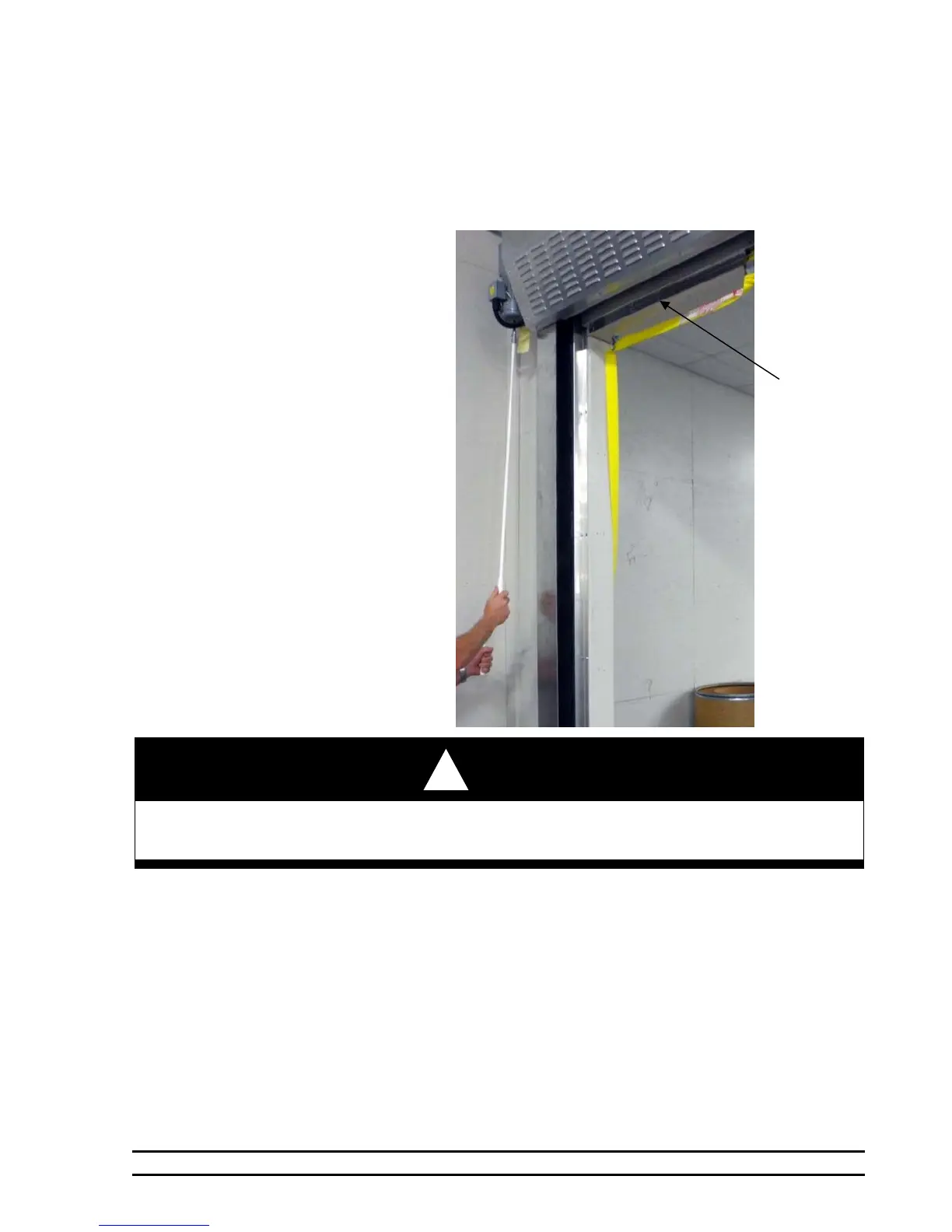

Diagram 35A
1. Turn off controller or remove power to
the door.
2. Open the door to its upper limit. It
will be necessary to raise the panel as
high as it will go into the head unit.
Refer to the appropriate Operator
Manual (4801-5156 RollSeal SC-325
& SC-650 Controller Manual or the
Manaras Installation and Instruction
Manual). This will make it easier for
you to remove and re-install the
“Floating Magnets or Velcro and PIM
Plate Assemblies” from the left and
right side tracks (Diagram 35A).
Warning!
Ensure power is turned “OFF” to prevent door movement while removing
PIM Plate Assembly and Floating!
Ensure
panel is
raised
into the
head unit.
!
To Next Page
