Page 52 RS-500/600 Series Doors Part No 4801-5154 Rev 01-2017
2. After you have raised the panel into the head unit, you can remove all of the PIM Plate nuts from both sides.
Then remove the PIM plate and floating assemblies from their associated tracks (Diagram 35B and Diagram
35C).
Note: NSF Certified doors are equipped with a black rubber boot that covers the
PIM bolts. Remove the black rubber boots to access the PIM nuts. Place
the boots in a secure location for they must be replaced onto the PIM bolts
after the Floating has been replaced.

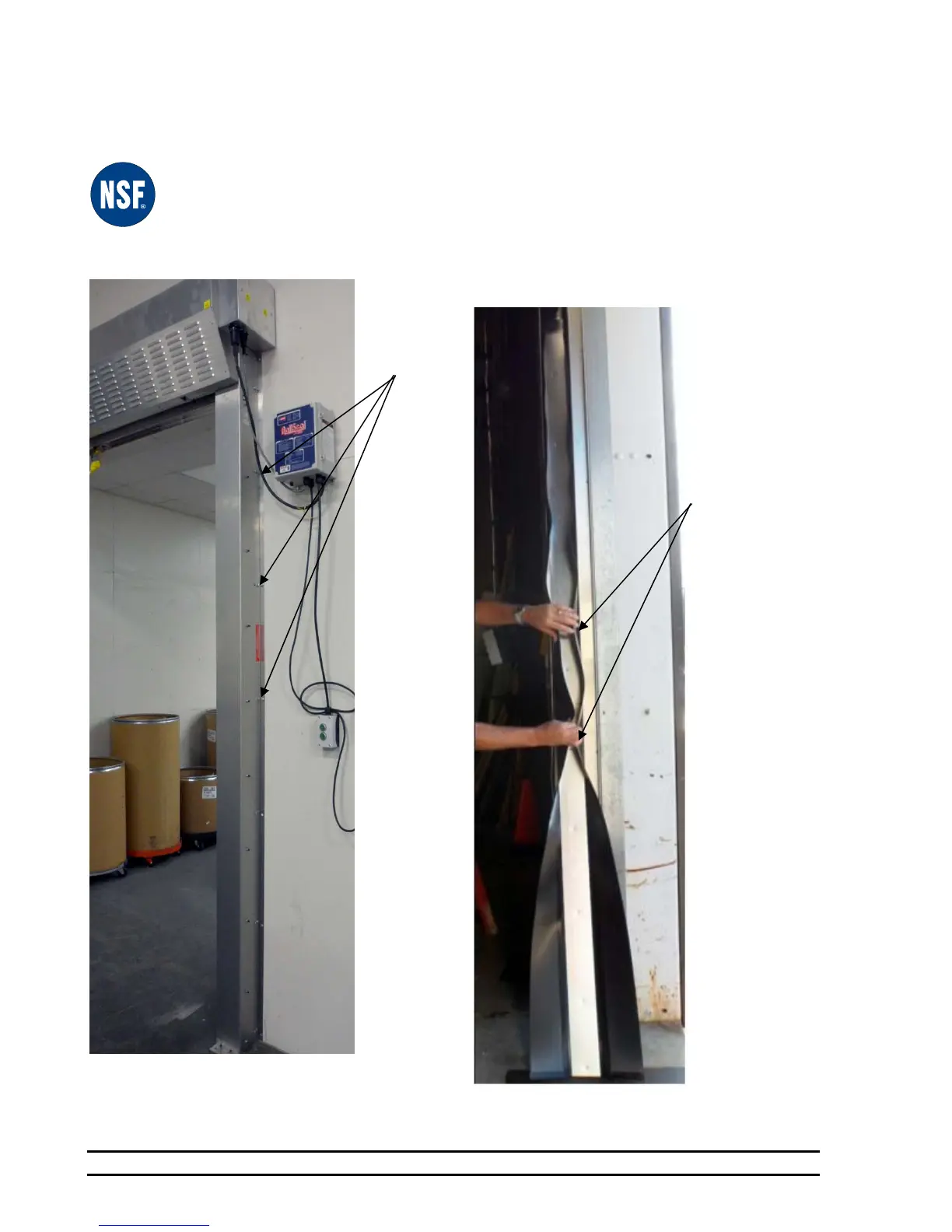

Diagram 35B
Diagram 35C
Squeeze the
floating
around the
PIM Plate and
pull the PIM
plate
assembly and
floating out
away from the
track
assembly.
Remove
all the PIM
nuts from
top to
bottom
