Part No 4801-5154 Rev 01-2017 RS-500/600 Series Doors Page 53
3. Lay the PIM plate assembly down on the floor and remove the old floating material from the PIM plate.
Pay particular attention to the top of the PIM plate assembly. You will notice the material, at the top, has
been cut at an angle. It will be necessary to re-install the new piece in the same arrangement as the one you
have removed (Diagram 35D and Diagram 35E). Get the new piece of floating material. Flip the new
piece upside down with the magnets or Velcro toward the floor. Align the pre-drilled holes of the material
with the PIM bolts on the PIM plate assembly. You might find it easier to start at one end with the first PIM
bolt, insert it, and then move to the other end slightly lifting the PIM plate in a bend to insert the PIM bolt
at that end (Diagram 35F). Lay the assembly back down on the floor flat. This will slightly pull the
material allowing the remaining holes to align properly. Proceed to insert the rest of the PIM bolts in their
proper holes. Repeat the same steps for installing the floating to PIM plate for the other side.

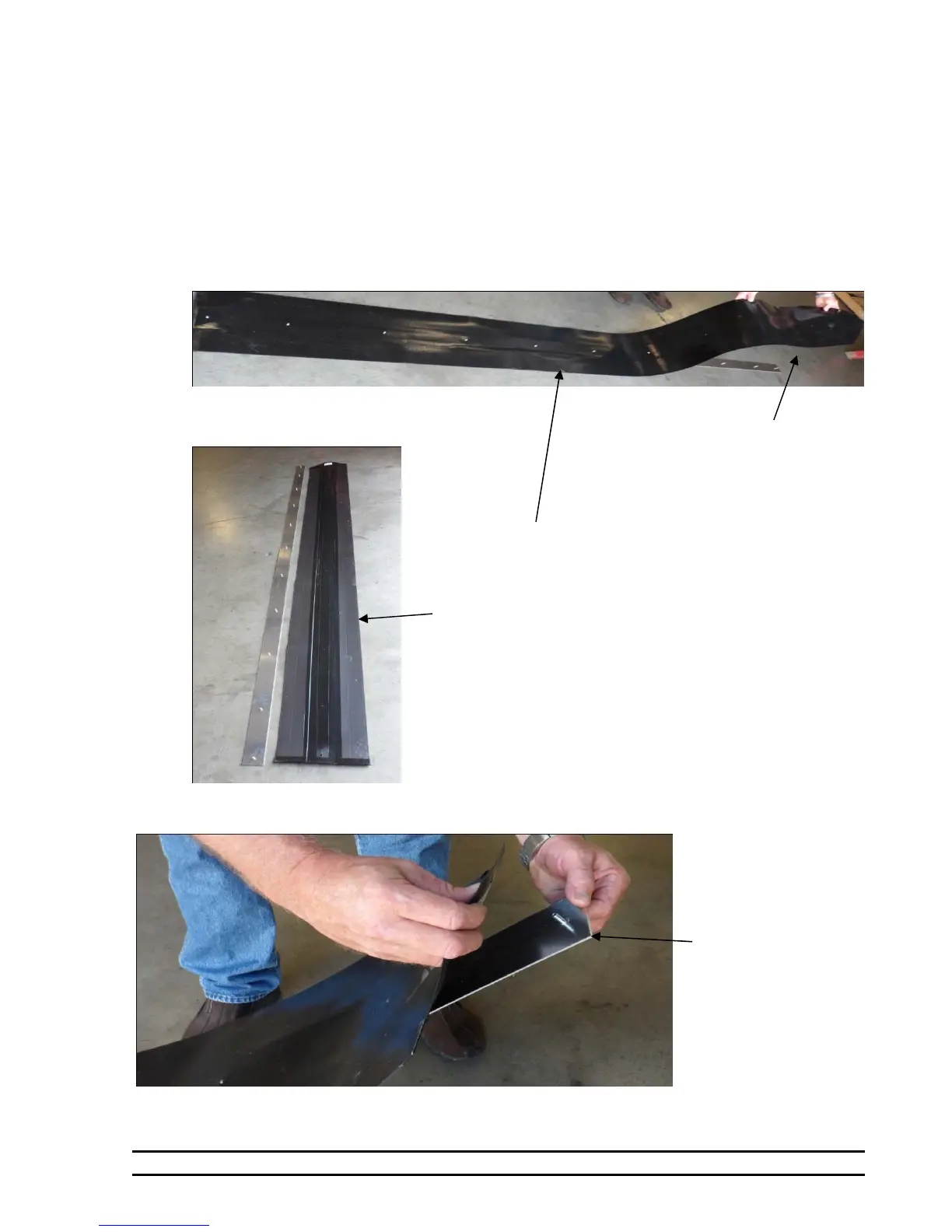

Diagram 35D
Diagram 35E
Diagram 35F
Lay the new floating next to the
PIM plate with top of floating
(Angled Cut) material to top of
PIM plate. Flip the floating
over the PIM Plate with
magnets or Velcro against the
floor then attach the floating
over the PIM Plate Bolts
Remove the “old” floating
and discard. Re-install the
“new” floating
Re-install the
“new” floating. It
may be necessary
to bend one end of
the PIM plate up to
attach onto the
end PIM bolt.
To Next Page
