EN
26
3. Installation

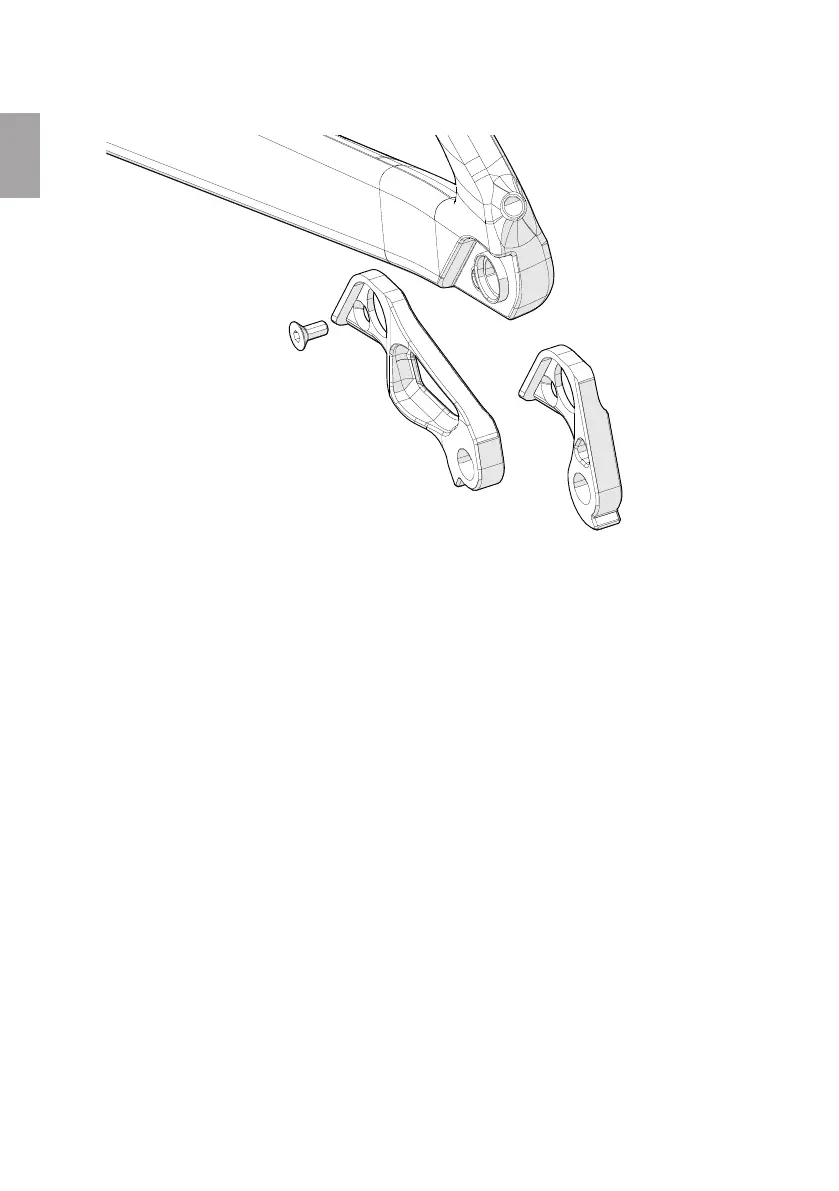

3.1 Mounting the derailleur hanger
The XLITE frame is supplied with two derailleur hangers, with the short
derailleur hanger fitted.
• short derailleur hanger: SRAM, Campagnolo, Shimano direct attachment
• long derailleur hanger: Shimano direct mount
Follow the steps below to change the derailleur hanger:
1. Unscrew the screw of the mounted derailleur hanger and remove the derailleur hanger.
2. Clean the mounting surface of the derailleur hanger and the dropout.
3. Fit the derailleur hanger form-fitting, screw in the bolt and tighten it with a torque of 2 Nm.
