3.5 Fitting the Di2 battery and routing the cables

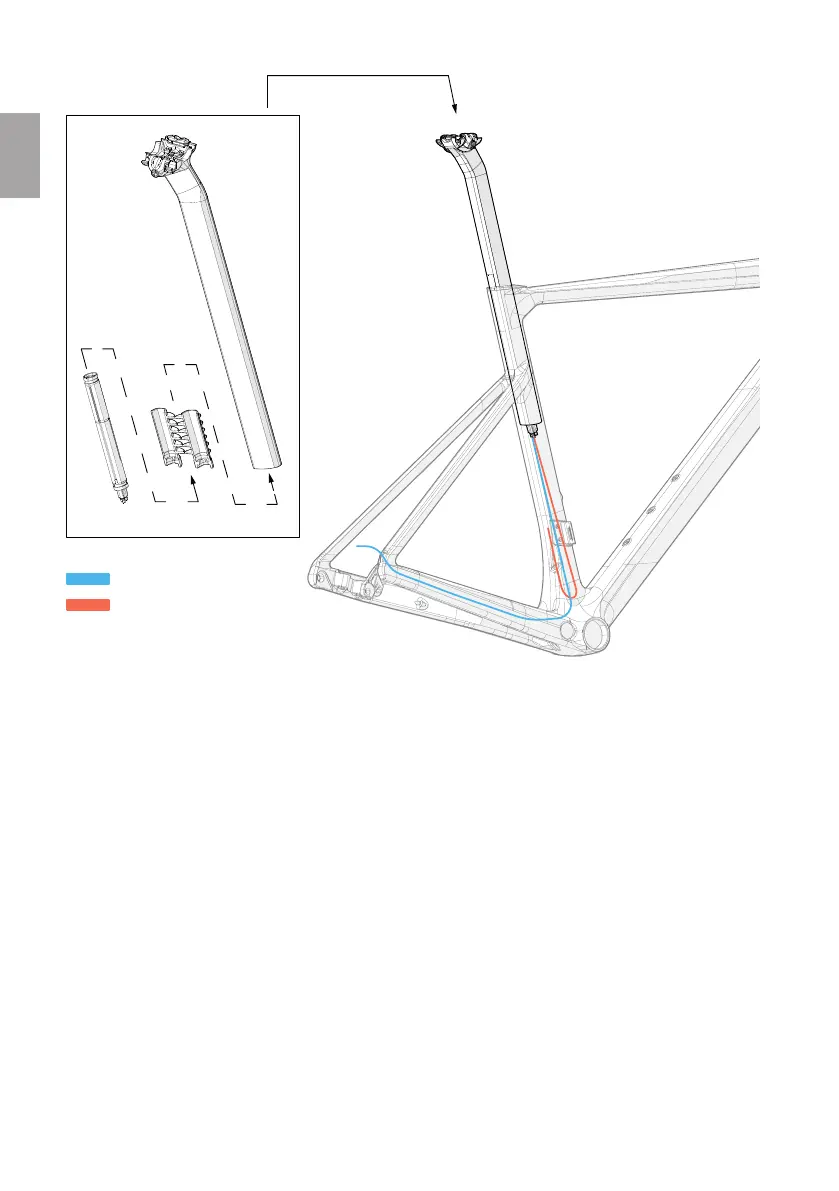

If a Shimano Di2 shifting is installed, the battery can be mounted in the seat post using the holder supplied. The cables

for the front derailleur and rear derailleur can be laid in the frame and routed out of the frame just before the connection

point.

Follow the Shimano instructions for plugging in the connectors and use the tools provided.

Front derailleur cable

Rear derailleur cable
