3.9 Adjusting the saddle angle

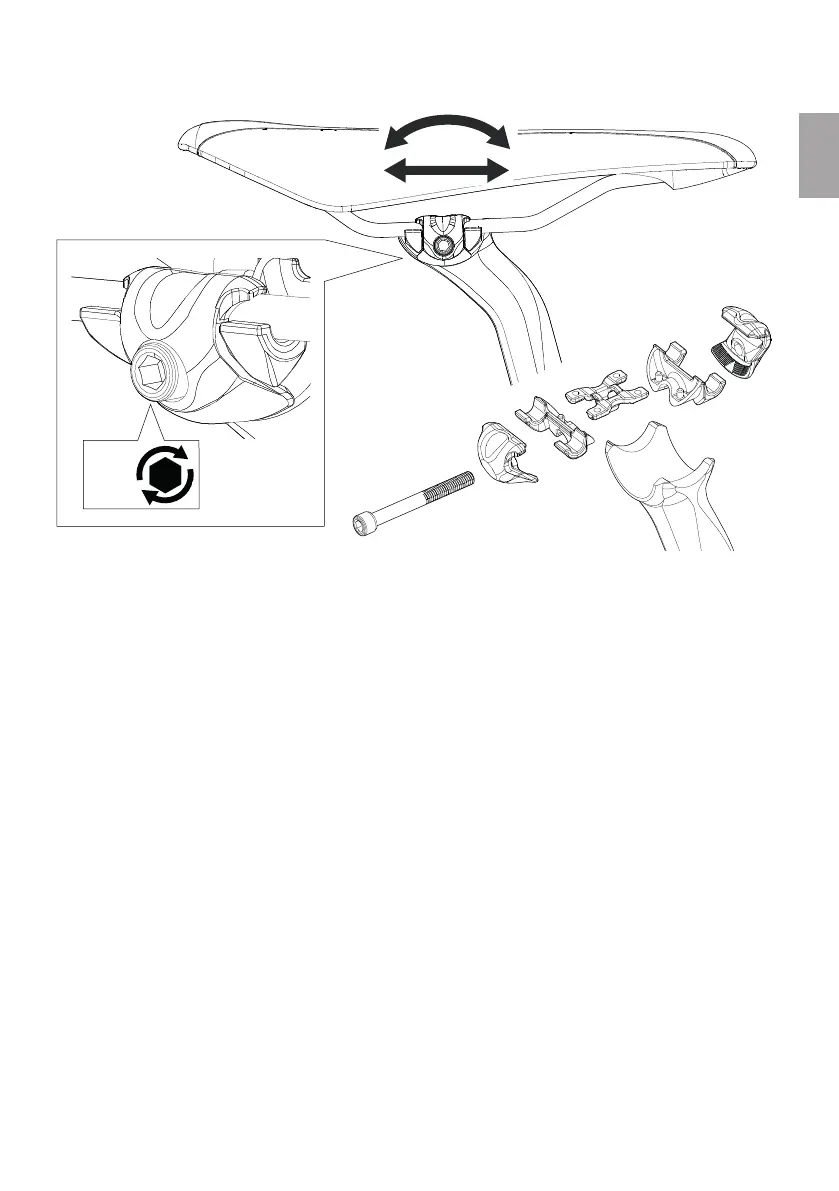

Adjusting the saddle angle on a saddle with one bolt clamp
5
12 Nm
1. Loosen the clamp bolt by about 2 turns. ATTENTION: Do not unscrew the bolt completely!
2. Adjust the position and the angle of the saddle according to your preferences.
3. Tighten the clamp bolt to a torque of 12 Nm.
