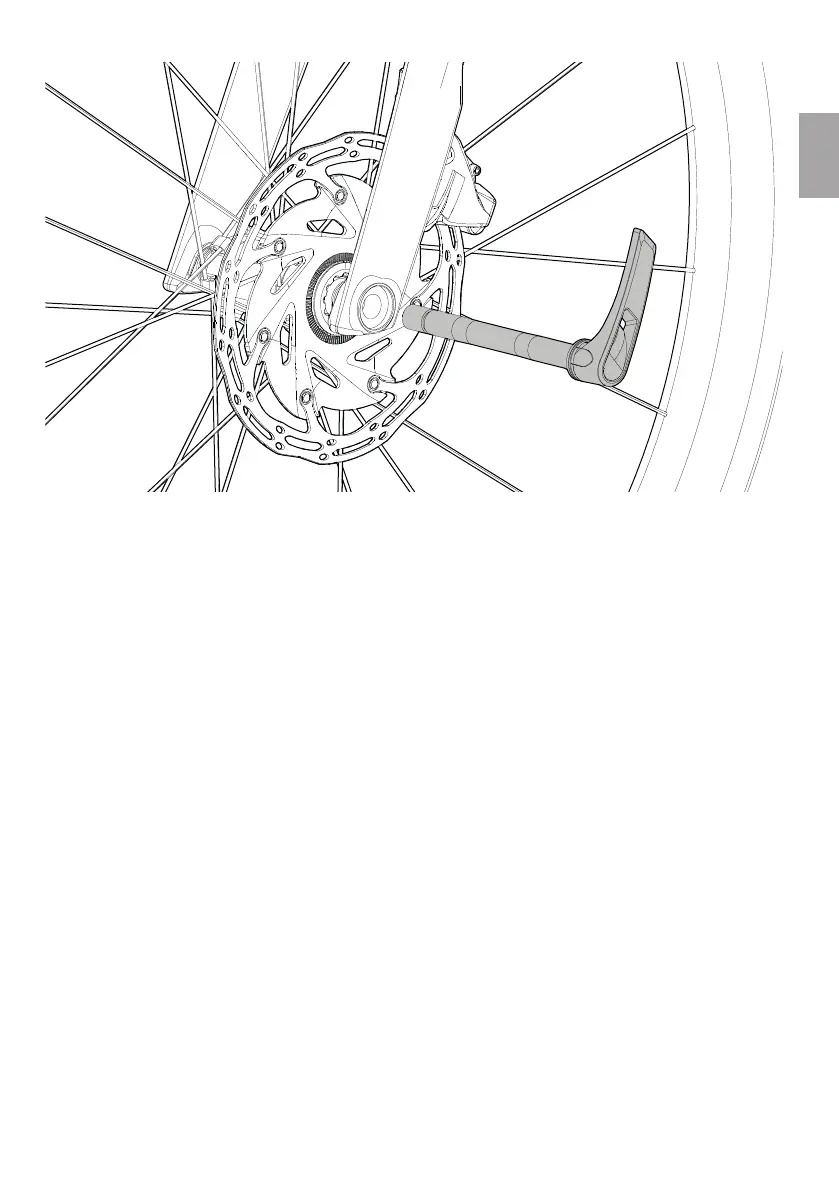

Installing the front wheel
1. Remove the thru axle from the fork.
2. Check whether there is an elastic band on the front brake lever. Remove the elastic band if present.
3. If present, remove the pad spacer that is fitted between the brake pads.
→ Keep the pad spacer for future transport of your bike.
4. Position the front wheel into the dropouts of the fork.
5. Slide the thru axle from the brake side through the fork dropouts and the hub of the wheel.
6. Completely thread the thru axle into the fork dropout.
7. Turn the lever clockwise and secure it by hand as tightly as possible to a minimum torque of 15 Nm.
8. Verify the secure fit of the front wheel.
