Rosemount 2051 - Transmitter Mounting Procedures; Process Mounting Applications

Quick Installation Guide
00825-0400-4101, Rev AA
March 2011
Rosemount 2051
3

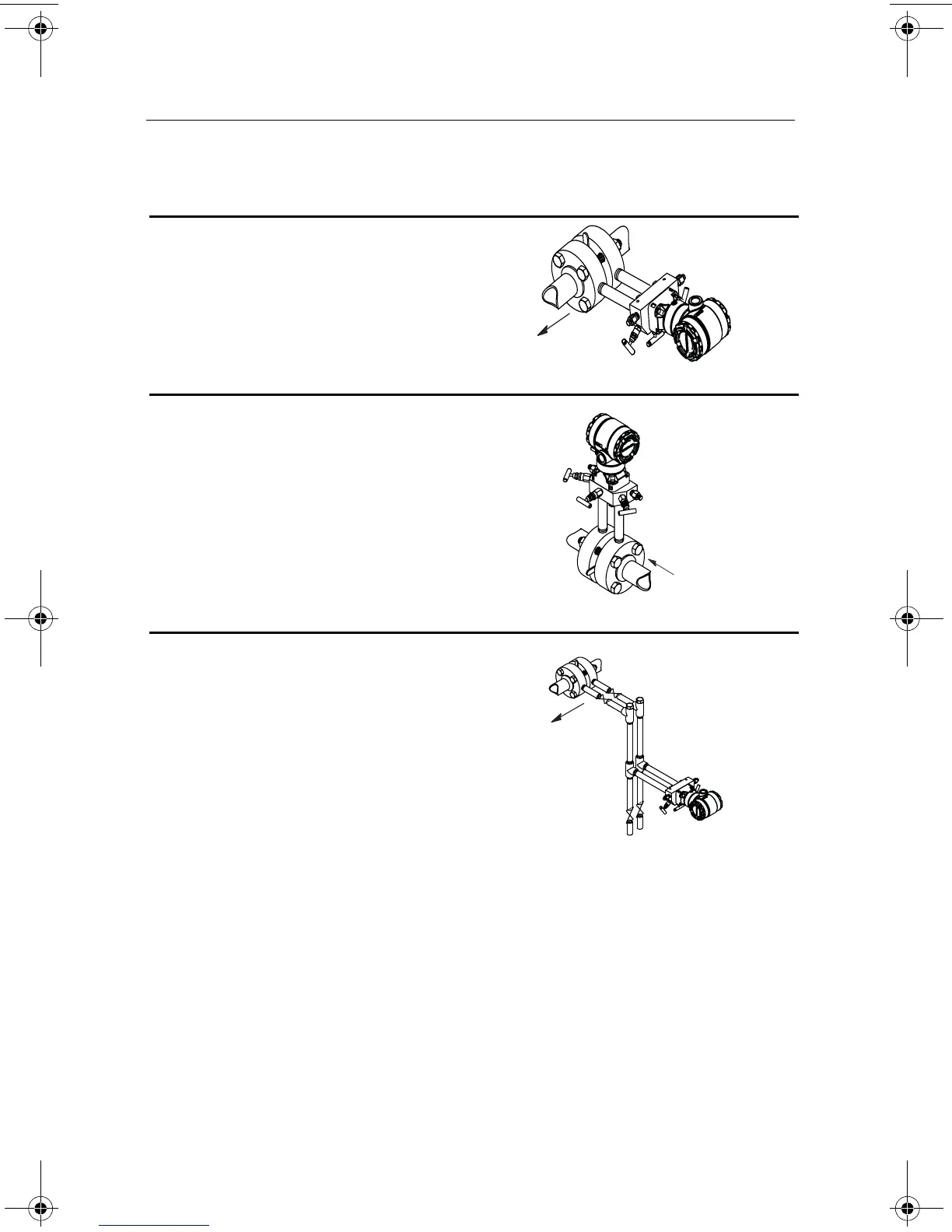

STEP 1: MOUNT THE TRANSMITTER
Liquid Applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so that the drain/vent
valves are oriented upward.
Gas Applications
1. Place taps in the top or
side of the line.
2. Mount beside or above the taps.
Steam Applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
F
lo
w
F
lo
w
F
lo
w
